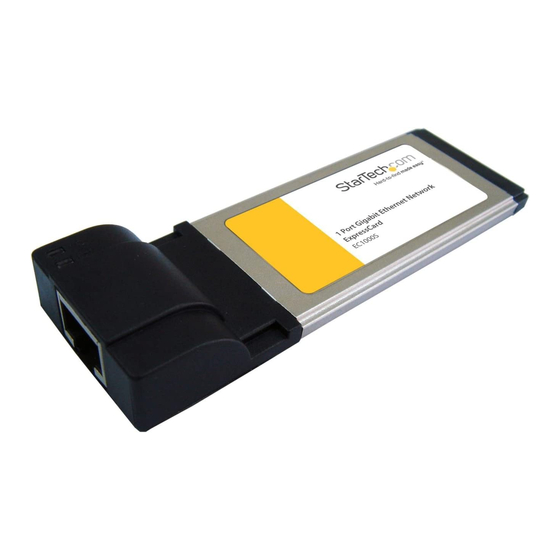

1 Port Gigabit Ethernet
Network ExpressCard
EC1000S
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/25/2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com EC1000S
Summary of Contents for StarTech.com EC1000S
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/25/2012...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation................................2 Hardware Installation ..........................2 Driver Installation ............................2 Verifying Installation ..........................3 Specifications ..............................4 Technical Support ............................5 Warranty Information ............................5 Instruction Manual... -
Page 4: Introduction
Introduction The EC1000S Gigabit Ethernet Network Adapter Card can be installed in a laptop ExpressCard port, for quick and hassle-free connections to a Gigabit Ethernet network. With support for data transfer rates up to 1000 Mbps, the Gigabit Ethernet Network Adapter card delivers the speed and performance needed for virtually any network-based tasks, including CAD, graphic design, digital audio authoring, and other demanding applications. -
Page 5: Installation
NOTE: Some ExpressCard/54 slots do not firmly hold an ExpressCard/34 card so a 34mm to 54mm stabilizer bracket may be necessary (StarTech.com ID: ECBRACKET). Connect the Ethernet cable from your router/switch/LAN drop to the RJ45 connector on the card. -
Page 6: Verifying Installation
Verifying Installation From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. Double-click on the “Network Adapters” option. A new “Realtek” Gigabit device should be listed under this category. -
Page 7: Specifications
Specifications Host Interface ExpressCard 1.0 Form Factor ExpressCard/34 (34mm) Chipset ID Realtek RTL8111DL Connectors 1 x RJ45 Ethernet female 1 x Gigabit Link/Activity LEDs 1 x 100 Mbps Link/Activity Maximum Data Transfer Rate 1000 Mbps IEEE802.3u, IEEE802.3ab, IEEE802.1Q, Supported Standards IEEE802.1p Operating Temperature 0°C ~ 50°C (32°F ~ 122°F) -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
