Summary of Contents for StarTech.com IES5100

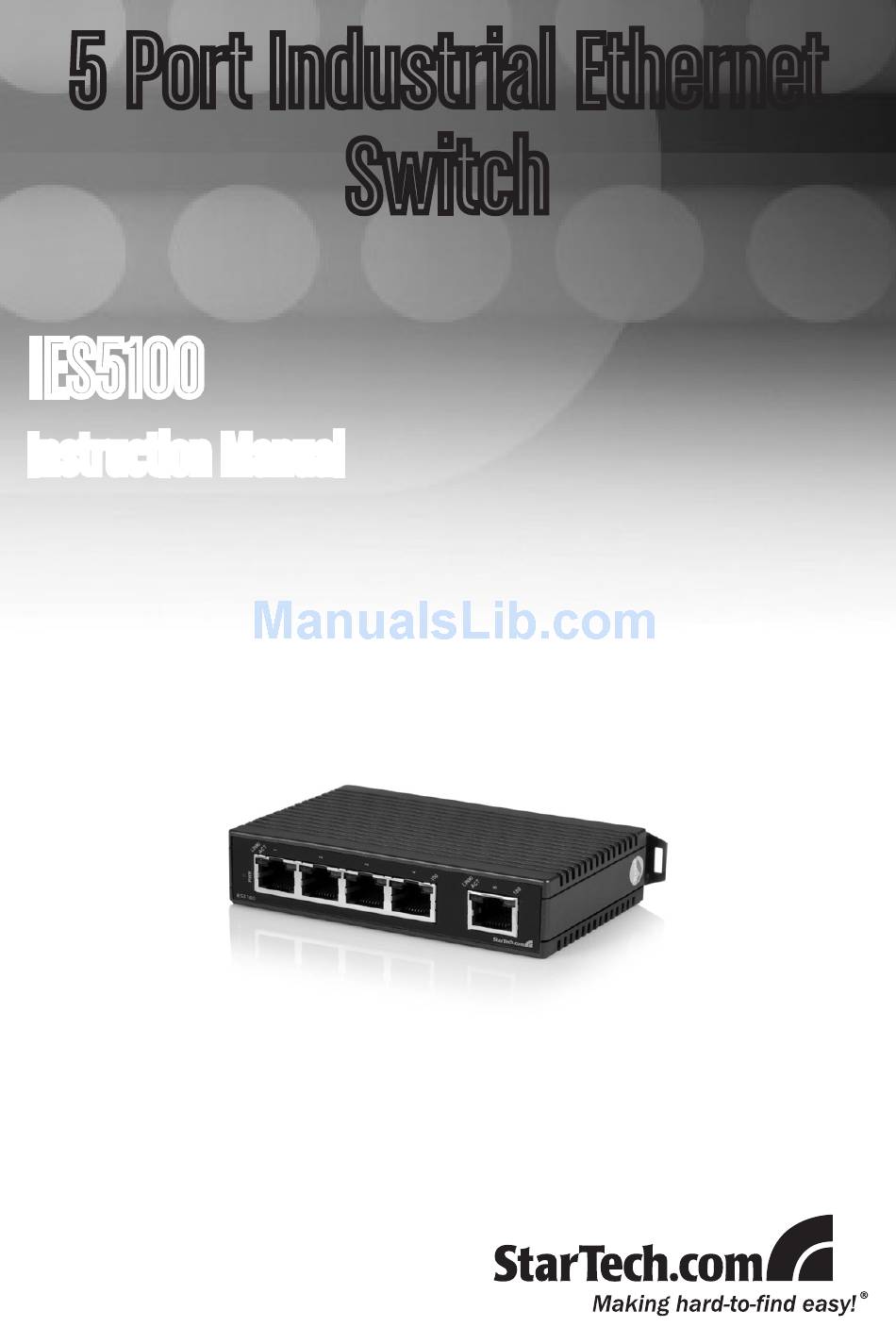

- Page 1 5 Port Industrial Ethernet Switch IES5100 Instruction Manual...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ..............1 Features..................1 Package Contents ..............1 Installation ............... 2 DIN Rail Mounting..............2 Connecting to Power ..............2 Network Connection ..............2 LED Displays ..............3 Specifications ..............4 Technical Support ............6 Warranty Information ............6... -
Page 4: Introduction

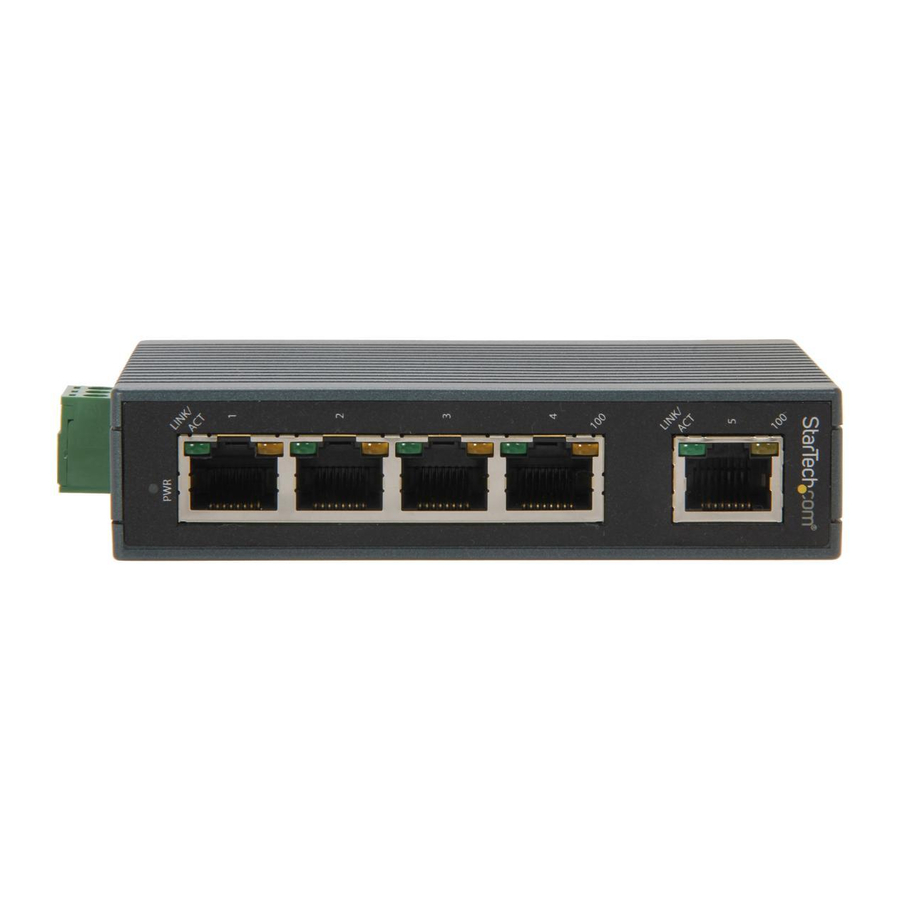

Instruction Manual Introduction Thank you for purchasing the StarTech.com IES5100 5-Port Industrial Ethernet Switch. This 5 port (unmanaged) Industrial Ethernet Switch is designed to operate in harsh environments, making it an ideal solution for factory floors, warehouses, and outdoor locations without temperature control. -
Page 5: Installation
Instruction Manual Installation DIN Rail Mounting Lower the IES5100 onto the DIN Rail from above using the free slot. Push the front of the switch onto the mount until a click is heard. Connecting to Power Connect the DC power cord to the terminal block connector on the rear of the IES5100. -
Page 6: Led Displays
Check to ensure that both devices are transmitting and receiving data by checking their LED displays. (See next section for details) LED Displays The IES5100 has LED indicators for each of the ports on the switch to show information on network connections. State... -
Page 7: Specifications
Instruction Manual Specifications IEEE 802.3 10Base-T Applicable Standards IEEE 802.3u 100Base-TX/FX Switching Method Store-and-Forward Forwarding Rate 10Base-T: 10 / 20Mbps half / full-duplex 100Base-TX/FX: 100 / 200Mbps half / full-duplex 148,80pps for 10Mbps Performance 148,810pps for 100Mbps Cable 2-pair UTP/STP Cat. 3, 4, 5 10Base-T: 2-pair UTP/STP Cat. - Page 8 Instruction Manual Operating Voltage & 0.2A @ 12VDC, 0.1A @ 24VDC, 0.05A @ 48VDC Max. Current Use Operating Temperature -10° C to 60° C (14° F to 140 ° F) Storage Temperature -25° C to 85° C (-13 °F to 185 °F) Humidity 5%-95% non-condensing UL60950-1, EN60950-1,...
-
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
