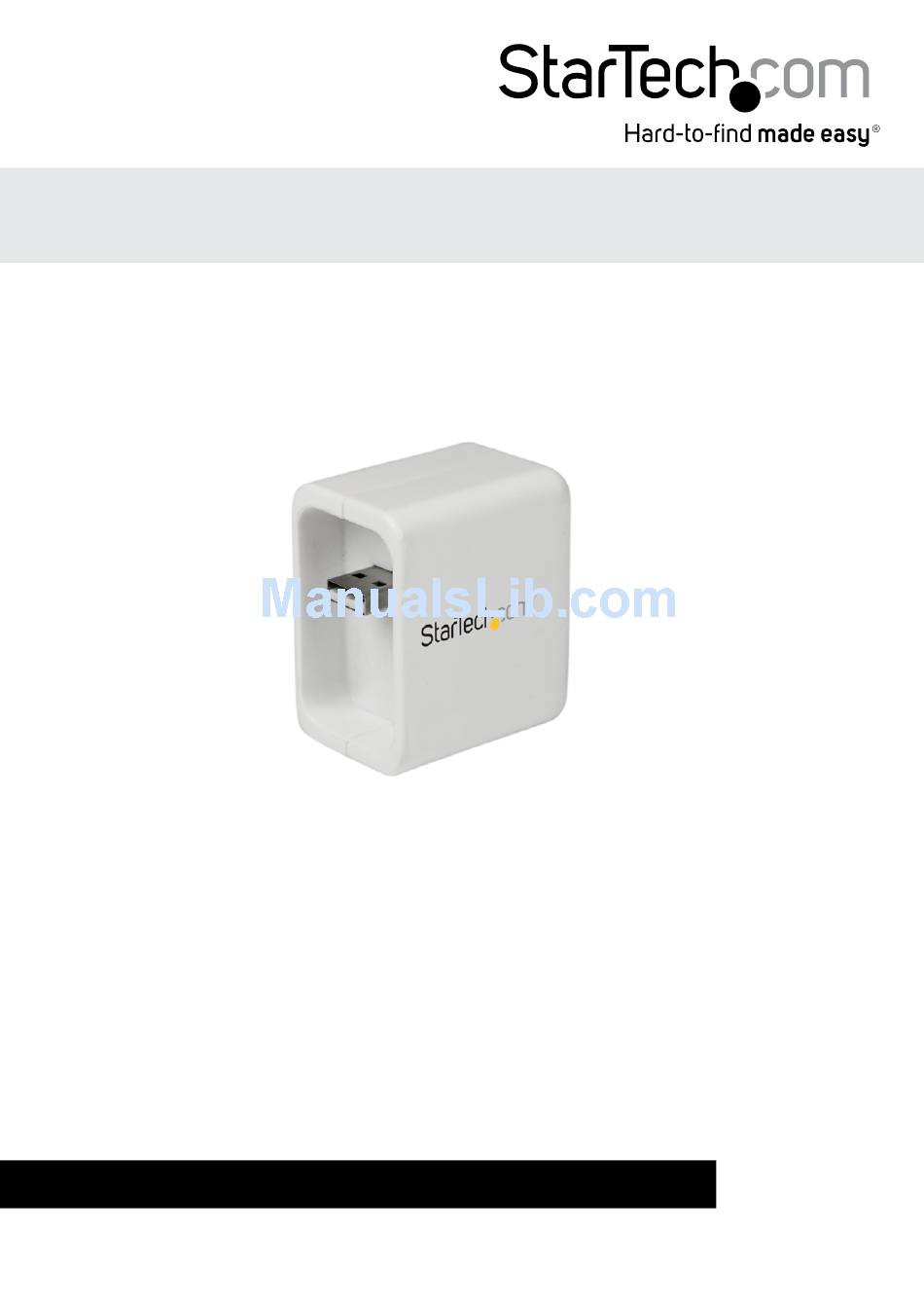

Wireless Travel Router for iPad® - USB
Powered with Charge Port
R150WN1X1T
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/08/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com R150WN1X1T
Summary of Contents for StarTech.com R150WN1X1T
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 04/08/2014...
- Page 2 FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC rules.
- Page 3 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 4: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Overview ..................1 LED Indicator .............................. 2 Reset Button ..............................2 Installation .....................2 Default Settings ............................2 Hardware Installation ..........................2 Web Interface ............................. 3 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 5: Introduction
Introduction Packaging Contents • 1 x Travel Router • 1 x USB Extension Cable • 1 x Instruction Manual System Requirements • iPad charger, or other USB power adapter / charge port • Wired network connection Product Overview Instruction Manual... -
Page 6: Led Indicator
LED Indicator Power (Green) The AP is powered on Wifi (Red) Wifi is operational Reset Button In order to reset the device to factory defaults: 1. Ensure the AP is connected to a power source. 2. Press and hold the reset button for 3 seconds (the red Wifi LED will turn off ), then release. -
Page 7: Web Interface
1. Open your desired web browser and enter http://10.10.1.1/ into the address bar. 2. Select the Operation Mode that fits your application (default: Gateway), then click Next. 3. If you would like to change the default IP address of the R150WN1X1T device, enter a new IP here, or click Next. Instruction Manual... - Page 8 4. Select your WAN interface setting such as DHCP (default), PPPoE, PPTP or L2TP, then click Next. 5. Configure your Wi-Fi settings as desired, then click Next. 6. Choose your desired encryption and create a wireless key for secured access, then click Next.
- Page 9 7. To restrict access to the web interface of your AP, it is also recommended to configure a password, which can be done by selecting Management, then Password from the left column of the web page. Instruction Manual...
-
Page 10: Specifications
Specifications Antenna Configuration 1x1:1(TxR:S) IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Supported Standards IEEE 802.3, IEEE 802.3u 1 x USB A (4 pin) Female External Ports 1 x RJ-45 Female Internal Ports 1 x USB A (4 pin) Male Max. Data Transfer Rate 150 Mbps Wireless Frequencies 2.4 ~ 2.4835 GHz... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
