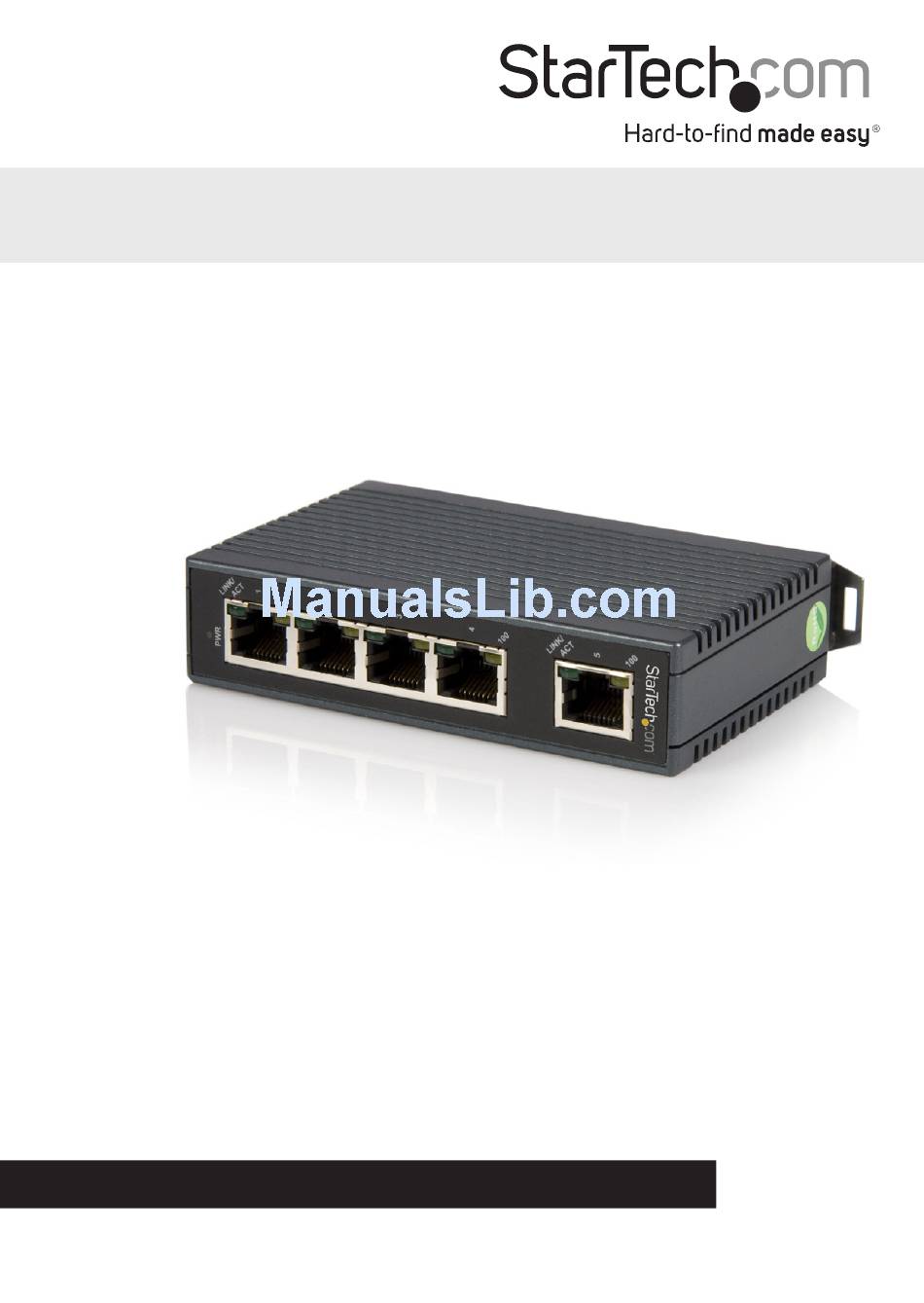

Instruction Manual
5 Port Unmanaged Industrial Ethernet Switch
IES5100
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/24/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com IES5100
Summary of Contents for StarTech.com IES5100
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/24/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 DIN Rail Mounting............................. 2 Connecting to Power ..........................2 Network Connection ..........................3 LED Displays ..............................3 Specifications ..................4 Technical Support ..................5 Warranty Information ................5 Instruction Manual... -
Page 4: Introduction
Introduction The IES5100 5 Port Unmanaged Industrial Ethernet Switch (DIN-Rail Mountable) offers five 10/100 Ethernet switching ports and is designed to operate in harsh environments, making it an ideal solution for factory floors, warehouses, and outdoor locations without temperature control. -
Page 5: Installation
Installation DIN Rail Mounting 1. Hook the top, fixed DIN rail bracket on the rear of the Ethernet Switch to the top edge of the DIN rail. 2. Push the lower portion of the Ethernet Switch back against the DIN rail, which will cause the bottom, spring-loaded DIN clip to snap in place. -
Page 6: Network Connection
Network Connection 1. Ensure that both the IES5100 and any devices that are to be connected to it are powered off. 2. Prepare the necessary cabling for each device that is to be attached to the IES5100. Use the following chart as reference for cabling types: Port Speed Max. -
Page 7: Specifications
Specifications Number of Ports 5 x RJ45 Ethernet female Connectors 1 x 3-wire Terminal Block 1 x Power LEDs 1 x Link/Activity (per port) 1 x Link Speed (per port) Switching Method Store-and-Forward Supported Standards IEEE 802.3, IEEE 802.3u Network Link Speeds 10/100 Mbps Auto MDIX Full Duplex... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
