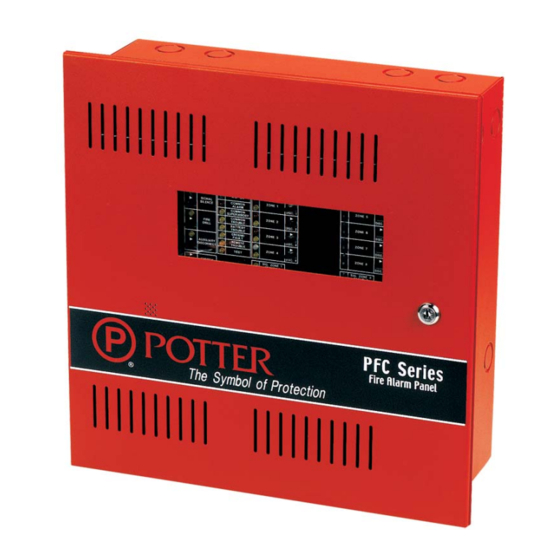

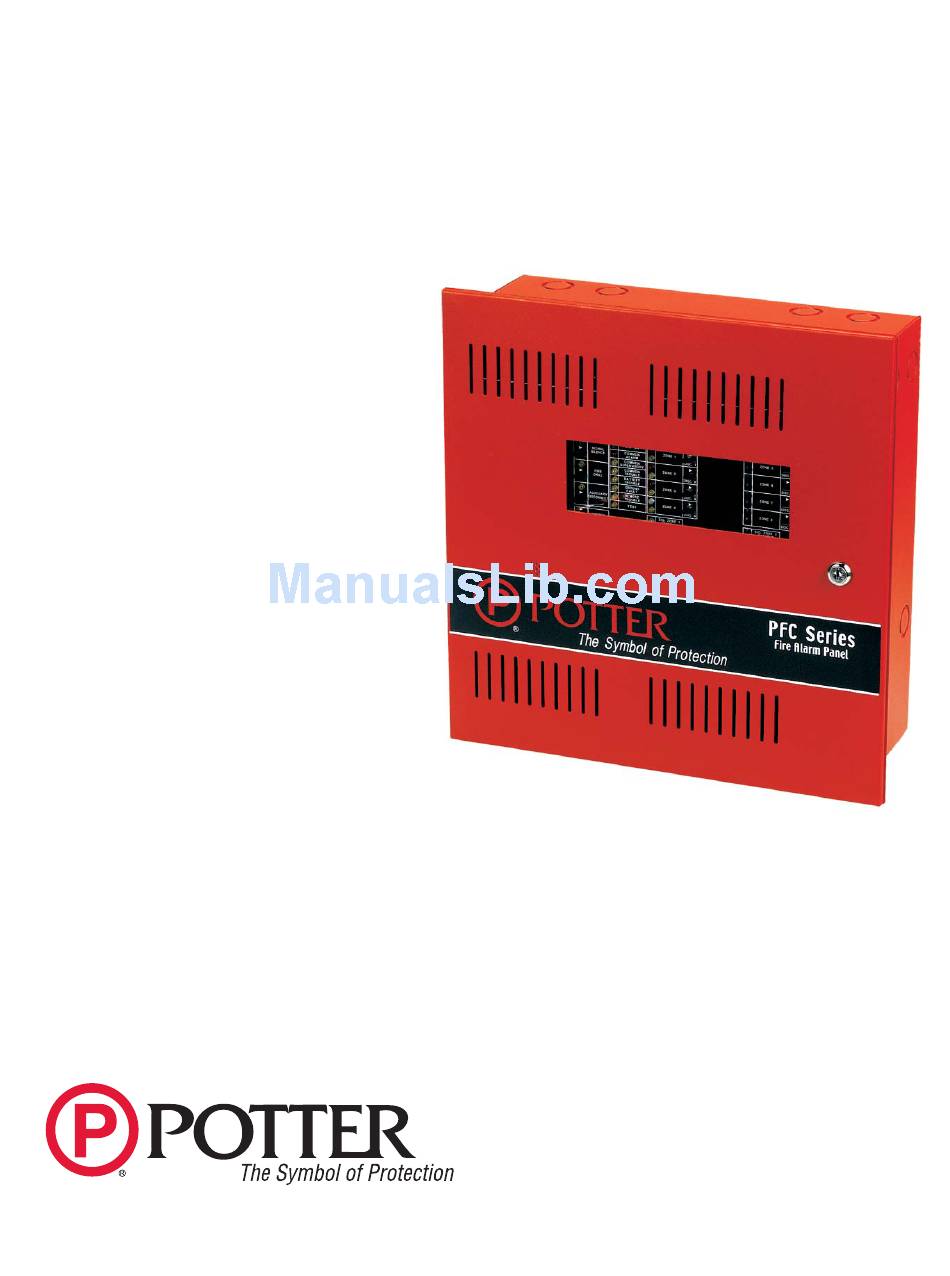

PFC-5000 Series
Installation, Operation, and
Instruction Manual
4 or 8 Zone
Fire Alarm
Control Panel
(All specifi cations subject to revision.)
PFC-5004E
POTTER ELECTRIC SIGNAL COMPANY, LLC
Manual #5403546-E
St. Louis, MO
10/09
(866) 956-1211 • (314) 595-6900 • FAX (314) 595-6999
www.pottersignal.com
Advertisement
Table of Contents
Related Manuals for Potter PFC-5000 Series
Summary of Contents for Potter PFC-5000 Series
-
Page 1: Fire Alarm
Installation, Operation, and Instruction Manual 4 or 8 Zone Fire Alarm Control Panel (All specifi cations subject to revision.) PFC-5004E POTTER ELECTRIC SIGNAL COMPANY, LLC Manual #5403546-E St. Louis, MO 10/09 (866) 956-1211 • (314) 595-6900 • FAX (314) 595-6999 www.pottersignal.com... -
Page 2: Table Of Contents
List of Figures and Tables Figures Figure 1: PFC-5002 and PFC-5004 Enclosure Installation and Dimensions ........5 Figure 2: PFC-5004E Enclosure Installation and Dimensions ............6 Figure 3: PFC-5002 and PFC-5004 Module Mounting Locations ............7 Figure 4: PFC-5004E Module Mounting Locations ................8 Figure 5: Main Fire Alarm Module ....................9 Figure 6: ZA-42 Zone Adder Module ....................10 Figure 7: ARM-4 or ARM-8 Relay Adder Modle (Zone Operated) ..........10... - Page 3 Table of Contents Introduction ..............................1 About this Manual ..........................1 About the PFC-5000 ..........................1 Technical Support ..........................1 Document Conventions ..........................2 Circuits and Zones ..........................2 Wiring Styles ............................2 Circuit Adder Modules ........................4 Auxiliary Models ..........................4 PFC-5000 Accessories ........................4 Mechanical Installation and Dimensions ....................5 Modules Mounting Locations ........................7 Module Settings ............................9 Main Fire Alarm Module ........................9...
- Page 4 Appendix B: Remote Annunciators ......................36 Appendix C: Module Specifi cations And Features ...................37 Appendix D: Power Supply & Battery Calculations ................39 WARRANTY INFORMATION ........................40 ...
-
Page 5: Introduction
About the PFC-5000 Potter’s PFC-5000 Fire Alarm Control Panels provide 2, 4, or 8 supervised Class B (ULI Style B) Initiating Circuits, or 1,2 or 4 supervised Class A (ULI Style D) Initiating Circuits, and 2 or 4 supervised Class A or B (ULI Style Z or Y) NAC Circuits. All Circuits are supervised for opens and ground faults, and NAC Circuits for shorts. -
Page 6: Document Conventions
Document Conventions Circuits and Zones The term circuits refers to an actual electrical interface, initiating (detection), NAC (signal), or relay. The term zone is a logical concept for a fi re alarm protected area, and will consist of at least one circuit. Often the terms zone and circuit are used interchangeably, but in this manual the term circuit is used. - Page 7 Model Description PFC-5002 Small enclosure fi re alarm control panel with 2 Class B (Style B) or 1 Class A (Style D) Initiating Circuits, and 2 Power Limited Class A/B (Style Z/Y) NAC Circuits (1.70 amperes each, 2.0 amperes total) with individual trouble indicators.
-
Page 8: Circuit Adder Modules
Circuit Adder Modules Model Description ZA-42 Zone Adder Module for the PFC-5004E. Brings the total capacity to 8 Class B (Style B) or four Class A (Style D) Initiating Circuits, and 4 Power Limited Class A/B (Style Z/Y) NAC Circuits (up to 1.7 amperes each, 5 amperes total). -
Page 9: Figure 1: Pfc-5002 And Pfc-5004 Enclosure Installation And Dimensions
Mechanical Installation and Dimensions Figure 1: PFC-5002 and PFC-5004 Enclosure Installation and Dimensions 5 " 3 " BACKBOX DOOR DOOR MATERIAL: 18GA (0.048") THICK COLD ROLLED STEEL FINISH: PAINTED BACKBOX WALL WALL SURFACE FLUSH (SIDE VIEW) (SIDE VIEW) BACKBOX " - 5 3 - "... -
Page 10: Figure 2: Pfc-5004E Enclosure Installation And Dimensions
Figure 2: PFC-5004E/PFC-5008 Enclosure Installation and Dimensions 5 " 5 " BACKBOX DOOR DOOR MATERIAL: BACKBOX 18GA (0.048") THICK DOOR 16GA (0.059") THICK COLD ROLLED STEEL FINISH: PAINTED WALL BACKBOX WALL SURFACE FLUSH (SIDE VIEW) (SIDE VIEW) 3 " 1 4 - BACKBOX "... -
Page 11: Figure 3: Pfc-5002 And Pfc-5004 Module Mounting Locations
Modules Mounting Locations The PFC-5000 Series come pre-assembled with all components and boards, except for adder modules. Module installation locations are shown below. Be sure to connect a solid Earth Ground (from building system ground or cold water pipe) to the Chassis Earth Ground Mounting Lug, and to connect the Earth Ground Wire Lugs from the Main Chassis to the ground screw on the backbox. -
Page 12: Figure 4: Pfc-5004E Module Mounting Locations
Fig. 4: PFC-5004E/PFC-5008 Module Mounting Locations MAIN FIRE ALARM MODULE ZONE ADDER MODULE (ZA-42) DISPLAY PLATE (MODEL UDACT-9100) POLARITY REVERSAL AND CITY TIE MODULE (MODEL PR-5100) Note 1. Relay module may be Model ARM-4 or ARM-8. -
Page 13: Figure 5: Main Fire Alarm Module
Module Settings Main Fire Alarm Module Class A / B Selection On the PFC-5002, PFC-5004, PFC-5008 and PFC-5004E, to select Class B (Style B) move JW1 & JW2 to position “B.” To select Class A (Style D) move JW1 & JW2 to position “A”. Note: The Class A/B selection affects all initiating circuits, and must be used with the correct Confi... -
Page 14: Figure 6: Za-42 Zone Adder Module
For example, starting with the factory default setting, moving the jumper from JW2 to JW1.2 will make both relays 1 & 2 operate with Initiating Circuit #1.Contact Potter Technical Support for assistance if required. -
Page 15: Figure 8: Udact-9100 Dialer Module
UDACT / DACT (Model UDACT-9100) P1: Cable to P8 on the main fi re alarm board. Jumper JW6 on the main fi re alarm module must be removed if a UDACT-9100 is installed. Note that this module cannot be installed if a polarity reversal and city tie module is used. Figure 8: UDACT-9100 DACT Module Note: The UDACT is Tip &... -
Page 16: Figure 10: General Field Wiring Considerations
Field Wiring General Field Wiring Considerations Because most of the Field Wiring on the PFC-5000’s is to the Main Boards on the swinging dead front, it is very important to properly dress the wires so as not to place stress on either their connection to the boards, or runs to conduit. The Figure below shows the required wiring techniques. -
Page 17: Figure 11A: Main Fire Alarm Module Terminal Connections
Main Fire Alarm Module Terminal Connections Wire devices to terminals as shown in Figure 11 below. See Wiring Tables on page 20 for wiring instructions, Appendix A on page 33 for compatible devices, and Appendix C on page 37 for specifi cations. Do not exceed power supply ratings: PFC-5002, PFC-5004, total current for NAC circuits is 2A max. -
Page 18: Figure 11B: Main Fire Alarm Module Terminal Connections (Cont'd)
Figure 11B: Main Fire Alarm Module Terminal Connections (cont’d) INI4- CLASS B / SUPE RVISED INITIATING CIRCUIT #4 STYLE B (SHOWN AS SUPV ZON E, POWER LIMITED) WIRING INI4+ STYLE D INI2 INI3- CLASS B / SUPERVISED INITIATING CIRCUIT #3 STYLE B (SHOWN AS ALARM ZON E, POWER LIMITED) WIRING... -
Page 19: Figure 12: Za-42 Zone Adder Module Terminal Connections
Figure 12: Zone Adder Module (ZA-42) Terminal Connections Wire devices to terminals as shown below in Figure 12. See Wiring Tables on page 20 for wiring instructions, Appendix A on page 33 for compatible devices, and Appendix C on page 37 for Module specifi cations. CLASS A / STYLE D NOTE: INITIATING CIRCUITS MUST BE ALL EITHER STYLE B OR D. -
Page 20: Figure 13: Relay Module (Arm-4 Or Arm-8) Terminal Connections
Figure 13: Relay Module (ARM-4 or ARM-8) Terminal Connections Note that only relays #1 to #4 are present on the ARM-4. RELAY CON TACTS REL AY #1 28 VDC 1 AMP RESISTIVE LOAD RELAY CON TACTS REL AY #2 28 VDC 1 AMP RESISTIVE LOAD RELAY CON TACTS REL AY #3... -
Page 21: Figure 14: Udact-9100 Wiring Diagram
UDACT / DACT (UDACT-9100) Terminal Connections The following diagram shows the wiring connection for the UDACT-9100, refer to LT-888POT for more details. Wire the two telephone lines to RJ31X Connector terminals as shown in Figure 14 below. The UDACT-9100 terminals are located on the top left hand corner of the board. -
Page 22: Figure 15: Pr-510 Polarity Reversal And City Tie Module Terminal Connections
Polarity Reversal and City Tie Module (Model:PR-5100) Terminal Connections See Appendix C on page 37 for module specifi cations. Wire as shown in Figure 15 below using proper wire gauges. Refer to LT-877POT for more details. Note that for use in the USA, the installer must add an Atlantic Scientifi c (Tel. 407-725-8000) Model #24544 Protective Device, or similar ULI-Listed QVRG Secondary Protector, as shown. -
Page 23: Figure 16: Power Supply Connections
Power Supply Connections The power supply is part of the main fi re alarm module and the chassis. The ratings are: Model Branch Circuit Ratings PFC-5002, PFC-5004 120 V 60Hz 1A / 240V 50 Hz 0.5A PFC-5004E, PFC-5008 120 V 60Hz 2.0A / 240V 50 Hz 1.0A •... -
Page 24: Table 1: Wiring Table For Initiating Circuits
Wiring Tables Table 1: Wiring Table for Initiating Circuits Wire Gauge Maximum Wiring Run to Last Device (ELR) (AWG) 2990 4760 1450 7560 2300 12000 3600 19000 5800 30400 9200 Note: Maximum loop resistance should not exceed 100 Ohms. Wire size less than 18AWG is not recommended for initiating or notifi... -
Page 25: System Checkout
System Checkout Before Turning The Power On... 1. To prevent sparking, do not connect the batteries. Connect the batteries after powering the system from the main AC supply. 2. Check that all modules are installed in the proper location with the proper connections. 3. -
Page 26: Figure 17: Indicators And Control Location
Indicators, Controls, & Operation Refer to Figure 17 below for LED Indicators and control switch locations. Figure 17: Indicators and Control Location A.C . ON ZONE 1 ZONE 5 SIGNAL COMMON SILENCE DISC . 1 DISC . 1 ALARM COMMON SUPE RVISORY ZONE 2 ZONE 6... - Page 27 Common Supervisory LED (PFC-5004 or PFC-5004E/PFC-5008 only) The amber Common Supervisory LED illuminates steadily when there is a supervisory alarm in the panel resulting from any latching or non-latching supervisory circuit. The LED turns off if all non-latching supervisory circuits are restored and there are no active latching supervisory circuits.
-
Page 28: Controls
Controls System Reset Switch The System Reset momentary switch resets the fi re alarm control panel and all circuits: • Resets all latching trouble conditions • Resets all initiating circuits • Resets four-wire smoke supply • Turns off all NAC circuits •... -
Page 29: Operation
Operation All alarm inputs are treated in a similar manner. Alarm inputs include non-verifi ed or verifi ed alarms, and water-fl ow alarms. Activation of any alarm input when the panel is not already in alarm cause the following: • The buzzer sounds steadily •... -
Page 30: Initiating (Detection) Circuit Types
Initiating (Detection) Circuit Types Circuit Type Description This is a “normal” type of alarm which may have pull stations, smoke detectors, or heat detectors attached. Any activation of these devices will immediately result in an alarm condition in the fi re alarm Non-Verifi... -
Page 31: Figure 18: Evacuation Codes
NAC (Signal) Circuits Types Circuit Type Description Silenceable Signal For audible devices such as bells and piezo mini-horns that may be silenced either manually or automatically. While sounding, these follow the pattern appropriate for the condition: the confi gured evacuation code (default is temporal code) during single-stage alarm, or two stage general alarm, or the alert code during a two stage system’s alert (fi... -
Page 32: System Confi Guration
Main Fire Alarm Board Confi guration of the PFC-5000 Series is accomplished simply by DIP Switch Settings on the Main Fire Alarm Board. For DIP Switches, 0 = switch “off”, 1 = Switch “on’). The DIP switches are located on the bottom left side of the main fi re alarm board. -
Page 33: Table 3: Confi Guration Dip Switch Functions On Main Fire Alarm Board
Table 3: Confi guration DIP Switch Functions on Main Fire Alarm Board Function DIP Switch Switch "Off" Switch "On" NAC Circuit #1 Switch 13, #1 Silenceable Non-Silenceable Audible Device (Bell) Only NAC Circuit #2 Switch 13, #2 Silenceable Non-Silenceable Audible or Visual Device Switch 13, #3 Audible Device (Bell) Visual Device (Strobe) -
Page 34: Za-42 Module
When confi guring the PFC-5000 main board, keep in mind the following information: • Only NAC circuit 2 may be confi gured for visual devices. • If initiating circuit 3 is confi gured as waterfl ow, the corresponding verifi ed selection becomes a retard selection. •... -
Page 35: Table 4: Confi Guration Dip Switch Functions On Za-42 Module
Table 4: Confi guration DIP Switch Functions on ZA-42 Module Function DIP Switch on ZA-42 Switch "Off" Switch "On" Module NAC Circuit #3 Switch 6, #1 Silenceable Non-Silenceable Audible Device (Bell) Only NAC Circuit #4 Switch 6, #2 Silenceable Non-Silenceable Audible or Visual Device Switch 6, #3 Audible Device (Bell) -
Page 36: Walk Test Operation
Walk Test Operation A walk test allows an installer to verify the Initiating Circuit wiring in a system. To enter walk test, press and hold both the Buzzer Silence and Lamp Test momentary switches for at least one second. You can identify circuits to be tested using the Circuit Disconnect slide switches. -
Page 37: Appendix A: Compatible Devices
Whether mixing different models of compatible smoke detectors or using the same model on the same circuit, the total standby current of all detectors must not exceed 3 mA. Make Model/Base Make Model / Base Make Model / Base 1451-A/B406B 73405/73400 Potter PS-24 / SB93 2451-A/B401B 73594/73401 IS-24 / SB93 2451-A/B406B 73405/73401... -
Page 38: (Ul) United States: Two-Wire Smoke Detector Control Panel Compatibility
Rated Standby Smoke Detector Compatibility Rated Standby Make Model / Base Identifi er Head / Base Current Make Model / Base Identifi er Head / Base Current Potter System Sensor PS-24 HD-3/HB-72 0.045mA 1100 A - N/A 0.12 mA IS-24 HD-3/HB-72 0.040mA... -
Page 39: (Ul) United States: 4-Wire Smoke Detector Control Panel Compatibility
(UL) United States: 4-Wire Smoke Detector Control Panel Compatibility MIR-545U MIR-545TU Mircom 541C 449AT, 449C, 449CT, 449CRT, 449CST, 449CSTE, 449CSRT, 449CSRH, 741U WITH 702U or Sentrol - ESL 449CSST, 449CSSTE, 449CTE, 449CLTCSLT 702E Base 1424 6424 6424A A77-716B System Sensor DH400ACDCI DH400ACDCP DH400ACDCIHT... -
Page 40: Appendix B: Remote Annunciators
The RA8F Eight Zone Remote Annunciator mounts in an electrical box. It provides annunciation for the PFC-5004, PFC-5008, or PFC-5004E’s full complement of 8 Initiating circuits. For more detailed information see Potter Document #8900103 PFC-5004 bulletin, #8900104 PFC-5004E/PFC-5008 bulletin, #8910202 RA8F bulletin. -
Page 41: Appendix C: Module Specifi Cations And Features
Appendix C: Module Specifi cations And Features PFC-5002 Fire Alarm Control Panel PFC-5004E/PFC-5008 Fire Alarm Control Panel General General Two supervised Class B (Style B) or one Class A (Style D) Four supervised Style B (Class B) or 2 Style D (Class A) Initiating circuits;... - Page 42 ZA-42 Zone Adder Module May be added to PFC-5004E. 4 supervised Class B (Style B) or 2 Class A (Style D) initiating circuits; confi gurable. [Compatibility ID “A”] Power limited: 22VDC, 3 mA standby, 1.5Vp-p ripple, 50 mA max. (alarm) 2 Class B or A (Style Y or Z) NAC circuits;...
-
Page 43: Appendix D: Power Supply & Battery Calculations
• Multiply (C) by 1.20 to derate battery. • The PFC-5000 Series will charge BT-40 (4 AHr), BT-80 (8 AHr), BT-120 (12 AHr), BT-180 (18 AHr) or BA-240 (24 AHr)batteries (2 required) • The BT-180 and the BA-240 require a Listed Battery Cabinet. -
Page 44: Warranty Information
WARRANTY INFORMATION The essential purpose of any sale or contract for sale of any of the products listed in the POTTER catalog or price list is the furnishing of that product. It is expressly understood that in furnishing said product, POTTER does not agree to insure the Purchaser against any losses the Purchaser may incur, even if resulting from the malfunction of said product.
