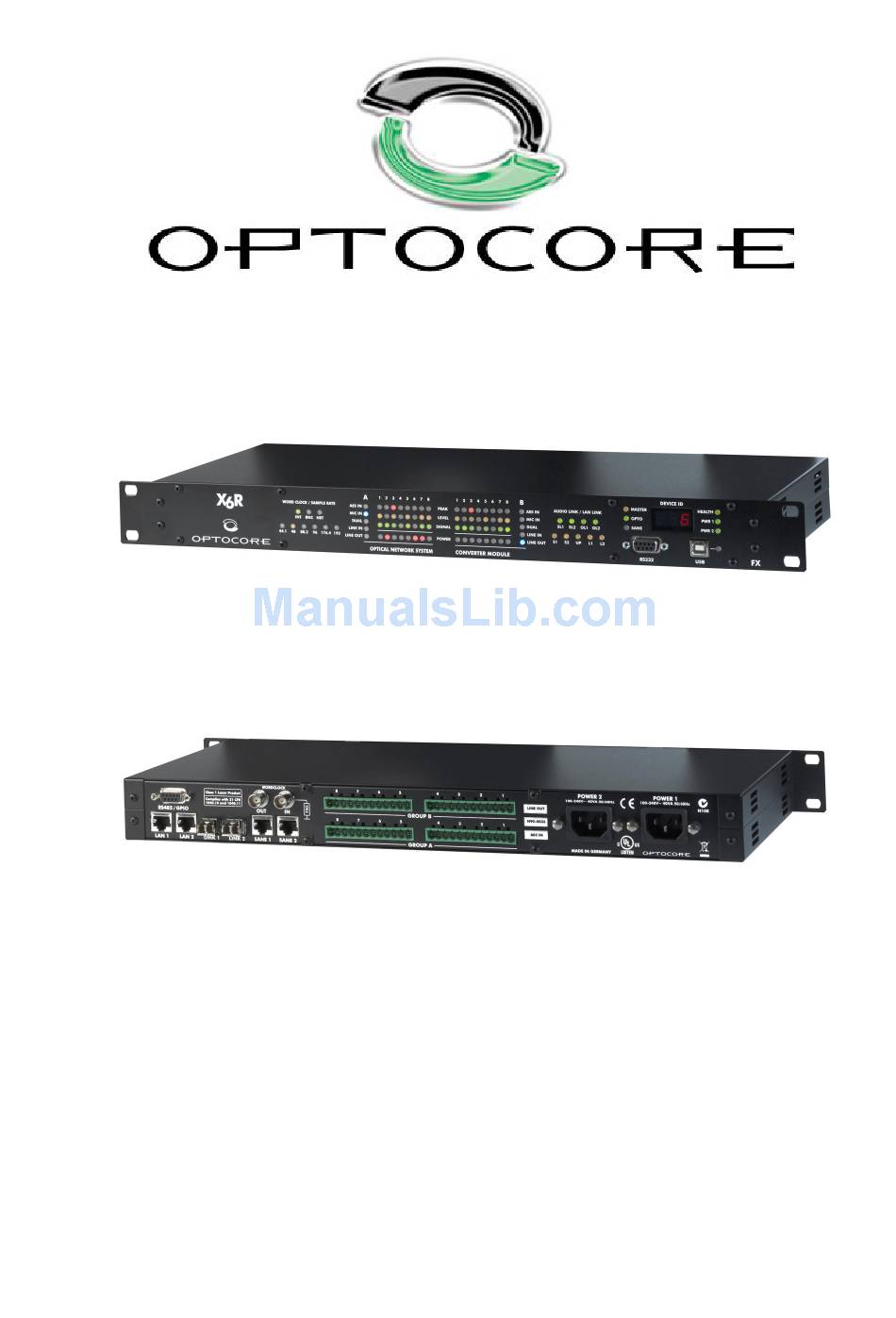

- Page 1 Operating Manual for OPTOCORE X6R/V3R-FX Network Converter Devices A/D and D/A Converter for Optocore and SANE © Copyright 2014 All rights reserved OPTOCORE GmbH Lohenstr. 8 82166 Munich-Gräfelfing Germany X6R/V3R-FX– A/D D/A Converter for Optocore and SANE Operating Manual Rev. 2.0...
-
Page 3: Important Safety Instructions
Never switch on power amplifiers before the complete system is stable and the level meters of the OPTOCORE CONTROL software indicate a normal level. Do not place this device on an unstable table, tripod, cart, etc. The device may fall, causing serious damage to the device. -
Page 4: Purchaser Information
Leave sufficient space (minimum ½ RU) between the device and any heat emitting devices housed in the same rack. An X6R/V3R converter may be placed on top or beneath other Optocore products, except a DD32E, without additional space. - Page 5 Cleaning Only use a dry linen cloth to clean the device. If the unit is very dirty, moisten a cloth using a little water and a small amount of household detergent. Never use cleansing agents containing solvents to clean the device. Operating and Storage Temperature ...
- Page 6 Such operation can lead to damage of the device’s components due to lack of air flow through the device. The device may not be serviced, altered or modified without authorisation from Optocore or an Optocore authorised distributor / dealer. Only qualified service personnel may carry out repair and maintenance work on the device.
-
Page 7: Ce-Conformity
The authorised declaration and compatibility certification lies with the manufacturer and can be viewed on request. Responsible as manufacturer is: OPTOCORE GmbH, Lohenstr. 8, 82166 Munich-Gräfelfing, Germany represented by Marc Brunke, Managing Director N.B. The awarding of the CE label confirms the compliance with legal directives issued for the manufacturer and marketing of electronic and electrical devices. -
Page 9: Table Of Contents
X6R/V3R-FX - A/D and D/A Converter for Optocore and SANE Table of Contents Important Safety Instructions ........................... 3 Purchaser Information.............................. 4 CE-Conformity ................................. 7 Device Description ..............................11 Card Types ................................12 Front Panel ................................14 X6R-FX............................... 14 V3R-FX............................... 14 Rear Panel................................ - Page 10 Dimensions and Weight ............................26 Warranty and Liability.............................27 Shipping Contents..............................27 Contact Information..............................28 X6R/V3R-FX 10 / 28 rev. 2.0...
-
Page 11: Device Description
14 in 1 - the X6R/V3R-FX is a network converter unit for Optocore and SANE with the highest degree of flexibility with regards to the I/O configuration. Six different card types enable the complete customisation of the I/O cards,... -
Page 12: Card Types
Word Clock input and output connectors allow the Optocore network to be synchronized from an external source as well as for Word Clock be distributed around a facility using the Optocore network. All Optocore and SANE devices are capable of being system masters using their internal clock. - Page 13 8 AES/EBU ports with sample rate converters switchable to inputs or outputs in groups of four 8 AES/EBU ports switchable to inputs or outputs in groups of four The X6R/V3R-FX is shipped preconfigured with I/O cards according to the order placed with Optocore. The cards are not field-exchangeable. X6R/V3R-FX 13 / 28...
-
Page 14: Front Panel
Communication is established via SANE 1 (rear panel) SL2: Communication is established via SANE 2 (rear panel) OL1: Communication is established via Optocore LINK 1 (rear panel) OL2: Communication is established via Optocore LINK 2 (rear panel) Master LED: Indicates the Word Clock Master unit... - Page 15 Device ID Display: Indicates the unique identification number of the device HEALTH LED: Green: Power supply to the device works, temperature is below the limit PWR 1 LED: Power supply 1 is working correctly PWR 2 LED: Power supply 2 is working correctly USB plug and LED: USB connection for remote control and update via PC Green: Indicates data activity...
-
Page 16: Rear Panel
RS485: 4 x RS485/RS422 (D-Sub-9) auxiliary port for data transmission Word Clock IN: BNC Word clock input allowing synchronization of Optocore devices/network from an external word clock source Word Clock OUT: BNC Word clock output for synchronization of external devices POWER 2: Mains input for power supply 2 (100 …... -
Page 17: Device Details
Transmission Delay The Optocore system delay including the matrix is fixed to 41,6 µs @ 48 kHz for all channels. The additional transport delay per Optocore unit (<200 ns) in the network is insignificant in comparison. Overall system delay is dependent on the converters used and the length of network cables in the system. -
Page 18: Power Supply
Control All system and device parameters are configured using the OPTOCORE CONTROL software. The system can be configured and controlled centrally, over the Optocore network, with the exception of the initial configuration of the unique identifier (ID) of the device. -
Page 19: Sane Bandwidth Allocation
SANE bandwidth allocation The standard bandwidth allocation of a SANE link is as follows: Audio 64 Channels @ 48 KHz Ethernet 100 MBit Fast Ethernet X6R/V3R-FX 19 / 28 rev. 2.0... -
Page 20: Connectors And Cables
> 40 dB between 30 MHz up to 1 GHz. The shield of the cable should have contact to the connector hood. USB-Connection Use a USB-A to USB-B cable between the PC and the Optocore device. LAN-Connection Use a standard twisted pair cable (Cat-5, Cat-6) with RJ-45 connectors. -
Page 21: Hardware Connection
16LO equipped with two 8 line outputs cards. It creates a network with 16 inputs and 32 outputs, where each input channel can be routed to any output. Adding distant fiber units to the Optocore ring can easily expand the system. -
Page 22: Example 2
Example 2 The X6R-FX can be used as a SANE to Optocore converter. The X6R-FX with analog I/O cards is connected with three X6R-TPs with different types of cards and one V3R-TP by CAT5 cables. The word clock is transmitted by SANE and Optocore, so there is no need to use additional 75 ... -
Page 23: Connection Tables
A device compatible with “MADI” In “MADI” Out 10/100MB Fast Ethernet can be connected to a SANE port for Ethernet data communication. RJ-45 Pin-out Optical Fibre-Port Optocore LC connectors Pin-out RS232-Port RS232 Power Internally Channel Use standard RS232 cable, male –... - Page 24 Pin-out USB-Port Channel USB-B device-connector VBUS X6R/V3R-FX 24 / 28 rev. 2.0...
-
Page 25: Technical Specifications
USB 2.0 - Device 12 Mbit/s IEEE - 802.3 10/100 Mbit/s SANE, LAN Convention Audio TIA - 568A/B, Optocore 200 Mbit/s TIA - 568A/B, IEEE - 802.3 10/100 Mbit/s Optical Connection Complies with 21 CFR 1040.10 and 1040.11 Power supply... -
Page 26: Dimensions And Weight
Dimensions and Weight Front panel: width 483 mm / 19 inch height 44 mm / 1.73 inch depth 200 mm / 7.87 inch Rear panel: width 438 mm / 17.25 inch Weight 2.7 kg ≡ 4.41 lbs Please note: Modifications that serve the purpose of technical improvement may be carried out without prior notification. -
Page 27: Warranty And Liability
This warranty covers the original purchaser only and is not transferable. Valid evidence of warranty is the official Optocore invoice issued by the distributor / dealer. Optocore will, at its discretion, repair or replace a defective product, providing that the defect has occurred under normal operating conditions. -
Page 28: Contact Information
Contact Information Mailing Address: OPTOCORE GmbH Lohenstr. 8 D-82166 Munich-Gräfelfing Germany Telephone: +49 – (0)89 – 8999640 Facsimile: +49 – (0)89 – 89996455 Internet: www.optocore.com Email: X6R/V3R-FX 28 / 28 rev. 2.0...
