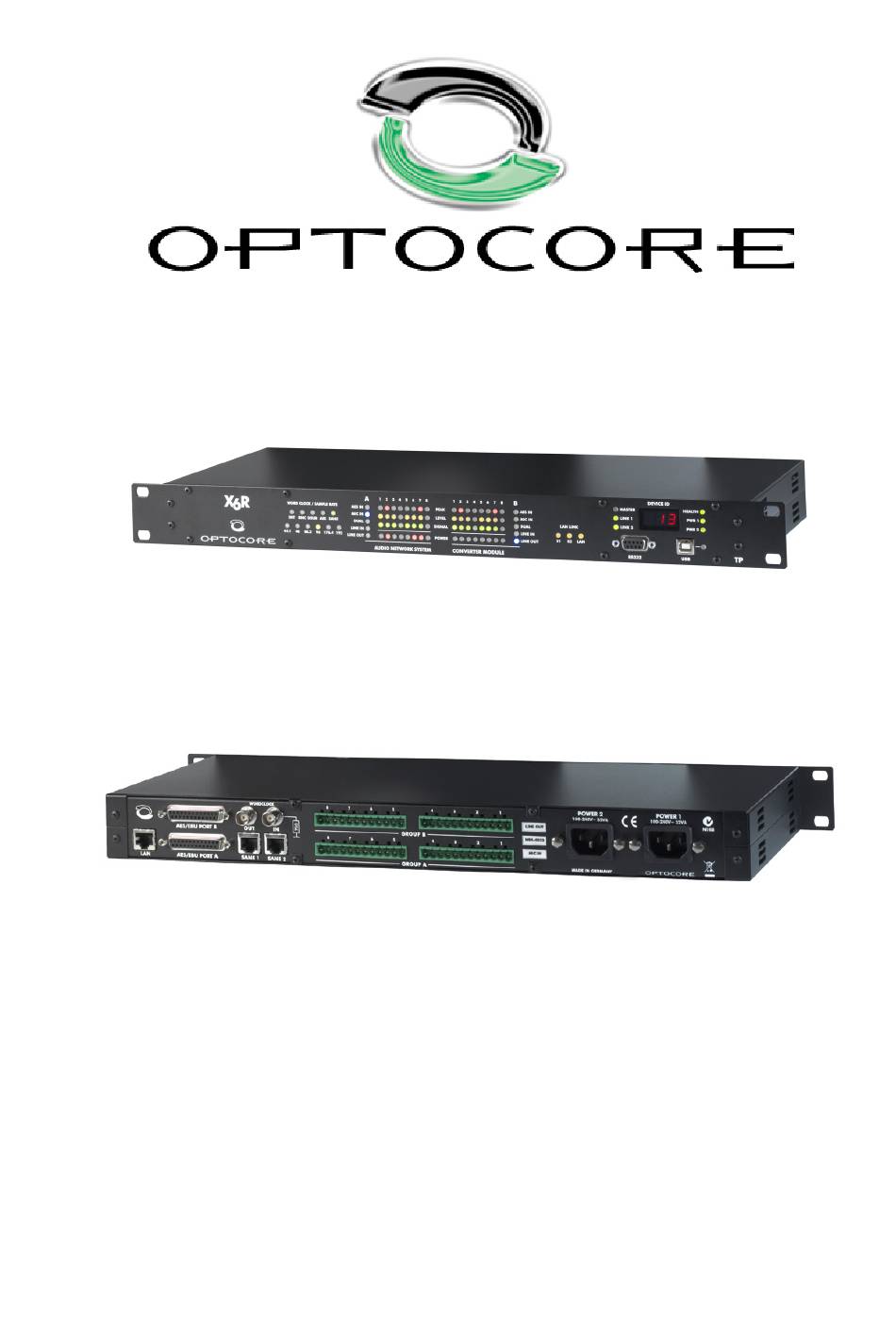

- Page 1 Operating Manual for OPTOCORE X6R/V3R-TP Devices A/D and D/A Converter with SANE and Ethernet © Copyright 2020 All rights reserved OPTOCORE GmbH Alte Allee 28 81245 Munich Germany X6R/V3R-TP– A/D D/A Converter with SANE and Ethernet Operating Manual Rev. 2.5...
- Page 2 Page intentionally left blank...
-
Page 3: Important Safety Instructions
Important Safety Instructions Please read this manual carefully. • Please keep this operating manual in a safe place. • Heed all warnings. • Follow all instructions. • This device may only be used in accordance to the information provided in this operating •... -
Page 4: Purchaser Information
Leave sufficient space (minimum ½ RU) between the device and any heat emitting devices housed in the same rack. An X6R/V3R device may be placed on top or beneath other Optocore products, except DD32E, without additional space. - Page 5 Cleaning • Only use a dry linen cloth to clean the device. If the unit is very dirty, moisten a cloth using a little water and a small amount of household detergent. Never use cleansing agents containing solvents to clean the device. Operating and Storage Temperature •...
- Page 6 Such operation can lead to damage of the device’s components due to lack of air flow through the device. The device may not be serviced, altered or modified without authorisation from Optocore or an Optocore authorised distributor / dealer. Only qualified service personnel may carry out repair and maintenance work on the device.
-
Page 7: Ce-Conformity
Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at his own expense. Changes or modifications not expressly approved by Optocore GmbH could void the user’s authority to operate this equipment. - Page 8 Page intentionally left blank...
-
Page 9: Table Of Contents
Front Panel ................................13 X6R-TP ................................ 13 V3R-TP ................................ 13 Rear Panel ................................15 X6R-TP with Analogue Input- and Output Cards ..................15 V3R-TP or X6R-TP with Dual Microphone ....................15 Device Details ................................. 16 SANE Ports ..............................16 A/D and D/A Converter ..........................16 Analog Inputs ............................... - Page 10 Warranty and Liability .............................. 26 Shipping Contents ..............................27 Company Information .............................. 27 X6R/V3R-TP 10 / 27 rev. 2.5...
-
Page 11: Device Description
The X6R-TP with the dual microphone input card removes the problem where only one of the FOH or Monitor engineers can have full gain control of a single microphone input channel. Every microphone input incorporates two independent microphone preamps meaning both can be adjusted individually. -
Page 12: Card Types
Up to 8 TP devices can be used in one SANE CAT5 daisy chain to extend OPTOCORE FX fiber node with up to 64 audio inputs and 64 audio outputs and additional 100Mbit LAN ports. Microphone preamps on the TP device can be controlled from any node in the fiber network as well as from the console running Emulation Mode. -
Page 13: Front Panel
Front Panel X6R-TP V3R-TP Word Clock LED: Indicates the selected word clock source: INT: Internal word clock BNC: External via BNC Input DSUB: External via DSUB (available on request) AES: External via AES (available on request) SANE: External via SANE... - Page 14 USB plug and LED: USB connection for remote control via PC Green: Indicates data activity RS232 plug: D-Sub-9 RS232 connection for remote control and update via PC LAN LINK: Ethernet communication is established via SANE 1 (rear panel) Ethernet communication is established via SANE 2 (rear panel) LAN: Ethernet communication is established via LAN (rear panel) POWER / MUTE...
-
Page 15: Rear Panel
GROUP: Cards with Euroblock / Phoenix connectors (8 channels) in slot GROUP A and GROUP B at a X6R-TP or in slot GROUP A only at a V3R-TP SANE 1: SANE RJ-45 interface for data transmission + 100 Mbit Ethernet... -
Page 16: Device Details
Word Clock Devices with Optocore/SANE modules are equipped with an internal, high quality, low jitter clock generator as well as Word Clock inputs and outputs. Any device on the network can act as the master of the network and pass Word Clock to networked Optocore/SANE devices. -
Page 17: Control
R-series FX device. All device parameters like gain, phantom and pad can be accessed and modified using OPTOCORE CONTROL software, which runs on PC connected via USB or RS232 to any FX device or via LAN to any LAN or SANE port. -
Page 18: Sane Bandwidth Allocation
SANE bandwidth allocation The standard bandwidth allocation of a SANE link is as follows: Audio 64 Channels @ 48 KHz Ethernet 100 MBit Fast Ethernet X6R/V3R-TP 18 / 27 rev. 2.5... -
Page 19: Connectors And Cables
> 40 dB between 30 MHz up to 1 GHz. The shield of the cable should have contact to the connector hood. USB-Connection Use a USB-A to USB-B cable between the PC and the Optocore device. LAN-Connection Use a standard twisted pair cable (Cat-5, Cat-6) with RJ-45 connectors. -
Page 20: Hardware Connection
Optocore ring. In this example there are three Optocore X6R-TP units: one with two mic input cards, second one works as a dual mic device, third X6R-TP with one input and one output analogue card. There is also one V3R-TP with one output card. -
Page 21: Example 2
Example 2 X6R/V3R-TP devices are used mostly as a channel extension to main fibre optic Optocore network nodes. In this example two FX devices are connected with dual ring redundant network. X6R/V3R-TP devices are used as an analogue extension. On the one end three TP devices extend the channel count of X6R-FX unit. This group of devices can be used as a stage box with 40 microphone inputs and 16 line outputs. -
Page 22: Connection Tables
Connection Tables Pin-out Balanced Mic/Line Inputs, Line Outputs Each Channel Euroblock Pin-out AES Ports A + B RS422 In or Output Control Channel AES-Data 9+10 11+12 13+14 15+16 10, 12, 13, 23, D-Sub-25- female Locking system acc. to 4-40 UNC Pin-out RS232-Port RS232... -
Page 23: Bi-B Cable
BI-B Cable In order to connect a principal port of a DD32R(E) to an AES port of an X6R converter device, a BI-B cable with D-Sub-25 connectors should be used. DD32R(E) Principal Port X6R/V3R AES Port A X1…X8: 8 AES/EBU channels X1…X8: 8 AES/EBU channels X9, X10: Control channels X9, X10: Control channels... -
Page 24: Technical Specifications
57 600 Baud USB 2.0 - Device 12 Mbit/s IEEE - 802.3 10/100 Mbit/s SANE, LAN Convention Audio TIA - 568A/B, Optocore 200 Mbit/s TIA - 568A/B, IEEE - 802.3 10/100 Mbit/s Power supply Type Switch-mode, universal input Mains voltage 100 …... -
Page 25: Dimensions And Weight
Dimensions and Weight Front panel: width 483 mm / 19 inch height 44 mm / 1.73 inch depth 200 mm / 7.87 inch Rear panel: width 438 mm / 17.25 inch Weight 2.7 kg ≡ 4.41 lbs Please note: Modifications that serve the purpose of technical improvement may be carried out without prior notification. - Page 26 The warranty will be void if you tamper with internal components. Please address any questions or inquiries to OPTOCORE or your distributor/dealer. For a full warranty conditions refer to the Warranty Card attached to every Optocore device with a first shipment. How to Obtain Warranty Service When discovering a problem with an OPTOCORE device, you should contact either Optocore directly or a dealer/distributor to determine and confirm a hardware fault.
- Page 27 Please note that due to the Ecology reason standard shipment does not contain printed copy of User Manual. All latest OPTOCORE user manuals can be downloaded from the website: http://www.optocore.com/index.php/support/downloads Printed version of User Manual is available on a special demand. Please contact support@optocore.com...
