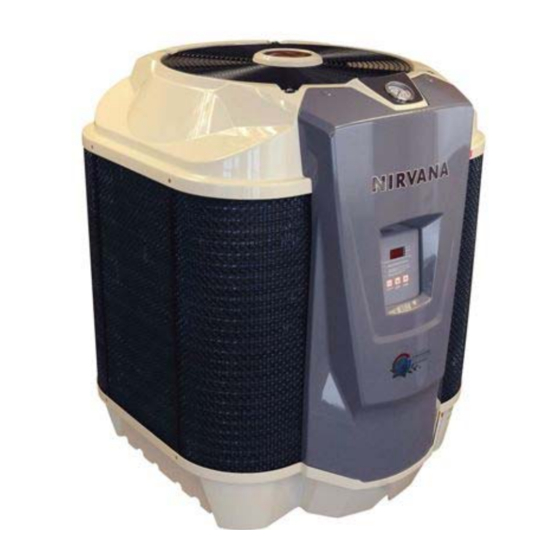

Swimming pool heat pump unit
Hide thumbs Also See for B50:

Advertisement








CANADA
USA
INSTALLATION & INSTRUCTION MANUAL SWIMMING POOL HEAT PUMP UNIT
MADE IN
CANADA






MODELS



B50
E60­75­95­116
C95­110












Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B50 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nirvana B50

  • Page 1                           MADE IN   CANADA                 MODELS    B50  E60­75­95­116        C95­110  CANADA     INSTALLATION & INSTRUCTION MANUAL SWIMMING POOL HEAT PUMP UNIT...
  • Page 2 WARNING    Read and comply with all safety information. Make sure you understand all instructions before  using this product.       WARNING       DANGER In  this  manual,  these  warnings  mean  there  is  a  safety  message  to  comply  with  or  that  improper use could result in damage to the unit. When you see one, read it carefully.           IMPORTANT!  In this manual, this indication refers to the guarantee and procedures of service calls or  referred to a recommendation.            ...
  • Page 3: Table Of Contents

      TABLE OF CONTENTS   1.0  INTRODUCTION    2.0  PRINCIPAL FEATURES OF YOUR NIRVANA SWIMMING POOL HEATER   3.0  OPERATING PRINCIPLES OF THE THERMODYNAMIC HEAT PUMP FIGURE 1      4.0  ENERGY SAVING    5.0  INSTALLATION OF YOUR HEAT PUMP      5.1  CHOICE OF INSTALLATION SITE FIGURE 2      5.2  CONNECTING WATER  FIGURE 3      5.3  BYPASS SYSTEM  FIGURE 4      5.4  WATER PRESSURE GAUGE  FIGURE 5   ...
  • Page 4 11.0  WARRANTY    11.1  REGISTRATION OF WARRANTY     11.2  CONSUMER’S RESPONSABILITY     11.3  MANUFACTURER’S LIMITED WARRANTY       11.4  WARRANTY EXCLUSIONS      12.0  TROUBLESHOOTING GUIDE    13.0  CONTACTING THE FACTORY      APPENDIX 1  OVERVIEW OF THE UNIT     APPENDIX 2  HEAT EXCHANGER OVERVIEW     APPENDIX 3  ELECTRIC BOX OVERVIEW     APPENDIX 4  ELECTRIC PLAN OF THE ELECTRIC BOX (B &E‐SERIES)  ...
  • Page 5: Introduction

    1.0  INTRODUCTION    Dear Owner,    Thank you for choosing NIRVANA heat pump inc .You are now the proud owner of a « NIRVANA » pool heat pump that  is industry‐recognized for its efficiency and reliability.    Very economical and extremely easy to operate, your « NIRVANA »   heat pump will ensure your full satisfaction and  remain  problem  free  for  years  to  come  if  it  is  installed  and  maintained  according  to  the  instructions in the « OWNER’S MANUAL AND INSTALLATION GUIDE ».    This  appliance  The Management, NIRVANA heat pump Inc.   delivers  the    best  value  on      the market.  ...
  • Page 6: Figure 1

    FIGURE 1          IMPORTANT! SOLAR BLANKET   In order to increase energy savings, we strongly recommend use of a solar blanket when the air is cooler,  especially at night and at the beginning and end of the season. This will minimize heat loss and help reduce your  heating costs.     4.0  ENERGY SAVING    Did you know that at least 43% of heated pool owners choose heat pumps as pool heaters? And with good cause! This  ystem has the highest output, is the most economical to operate and is the advantageous for maintaining the water  in your pool at a constant temperature, day and night.    Using  a  pool  heat  pum p  continuously  to  keep  the  pool’s  water  temperature  at  a  constant  27  degrees  Celsius  (80  grees Fahrenheit) from May to September inclusively costs only one fifth of what it costs to use a natural gas or  propane pool heater. ...
  • Page 7: Installation Of Your Heat Pump

        5.0  INSTALLATION OF YOUR HEAT P UMP    5.1  CHOICE OF INSTALLATION SITE    The installation site is a very important element in getting the most out of your pool heat pump. As described earlier,  the heat pump captures energy from the air and transfers it to the pool water. Wh en choosing the installation site, it   very important make sure there is enough room around the heat pump that is free of obstacles (wall, trees, hedges  tc). The choice of site should allow easy access to the temperature control panel.       FIGURE 2          A  level surface is  required to ensure  the stability of the heat pump. We recommend using a concrete slab or patio  tone.  In  addition  to  durability,  these  will  not  be  affected  by  water  condensation,*  which  may  drip  from  the  heat  pump evaporator during operation.  ...
  • Page 8: Connecting Water

    WARNING  NIRVANA heat pumps must never be installed in an enclosed area such as a garage or shed.    5.2  CONNECT ING WATER    Connect  the  water  line  from  the  swimming  pool  filter  to  the  «WATER  IN»  connector located  at  the  base  of  the  heat pump.  Connect the water line returning to the swimming pool to the «WATER OUT» connector located at  the base of the  heat pump.  Once all connections are made, turn the filter pump on to check water circulation and ensure that all connections  are watertight. The flow rate must be at least 208 litters/minute (55 U.S. GPM / 46 imperial GPM).  A circulatio n pump that reaches top performance with a flow of 208 litters/minute (55 U.S. GPM / 46 imperial GPM)  must be installed to ensure you achieve sufficient water flow (minimum of 1.5 HP circulation pump is recommended).     FIGURE 3     ...
  • Page 9: Bypass System

    CAUTION  The titanium heat exchanger has a single wall.  This is  not suitable for potable water.    CAUTION  The heat pump must be installed between the pool filter outlet and the swimming pool, as close as possible to the  filter pump and the electrical hook‐up circuit to minimize connection costs and increase performance. Note that  use of 90° elbows and short elbows should be kept  to a  minimum (FIGURE).    CAUTION  CHEMICAL PRODUCTS DISTRIBUTOR (CHLORINATOR) (FIGURE )   The titanium condenser has the great advantage of offering almost total protection against the water’s acidity or  chemical products in the water.    Furthermore, in order to decrease the risks of corrosion, if a chemical product dispenser (for chlorine or bromine)  is  included  with  the  filtration  system,  an  insulated che  valve  must  be  installed  downstream  in  addition  to the  check valve in the automatic dispenser.    ATTENTION  NEVER INSTALL THE HEAT PUMP UPSTREAM FROM THE FILTER    ...
  • Page 10: Figure 4

    FIGURE 4    TABLE 1 ILLUSTRATION OF PARTS A   OUTLET WATER VALVE  B1, B2 & B3 ASSEMBLY VALVE BYPASS C  INLET WATER VALVE  PART NOT REQUIRED, ONLY     FOR TEMPORARY ASSEMBLY        TABLE 2 BYPASS SYSTEM ASSEMBLY             TABLE 3 POSITION OF VALVES FOR CIRCULATION INTO THE HEAT PUMP           TABLE 4 POSITION OF VALVES FOR DIVERSION OF WATER             ...
  • Page 11: Water Pressure Gauge

    .4  WATER PRESSURE GAUGE     The pipes connecting the different water filtration and heating components often include a large number of bypass  and/or service valves, sometimes leading to inadequate or no water pressure.    FIGURE 5    The pressure gauge should read between 5 and 15 Psi.    A high water pressure reading on the filter gauge does not necessarily mean  that enough water pressure is reaching the heat pump.     A good pressure should be held in the green section.  If the pressure is in  the yellow section, you have to do a backwash.  If the pressure is in red  section, you have a problem with the out water of the machine.  It might  be a bad position of the bypass valve.          5.5  OPERATION OF THE HEAT PUMP     The swimming pool water pump must always be ON when the heat pump is in operation. If the swimming pool  water pump is equipped with a timer, make sure that the heat pump’s operating time is synchronized with the  water pump’s operating time, with priority to the pool heater. The pool heater may have to operate for longer  periods than the water pump of the swimming pool.    The  heat  pump  may  occasionally  generate  condensation  in  the  form  of  mist  when  the  relative  humidity  is  at  higher levels. ...
  • Page 12: Figure

    IGURE 6  A                          o the connection in the respect of the National, provincial and local codes.        CAUTION  To guarantee your safety and ensure proper operatio n of your  unit, the electrical hook‐up should be done by  your POOL EXPERT or a CERTIFIED ELECTRICIAN according to national, state or provincial and municipal codes. A  circuit breaker of sufficient rating and copper wire must be used and it may be necessary to install a ground.  (FIGURE 6)         ...
  • Page 13: Eco Energetic Contactor

     CAUTION  The power cable ground wire must be connected to the  electrical  panel and to the ground terminal boards in  the heat pump’s junction box. Improper installation increases the risk of fire, and electrocution or injury.     WARNING  Units installed within 5 feet of the pool walls must be protected by a ground fault circuit breaker.     5.7  ECO ENERGETIC CONTACTOR    The eco  ergy contactor is an option of our electronic chart which makes it possible your Nirvana unit to effectively  manage the use of your circulating pump. The latter does not need to function 24 hours a day. Thus energy saving  interesting for a better energetic efficiency.     This option will always privilege the attack of your required temperature versus the time of operation of the  circulating pump.     Generally, the professionals of industry intend themselves to say that the circulating pump can function  approximately 12 hours per day without to affect water quality according to of course the conditions weather or of  the system of treatment of water which you use.  Consult your swimming pool professional of the on this subject.      WARNING  To guarantee your safety and ensure proper operation  of this opt ion, the electrical hook‐up should be done by  your POOL EXPERT or a CERTIFIED ELECTRICIAN.       IGURE 7     ...
  • Page 14: Operating Of The Eco Energetic Contactor

    5.8  OPERATING OF THE ECO ENERGETIC CONTACTOR     Depending on heat pump instruction (heating required)  (If connected to the electrical box and the contactor)    NOTE: The magnetic contactor is used to intelligently control pool pump while providing better energy efficiency of  your heat pump. (FIGURE 7)    The HP727S features an adjustable minimum filtration period (FIL).    A daily 24‐hour cycle is divided into 6 periods of 4 hours (240 minutes).    The adjustable setting values represent the minimum total daily hours that filtration is required.    FIL PARAMETER SETTINGS  (If connected  to electrical box)    2 hours to OFF  ON  23 hours  Pump operates between 2 and  Pump is always OFF  Pump is always ON.  23 hours a day.      In OFF mode, the circulating pump needs to be always on or programmed by an external timer.    In ON mode, the circulating pump is always on.    The minimum filtration time selector is divided into 6 equal periods per day. E.g. Selection of 4 h ours ÷ 6 periods = 40  minutes per period. The circulating pump will therefore operate 40 minutes of each period of 4 h ours.    The minimum filtration time that  can be selected is 2 hours (6 periods of 20 minutes each).    When the circulating pump is ON, if there is a ...
  • Page 15: Heat Pump Maintenance

    .0  HEAT PUMP MAINTENANCE     WARNING  SAFETY TIPS    A certified electrician should perform all electrical connections (see the high voltage connection diagram).    Always disconnect the heat pump before:   • Opening the access panel  • Cleaning the swimming pool filter  • Cleaning the cabinet  • Cleaning the evaporator    Never sit or place heavy objects on the heat pump.    ever put objects in or on the prote ctive grille in order to avoid any risk of injury or breakage    Inspect and clean the pool filter regularly to ensure  adequate wa ter flow to the heat pump.    Inspect the evaporator and clean it by rinsing carefully, using a garden hose to direct a jet of water from the top  to the bottom to prevent grass, leaves or other objects from blocking the evaporator.    Clean  the  heat  pump  cabinet  with  mild  soa p  (dishwashing  soap).  Do  not  use  abrasive  products  or  products  containing bleach. ...
  • Page 16: Winterizing

    It  is  very  important  that  all  water  connections  to  the  pool  are  disconnected  (bypass  valve  or  other)  to  allow  complete drainage of the heat pump.      Rinse the inside of the heat exchanger cylinder with a stream of city water for about 15 minutes to make sure  chlorine does not remain on the exchanger and cause premature wear to the heat pump. Block the water intake  or outlet and tilt the heat pump to the rear  to remove any excess water    Block the water intake and outlet with rags or plastic to prevent access by sm all rodents or other animals.     is always a good idea to cover the heat pump with the NIRVANA tarpaulin for additional protection, see with your  dealer  for more information.    NOTE:  When you tilt the heat pump, do not tilt more than 0‐35° and always carry it vertically.   3   RESTARTING    Visually inspect the heat pump.  Clean the swimming pool filter.  Balance the PH Level of the pool water. ...
  • Page 17: Operation Of The Electronic Card

    9.0  OPERATION OF THE ELECTRONIC CARD    9.1  FRON T PANEL DESCRIPTION (B & E‐SERIES)      1  Displays the current temperature of water. According to the programming, it can post other  parameters   2  Button  `SET’ which is used to move in the various menus 3  Button ‘INCREASE’ which is used to increase the temperature of water  4  Button `DECREASE' which is used to decrease the temperature of water  5  The green light means that we are in heating mode of the swimming pool 6  The red light means that the Nirvana unit is in operation 7  The green light means that we are in heating mode of the spa    ...
  • Page 18: Front Panel Description (C-Series)

    9.2  FRONT PANEL DESCRIPTION (C‐SERIES)    1  Displays the current temperature of the water. 2  Button 'SET' which is used to move through menus 3  Button ‘INCREASE’ which is used to increase the temperature of water  4  Button `DECREASE' which is used to decrease the temperature of water  5  The yellow light means we are in the POOL mode 6  Means we are in HEATING mode  7  Means the compressor is running    WARNING    The pump will go on and then the current water temperature will be displayed.  The current temperature displayed is kept in memory and displayed for 5 minutes until the water temperature sensor  has sampled the circulating water. After 5 minutes, the water temperature is automatically updated and displayed.  ADJUSTING DESIRED TEMPERATURE (B,C &E‐SERIES)    Settings:     Pool  OFF, 61° F  à 95° F OFF, 16° C à 35° C SPA option  OFF, 61° F à 104° F  OFF, 16° C à 40°C    The control is shipped set to OFF in POOL and SPA mode. (option)  The heat pump stops automatically if a setting below 61° F / 16°C is selected.  In OFF mode, the control will display the water temperature.  Use the SET key to select POOL or SPA mode.     Use the ↑ key to increase the desired setting to above 61° F / 16°C.  The heat pump compressor operates automatically if a setting above 61° F / 16° C is selected. ...
  • Page 19: Selection Of Mode (Model C95 Only)

    9.3   SELECTION OF MODE (MODEL C95 ONLY)    To keep the unit in the HEAT MODE ONLY: Press the "SELECT" until "ACH" appears and press the arrow keys until  "HEA" appears. Thereafter it remains only to choose the desired temperature. This feature allows you to control the  minimum level desired. The unit will heat the water until the desired temperature is reached.    To keep the unit in COOLING MODE ONLY: Press the "SELECT" until "ACH" appears and press the arrow keys until  "COL" appears. Thereafter it remains only to choose the desired temperature. This feature allows you to control the  desired maximum degree. The unit will cool the water until the desired temperature is reached.    To put the unit in AUTO MODE: Press the button "SELECT" until "ACH" appears and press the arrow keys until "AU"  appears. Thereafter it remains only to choose the desired temperature. This function keeps water at desired  temperature. In other words, it will heat or cool water until the water temperature reaches the degree selected.    BACKWASH OPERATIONS    1. Carry out the backwash procedure as follows:    2. Turn OFF the power to the pump (with power supply or (FIL = OFF, POL = OFF and SPA OFF)).  3. Prepare the system for backwash and power ON the pump (with power supply or (FIL = ON)).  4. The circulating pump will go ON and the controller will not check for 5 minutes if water flow is present at the  flow switch.    5. You will have 5 minutes of uninterrupted water flow to do the backwash.  6. Stop the circulating pump (use the power supply or FIL=OFF).  Normally, when the circulating pump is required for this operation and there is no water flow detected at the control,  the pump will automatically turn OFF. This procedure will give a 5 minute period of uninterrupted water flow before  the circulating pump turns OFF.    CHANGING THE DISPLAY FROM F° TO C°    Factory defaults are in F°.    Press and hold down the SET key until the message POL appears. ...
  • Page 20: Technical Information

        10.0  TECHNICAL INFORMATION    MODEL / FEATURES  B50  E60  E75  E95  E116  C95  C110  HEATING CAPACITY  45,720 BTU  57,000 BTU  74,000 BTU  96,000 BTU  116,000 BTU  90,500 BTU  110,000 BTU  PERFORMANCE (COP)  5,41  6,21  6,19  6,14  6  5,8  5,2  MAXIMUM BREAKER  50  50  30  30  40  50  50  POWER SUPPLY    240v 1ph  240v 1ph ...
  • Page 21   11.1  REGISTRATION OF WARRANTY    Although  NIRVANA  HEAT  PUMP  INC.  heat  pumps  of  are  of  high  quality  and  are  subject  to  all  appropriate  controls  during  manufacturing,  it  is  important  to  fill  out  the  registration  card  WITHIN  TEN  DAYS  OF  PURCHASE to provide us with your contact information (name and addresses) so that we are able to contact  you in the event of a product recall. ...
  • Page 22   IMPORTANT   READ THE ATTACHED LIMITED WARRANTY CERTIFICATE     11.3  MANUFACTURER’S LIMITED WARRANTY      NIRVANA    offers  a  limited  warranty  against  defects  in  the  operation  of  the  heat  pump.  This  HEAT  PUMP warranty becomes effective from the date of installation (with a proof of installation provided by the dealer)  and is valid only for new heat pumps. (residential sector only)    The heat pump must be installed according to manufacturer specifications and must be operated under the  conditions of normal use recommended by the manufacturer.  . agrees to repair or replace at its own discretion any  During the life of the warranty NIRVANA  HEAT PUMP  parts deemed defective by the technician or authorized representative of NIRVANA  , insofar as  HEAT PUMP  they have been used under appropriate conditions; any and all replacement parts must be original parts or  approved by NIRVANA  . for all swimming pool heat pumps manufactured by NIRVANA  HEAT PUMP ...
  • Page 23   WARNING  This agreement may be transferred to a second owner at the same address by sending a written request to  NIRVANA  heat  pump  Inc.  accompanied  by  a  check  or  money  order  in  the  amount  of  100.00$  (+  Canadian  taxes) to cover transfer and administrative fees.      WARNING  REPLACEMENT OR REPAIR PURSUANT TO THE LIMITED WARRANTY CONSTITUTES THE SOLE REMEDY.    11.4  WARRANTY EXCLUSIONS       IMPORTANT   THIS LIMITED WARRANTY DOES NOT COVER DAMAGE OR IMPROPER OPERATION  CAUSED BY :        Improper capacity, use or maintenance of the heat pump that does not comply with the instructions in  the Owner’s Manual, provincial or state building codes or municipal regulations.  Improper  installation  of  the  heat  pump  or  installation  performed  by  persons  not  authorized  by  the ...
  • Page 24 12.0  TROUBLESHOOTING GUIDE    MAINTENANCE & TROUBLESHOOTING CODE      PROBLEM  CAUSE  WHAT TO DO  The water flow inside the heat pump is  Check that the circulating pump is working;  Digital control displays  insufficient  Check that the bypass valves are properly  CODE: FLO  There is no water circulation inside the  positioned;  heat pump  Check the skimmer (no blockage);  The flow switch is defective  Check the water pressure gauge of the heat  pump, it should read between 10 and 15  psi.  The heat pump flow switch has cut off  The heat pump will not re‐start after one of  Digital control displays  three (3) times in the same hour for one  the protection devices shuts it down for  CODE: FL3  of the reasons above  the third time in the same hour;    Close the circuit breaker to reset the heat  pump.  The heat pump is in de‐icing mode  Wait until the end of the de‐icing cycle. The  Digital control displays  heat pump will restart automatically  CODE FS  Ventilation on the evaporator is  Check that the evaporator is not blocked by ...
  • Page 25 The de‐icing sensor is not properly  Call your dealer  Digital control displays  connected or is not receiving power  CODE DPO  The water temperature sensor is not  Call your dealer  Digital control displays  properly connected or is not receiving  CODE PO  power  The de‐icing sensor is defective  Call your dealer  Digital control displays  CODE DPC  The water temperature sensor is  Call your dealer  Digital control displays  defective  CODE PC  Electrical problem in the compressor  Call your dealer  Heat is needed, the fan is  circuit  functioning, no code is  displayed and the  Capacitor defective  compressor does not  Compressor defective  start               ...
  • Page 26   WATER COMING FROM THE HEAT PUMP...  Is it a leak or just condensation from normal operation? Here's how to find out.  Shut the heat pump off, leaving the circulation pump running. Within a few hours, there should be a marked  reduction in the amount of water seen around the bottom of the heat pump. If the water appears to be drying up, the  water is probably harmless condensate, indicative of normal operation.    TECHNICAL ASSISTANCE SERVICE   SERVICE CALL    NIRVANA heat pump Inc. will authorize service only on heat pumps that are under warranty.    Costs incurred by a refrigeration technician for a service call that was not authorized beforehand must be borne by  the CUSTOMER.      CAUTION    BEFORE PLACING A CALL FOR SERVICE      To  avoid  situations  where  a  service  call  or  repair  is  not  covered  by  the  warranty  as  described  in  the  owner’s ...
  • Page 27 At all times:    There is always a possibility of condensation, especially if conditions are humid. (Condensation is the result of hot,  humid  air  coming  into  contact  with  the  cold  surface  of  your  heat  pump’s  coil).  Condensation  should  not  be  confused with leaking.      The breaker or the fuse is ON and the heat pump is properly connected (green indicator light on the unit).   The circulating pump is running at full capacity, is the right size (1.5 HP is recommended) and the filters are clean.    The gauge on the heat pump indicates between 10 and 15 psi, for sufficient flow (carry out a backwash).  Service valves (water intake and water outlet) are in the open position and the bypass valve is closed.  The thermostat is set high enough.  The design of the plumbing is in keeping with best practices.  The  fins  are  not  blocked  by  pollen,  leaves,  grass,  etc.  (clean  with  a  garden  hose,  from  top  to  bottom  and  not  towards the inside of the machine). ...
  • Page 28       Retailer:        Installation Date:        Please call us toll‐free at: 1(866) 443‐4476. We are here to serve you from 8 a.m. To 4: 30 p.m. EST, Monday through  Friday. If calling after hours leave a short message. Be sure to leave your name and daytime telephone number.    If you prefer, you may fax the information to: (819) 539‐4431. Be certain to provide your full address and daytime  telephone number.    Thank  you!      NIRVANA CHAUFFE‐PISCINE INC.  4162,    RUE  URRILL   HAWINIGAN  UÉBEC   ANADA 6T6    (819) 539‐8698 (819) 539‐4431  ÉL HONE    ...
