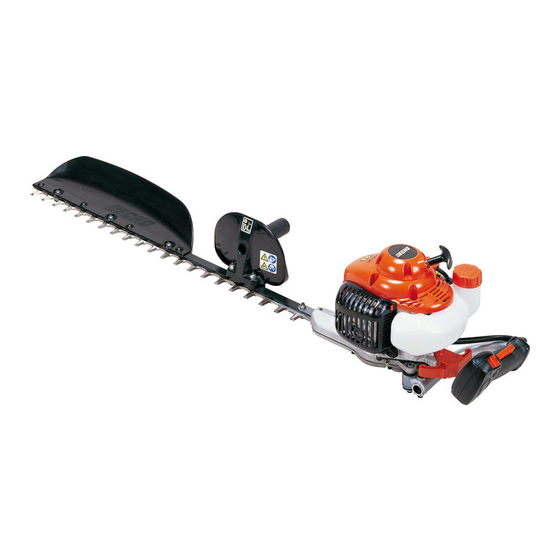

- Page 1 ENGLISH OPERATOR’S MANUAL HEDGE TRIMMER HC-30ES HC-30ESW WARNING READ INSTRUCTIONS CAREFULLY AND FOLLOW RULES FOR SAFE OPERATION. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY.
-
Page 2: Table Of Contents
INTRODUCTION Feature of this model: “ES” START ECHO Hedge Trimmers, Models HC-30ES and HC- 30ESW are lightweight, high performance, petrol “ES” START generates enough revolving power to engined unit designed for hedge and shrub trimming. rotate crankshaft up to a speed to ignite the engine and Do not use this unit for any purpose other than bring almost no kickback. -
Page 3: Decals And Symbols
Make sure the decal is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. Part number X505-002030... -
Page 4: Safety
• If you have any questions or problems, please contact your ECHO dealer. • Be familiar with all the controls and the proper use of the machine. -
Page 5: Protective Equipment
PRECAUTION AGAINST VIBRATION standards. AND COLD IT IS BELIEVED THAT A CONDITION CALLED • ECHO advises wearing hearing protection at all times. RAYNAUD’S PHENOMENON WHICH AFFECTS THE FINGERS OF CERTAIN INDIVIDUALS IS BROUGHT ABOUT BY EXPOSURE TO COLD AND VIBRATION. -
Page 6: Operating Techniques
OPERATING TECHNIQUES • Before trimming, check the area and remove all • Do not force the blades and only move as quickly as the blades will allow. obstacles and objects that could be thrown. • Stop the engine and disconnect from ignition cable before: - cleaning or when clearing a blockage;... -
Page 7: Description
DESCRIPTION HC-30ES HC-30ESW 1. Operator’s manual - Included with unit. Read 10. Fuel tank cap - For closing the fuel tank. before operation and keep for future reference to 11. Fuel tank - Contains fuel and fuel filter. learn proper, safe operating techniques. -
Page 8: Operation
• Recommended mixture ratio; 50 : 1 (2 %) for ISO-L- EGD Standard (ISO/CD 13738), JASO FC, FD grade and ECHO Premium 50 : 1 oil. - Do not mix directly in engine fuel tank. - Avoid spilling petrol or oil. Spilled fuel should always be wiped up. -
Page 9: Starting Cold Engine
SAFE STARTING TECHNIQUES DANGER NEVER TRY TO START THE ENGINE BY POSITIONING YOURSELF ON THE BLADE SIDE. WARNING BE SURE TO ACTIVATE THE BRAKE BEFORE STARTING THE ENGINE. NOTE • Check unit for loose nuts, bolts and screws before starting. •... -
Page 10: Starting Warm Engine
(After starting engine, release brake before commencing to use the unit.) Brake lever 9. Put fingers on the right side of brake lever. 10. Return lever in the arrow direction until it clicks. Releasing brake The brake is released this way. Depress throttle trigger lockout and gradually squeeze throttle trigger. -
Page 11: Stopping Engine
STOPPING ENGINE Ignition switch 1. Release throttle trigger and allow engine to idle. 2. Place ignition switch in “STOP” position. WARNING IF ENGINE DOES NOT STOP, MOVE CHOKE LEVER TO CLOSED POSITION. CHECK AND REPLACE THE IGNITION SWITCH BEFORE Throttle trigger STARTING THE ENGINE AGAIN. -
Page 12: Maintenance And Care
MAINTENANCE AND CARE AREA MAINTENANCE PAGE BEFORE USE MONTHLY Air Filter Clean/Replace • Fuel Filter Inspect/Clean/Replace • Spark Plug Inspect/Clean/Adjust/Replace • Carburettor Adjust/Replace and adjust • Cooling System Inspect/Clean • Silencer Inspect/Tighten/Clean • Gear Housing Grease • (15 - 20h) Starter Inspect •... -
Page 13: Trouble Shooting
• Clean or replace cranks carburettor carburettor • Fuel line clogged • Clean • Carburettor • Ask your ECHO dealer Fuel at cylinder No fuel at • Carburettor • Ask your ECHO dealer cylinder Silencer wet with • Fuel mixture is too rich •... -
Page 14: Servicing
SERVICING • If you have any questions or problems, please contact your ECHO dealer. CLEANING AIR FILTER (Before Each Use) NOTE • If filter is excessively dirty or no longer fits properly, replace it. • Ensure that the filter is completely dry before reinstalling it. -
Page 15: After Each Use
(As Needed) CAUTION If you experience any problems with sharpening the blade, we recommend that you take it to you ECHO dealer. NOTE Use a disk grinder, endless abrasive belt, or smooth flat file. 1. Remove all nuts and bolts securing cutters to frame bar. -
Page 16: Adjusting Carburettor
ADJUSTING CARBURETTOR (As Required) T: Idle speed adjuster WARNING WHEN CARBURETTOR ADJUSTMENT IS COMPLETED, BLADES SHOULD NOT MOVE AT IDLE, OTHERWISE SERIOUS PERSONAL INJURY MAY RESULT. Every unit is test run at the factory and the carburettor is fine tuned for maximum performance. Before adjusting carburettor, clean or replace air filter, start engine and run several minutes to bring it to operating temperature. -
Page 17: Storage
• When transferring a product, please deliver it attaching the operator’s manual. • Please contact your ECHO dealer in order to dispose of the product or its parts in compliance with national laws. -
Page 18: Specifications
Two stroke, air-cooled engine oil. 50 : 1 for ISO-L-EGD Standard (ISO/CD 13738), JASO FC, FD grade and ECHO Premium 50 : 1 oil. Ratio 50 : 1 (2 %) Fuel consumption at maximum engine power L / h 0.54... -
Page 19: Declaration Of Conformity
OHME ; TOKYO 198-8711 JAPAN declares that the hereunder specified new unit: PORTABLE HEDGE TRIMMER Brand : ECHO Type : HC-30ES HC-30ESW complies with: *the requirements of Directive 98/37/EC (1998) (use of harmonized standard ISO 10517 (EN 774)) *the requirements of Directive 2004/108/EC (use of harmonized standards EN 50081-1, EN 50082-1, EN 55014 &... - Page 20 7-2 SUEHIROCHO 1-CHOME, OHME, TOKYO 198-8711, JAPAN PHONE: 81-428-32-6118. FAX: 81-428-32-6145. X753-002 50 3 X753 224-660 3 © 2006...
