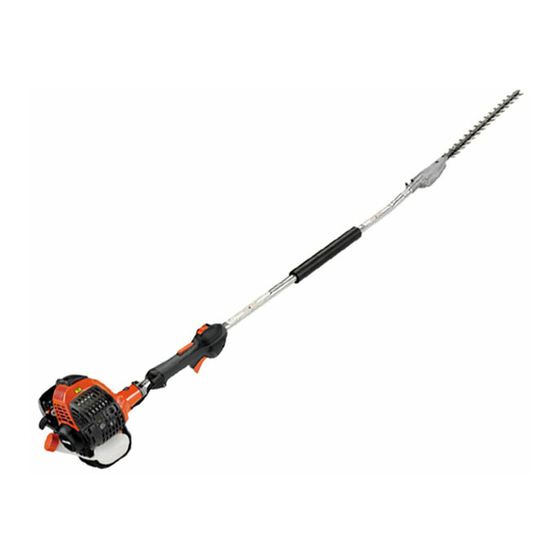

Echo hca-266 shaft hedge trimmer
Hide thumbs Also See for HCA-266:
Table of Contents

Advertisement

Quick Links

X7722271404 / X772000164
Shaft Hedge Trimmer
Operator's Manual
The muffler or catalytic muffler and surrounding cover may become extremely hot.
Always keep clear of exhaust and muffler area, otherwise serious personal injury may
occur.
The engine exhaust from this product contains chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
Users of this equipment risk injury to themselves and others if the unit is used
improperly and/or safety precautions are not followed. ECHO provides an operator's
manual and a safety manual. Both must be read and understood for proper and safe
operation. Failure to do so could result in serious injury.
Specifications, descriptions and illustrative material in this literature are as accurate as known at the time
of publication, but are subject to change without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
X7502028600
© 10/2014 ECHO Inc.
HCA-266
Burn Hazard
