Icom IC-PW1 Service Manual page 127

[DET BOARD]
ORDER
REF NO.
NO.
EP5 6910011330 Terminal OT-009 M3
EP6 6910011330 Terminal OT-009 M3
EP7 6910011330 Terminal OT-009 M3
EP8 6910011330 Terminal OT-009 M3
MP1 8510001080 Shield case (A) SX117
MP2 8510001101 Shield case (A) cover (A)-1
MP3 8510004370 506 Shield plate
MP4 8930048681 Isolating pipe (K)-1
MP5 8930048681 Isolating pipe (K)-1
WS1 8970022630 EX1900 Tefron coaxial cable (2)/DE
WS2 8600035821 EX1900 P01*J01DE-1
[MAIN UNIT]
ORDER
REF NO.
NO.
J1 6510003080 Connector RT01T-1.0B
J3 6510003450 Connector B09B-EH-S
J4 6510003480 Connector B12B-EH-S
J6 6510003410 Connector B05B-EH-S
J8 6510003490 Connector B13B-EH-S
J9 6510003410 Connector B05B-EH-S
J10 6510003450 Connector B09B-EH-S
J14 6510017650 Connector 52045-1045
J17 6510003390 Connector B03B-EH-S
J18 6510003410 Connector B05B-EH-S
J19 6510003420 Connector B06B-EH-S
J20 6510003430 Connector B07B-EH-S
J21 6510003440 Connector B08B-EH-S
J22 6510003390 Connector B03B-EH-S
S3 2260002220 Switch S-1010A
S4 2260002220 Switch S-1010A
MP1 8510000230 220 Shield case
MP2 8510000241 220 Shield case cover-1
MP3 8510005581 644 Shield plate-1
MP4 8510011820 1900 shield plate
RL2 6330001320 Relay AHY103
RL3 6330001320 Relay AHY103
[H-NET BOARD]
ORDER
REF NO.
NO.
EP2 6910011340 Terminal OT-010 M3
RL1 6330000570 Relay AR-39251
RL2 6330000570 Relay AR-39251
RL3 6330000570 Relay AR-39251
RL4 6330000570 Relay AR-39251
RL5 6330000570 Relay AR-39251
RL6 6330000570 Relay AR-39251
RL7 6330000570 Relay AR-39251
RL8 6330000570 Relay AR-39251
RL9 6330000570 Relay AR-39251
RL10 6330000570 Relay AR-39251
QTY.
DESCRIPTION
1
1
1
1
1
1
1
1
1
1
1
QTY.
DESCRIPTION
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
QTY.
DESCRIPTION
1
1
1
1
1
1
1
1
1
1
1
[L-NET BOARD]
ORDER
REF NO.
NO.
EP1 6910011340 Terminal OT-010 M3
RL1 6330000570 Relay AR-39251
RL2 6330000570 Relay AR-39251
[C-NET BOARD]
ORDER
REF NO.
NO.
RL1 6330001440 Relay VS-12TBU-VD3
RL2 6330001440 Relay VS-12TBU-VD3
RL3 6330000570 Relay AR-39251
RL4 6330001490 Relay VB-12MBU-UC (UL3)
RL5 6330001490 Relay VB-12MBU-UC (UL3)
RL6 6330001490 Relay VB-12MBU-UC (UL3)
RL7 6330000570 Relay AR-39251
RL8 6330001490 Relay VB-12MBU-UC (UL3)
RL9 6330001490 Relay VB-12MBU-UC (UL3)
RL10 6330001490 Relay VB-12MBU-UC (UL3)

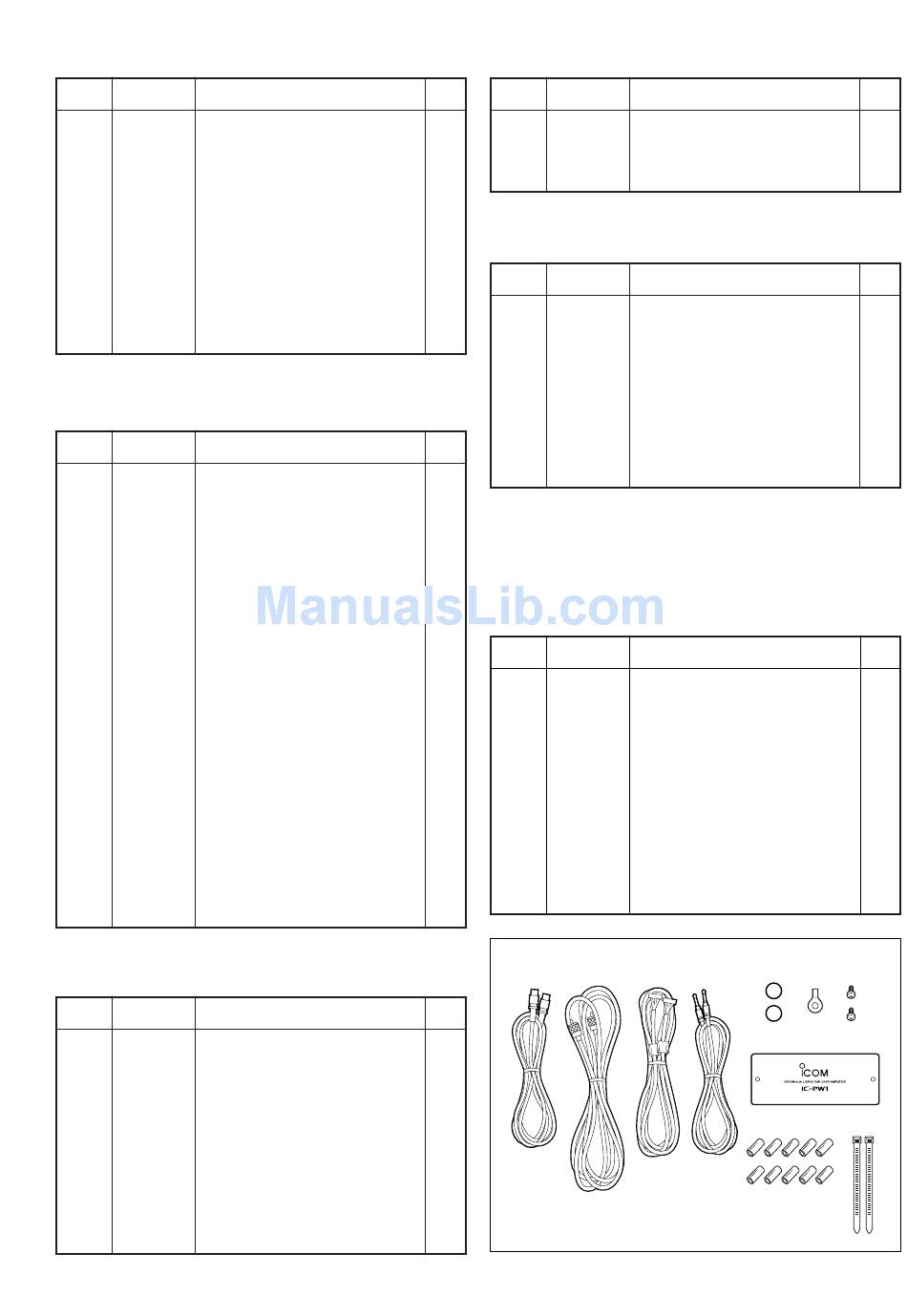

[ACCESSORIES]
ORDER
REF NO.
NO.
W1 8900009680 Cable OPC-960
W2 8900002260 Cable OPC-104 B
W3 8900002270 Cable OPC-125 B
W4 8900007290 Cable OPC-718
EP1 6510020330 Terminal 5.5-5 pin
EP2 6910010480 DL-7C OR-31-15-19H [USA], [EUR] 10
MP1 8310039530 1900 front plate
MP3 8930043080 Rubber (hole bush)
8810004430 Screw PH M3 × 6 ZK
MP4
MP6 8950001980 JIG cable tie-140
MP7 8310045230 1900 Cable caution rabel(BJ)
W2 W3
6 - 8
DESCRIPTION
DESCRIPTION
DESCRIPTION
W1 W4 MP3 EP1
MP1
EP2
QTY.
1
1
1
QTY.
1
1
1
1
1
1
1
1
1
1
QTY.
1
1
1
1
1
1
2
2
2
1
MP4
MP6
