Summary of Contents for Ubiquiti UniFi UVC-Pro

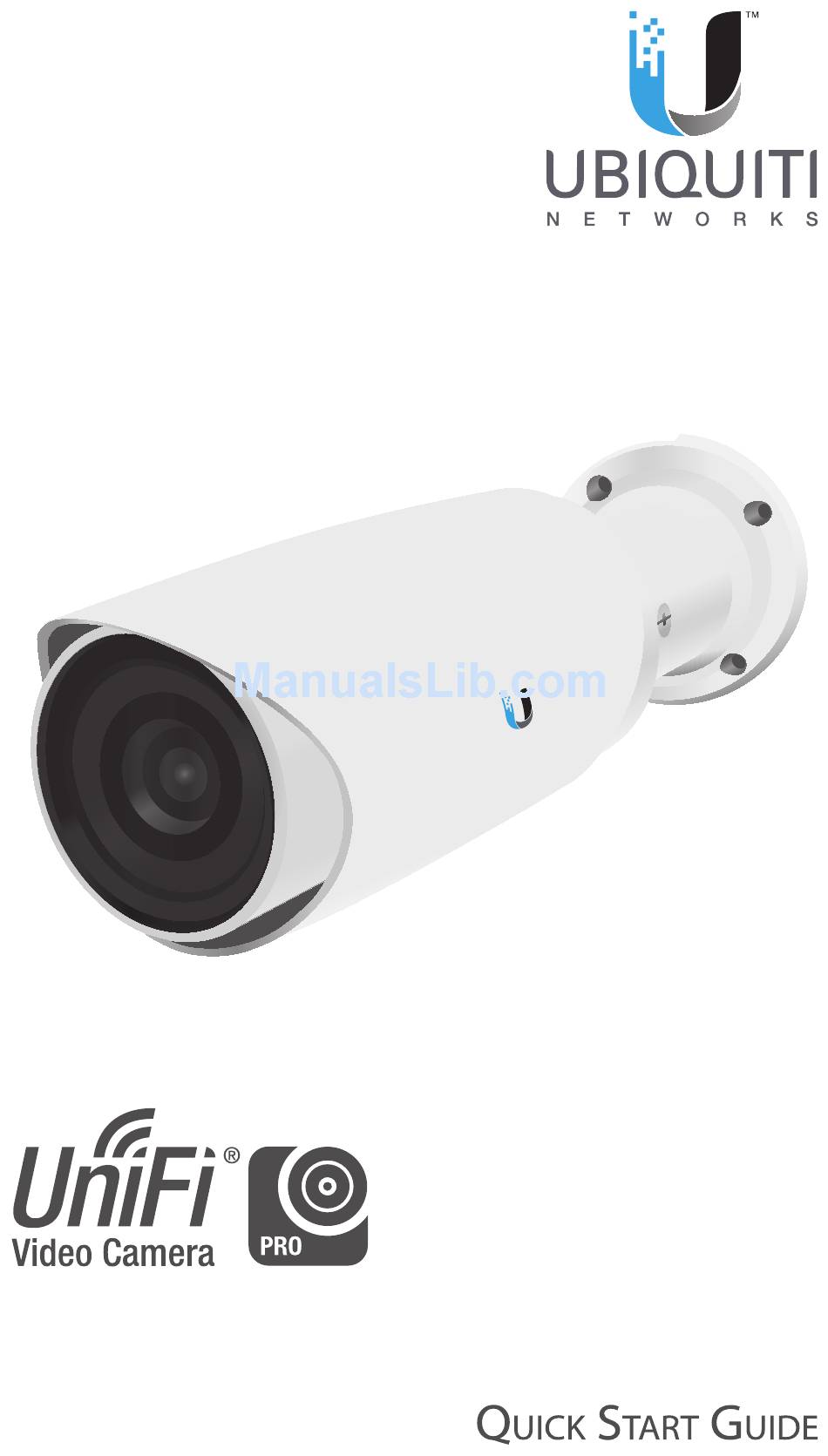

- Page 1 1080p Indoor/Outdoor IP Camera with Infrared and 3x Optical Zoom Model: UVC-Pro...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks UniFi® Video ™ Camera PRO. This Quick Start Guide is designed to guide you through the installation of the camera and show you how to access the Camera Configuration Interface. This Quick Start Guide also includes the warranty terms. -
Page 3: Optional Accessories
Optional Accessories Ubiquiti Networks offers additional accessories that can be purchased for use with the UniFi Video Camera PRO. For accessory installation instructions, refer to the Quick Start Guide that accompanies the product. Cable Accessory (UVC-Pro-C) The UniFi Video Camera PRO Cable Accessory provides additional connectivity options for UniFi Video Camera PRO, including audio in/out and mFi®... -
Page 4: Hardware Overview
Hardware Overview Camera Adjustment Adjusts Camera Up or Down Rotates Base Rotates Camera Waterproof Gland The UniFi Video Camera PRO has a waterproof gland for connecting Ethernet. Below are the components that make up the waterproof gland: Ethernet Connector Seal Compression Nut Reset Pins Housing... -
Page 5: Installation Overview
Installation Overview The installation process differs depending on if you are mounting the camera on a wall or on a pole. Follow the instructions for the installation that you are performing. Wall Mount 1. Remove the adhesive Mounting Template from the backing and place the label on the wall where you want the camera. - Page 6 4. Thread the cabling through the wall or one of the recessed areas on the Mounting Bracket Base. Note: There are two recessed areas for an Ethernet cable on the Mounting Bracket Base. Place the Ethernet cable in the recessed area closest to your power source.
-
Page 7: Pole Mount
Pole Mount To mount the camera on a pole, use the included Metal Strap: 1. Open the Metal Strap by turning the locking screw counter-clockwise. 2. Slide the Metal Strap through the back of the camera. 3. Wrap the Metal Strap around the pole. Use a screwdriver or 7 mm socket drive to turn the locking screw clockwise and securely fasten the strap to the pole. - Page 8 Connecting Power and Ethernet 1. Disassemble the waterproof gland by turning the Compression Nut counter-clockwise. 2. Seperate the Seal from the Housing. 3. Insert the Ethernet cable through the Compression Nut and the Housing. Ensure the threads of the Compression Nut face the notches on the Housing.
- Page 9 5. Slide the Seal into the Housing. 6. Connect the Ethernet cable to the Ethernet Connector on the camera. Optional Step: The included Ethernet Sleeve can be placed over the Ethernet connector to allow the cable to be removed easier.
- Page 10 7. Enclose the waterproof gland by turning the Compression Nut clockwise. Turn the Compression Nut until the Seal extrudes slightly from the end of the Compression Nut. Seal Note: The Seal should be extruding from the Compression Nut when properly tightened to prevent water from entering.
- Page 11 9. Connect the other end of the Ethernet cable to one of the following: • PoE Adapter Connect the camera to the Ethernet port labeled POE on the included PoE Adapter. • TOUGHSwitch PRO or Carrier Connect the camera to a port with 48V power enabled and skip steps 10 and 11.
- Page 12 11. Connect the other end of the power cord to a power outlet. UniFi Video The UniFI Video software is pre-installed on the UniFi NVR (sold separately). If you do not have the UniFi NVR, you can download and install the latest version of the UniFi Video software at downloads.ubnt.com/unifivideo;...
- Page 13 Camera Configuration Interface Access the Camera Configuration Interface if you have not yet installed the UniFi Video software, or plan to use the UniFi Video Camera as a stand-alone camera without the UniFi Video software. 1. Ensure that your host machine is connected to the same LAN as the UniFi Video Camera.
- Page 14 5. The Main screen will appear and you should see a live video stream from the UniFi Video Camera. Adjusting the Camera View Adjust Camera Up or Down Using Large Hex Key Rotate Base Rotate Camera Use Small Hex Key Ensure you have removed the protective plastic film from the camera lens.
-
Page 15: Specifications
Specifications UniFi Video Camera PRO Dimensions 322 x 100 x 100 mm (12.67 x 3.93 x 3.93") Weight 2.15 kg (4.73 lbs) Ports (1) 10/100 Ethernet Port Sensor 3M WDR Sensor Lens 3X Optical Zoom, f= 3-9 mm Infrared Buttons Factory Reset Button Power Method Passive PoE (48V, 0.5A), 802.3af... -
Page 16: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not point the camera toward the sun. The sun’s heat can damage the camera’s internal components. WARNING: Avoid using this product during an electrical storm. -
Page 17: Limited Warranty
UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period. -
Page 18: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 19 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 20: Industry Canada
Industry Canada This Class A digital apparatus complies with Canadian CAN ICES-3(B). To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. - Page 21 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 22 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 23: Declaration Of Conformity
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC. -
Page 24: Online Resources
[Swedish] egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Español Por medio de la presente UBIQUITI NETWORKS declara que el UBIQUITI NETWORKS device, cumple con los requisitos esenciales [Spanish] y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
