Optus Set Top Box User Manual page 8

Analogue Composite Video and Analogue
Stereo Audio
This mode delivers Standard Definition view-
ing only. Use this type of connection when
or if your TV display has no other video input
types available.

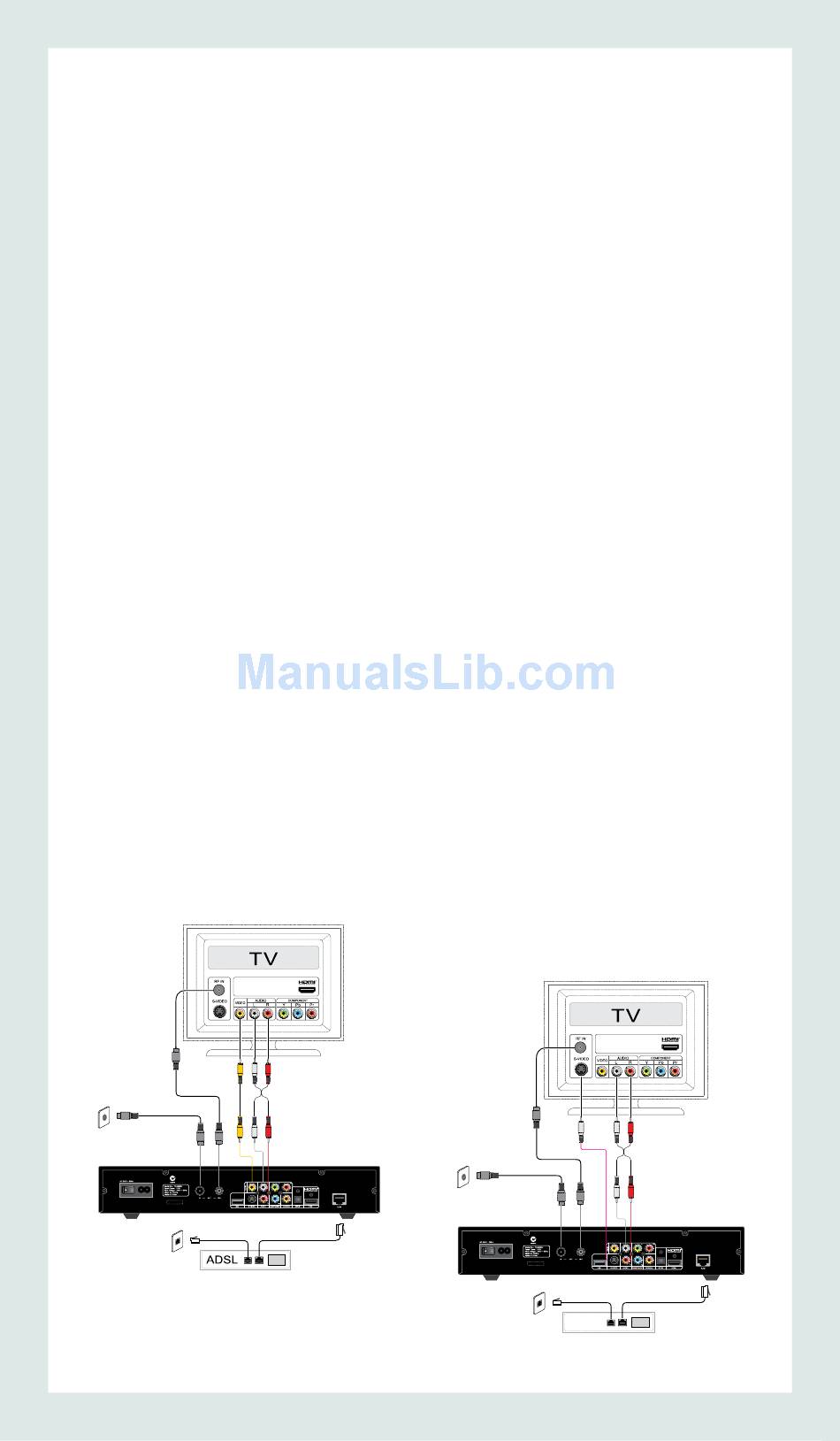

Use the Yellow/Red/White cable when con-
necting.
1. Power cord connection
2. Existing TV antenna cable from wall socket
to Set Top Box (ANT-IN).
TV antenna cable provided with Set Top
Box from Set Top Box (ANT-OUT) to TV.
3. Yellow jack – video
4. White jack – audio (left)
5. Red jack – audio (right)
6. E xisting internet connection to modem/
router or powerline adaptor
7. E thernet cable from modem/router/
powerline adaptor to Set Top Box network
(RJ-45) port
2
2
1
8
3 4 5
6 7
S-Video and Analogue Stereo Audio
This connection mode delivers Standard
Definition viewing only. It requires you to
purchase an S-Video cable that is not supplied
with the Set Top Box. The Red and White ana-
logue audio cables also need to be connected.
Please note that connecting via S-Video is not
supported by Optus TV Customer Care.
1. Power cord connection
2. Existing TV antenna cable from wall socket
to Set Top Box (ANT-IN).
TV antenna cable provided with Set Top
Box from Set Top Box (ANT-OUT) to TV.
3. S-Video jack – S-Video input
4. White jack – audio (left)
5. Red jack – audio (right)
6. E xisting internet connection to modem/
router or powerline adaptor
7. E thernet cable from modem/router/
powerline adaptor to Set Top Box network
(RJ-45) port
2
3 4
2
1
6
5
7
