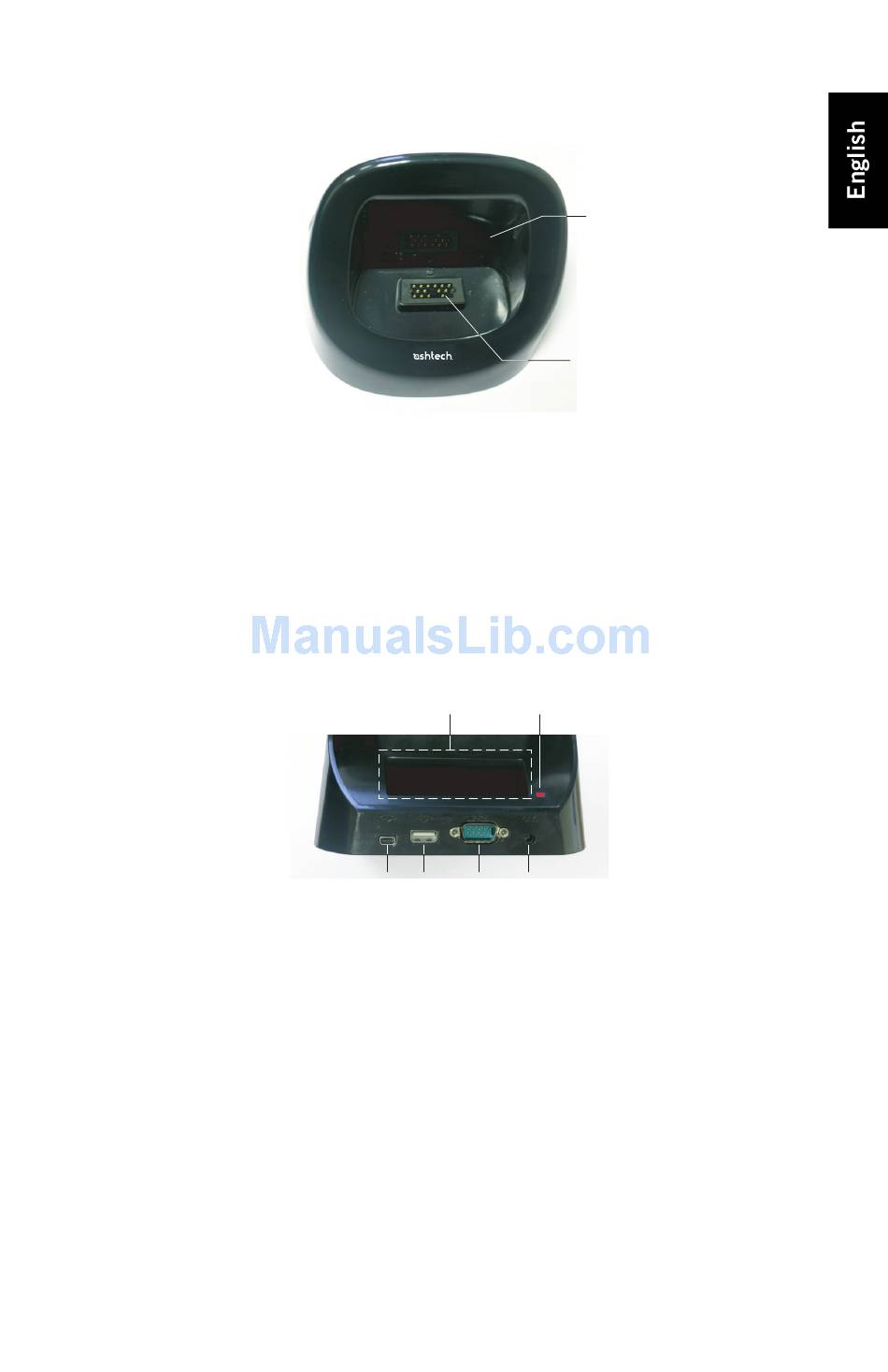

Top View

The top view of the docking station shows the slot [19] in
which to insert the receiver from above the docking station.
At the bottom of the slot is the 16-contact connector [20].
When resting on the docking station, the receiver is
automatically powered from the AC adapter (if connected)
and the charging status of its internal battery tested.

Rear View

[21]
[23] [24]
The following elements can be found at the rear of the
docking station:
• Back slot [21] for charging a second battery
• Charging indicator [22] for back slot:
– Steady red: Battery charging in progress
– Steady green: Battery fully charged
– Off: No battery connected
– Blinking red, every second: Temperature inside battery
exceeds upper limit. Charging suspended until
temperature is back to normal. If persisting, remove
the battery and resume charging later. If this occurs
[19]
[20]
[22]
[25] [26]
