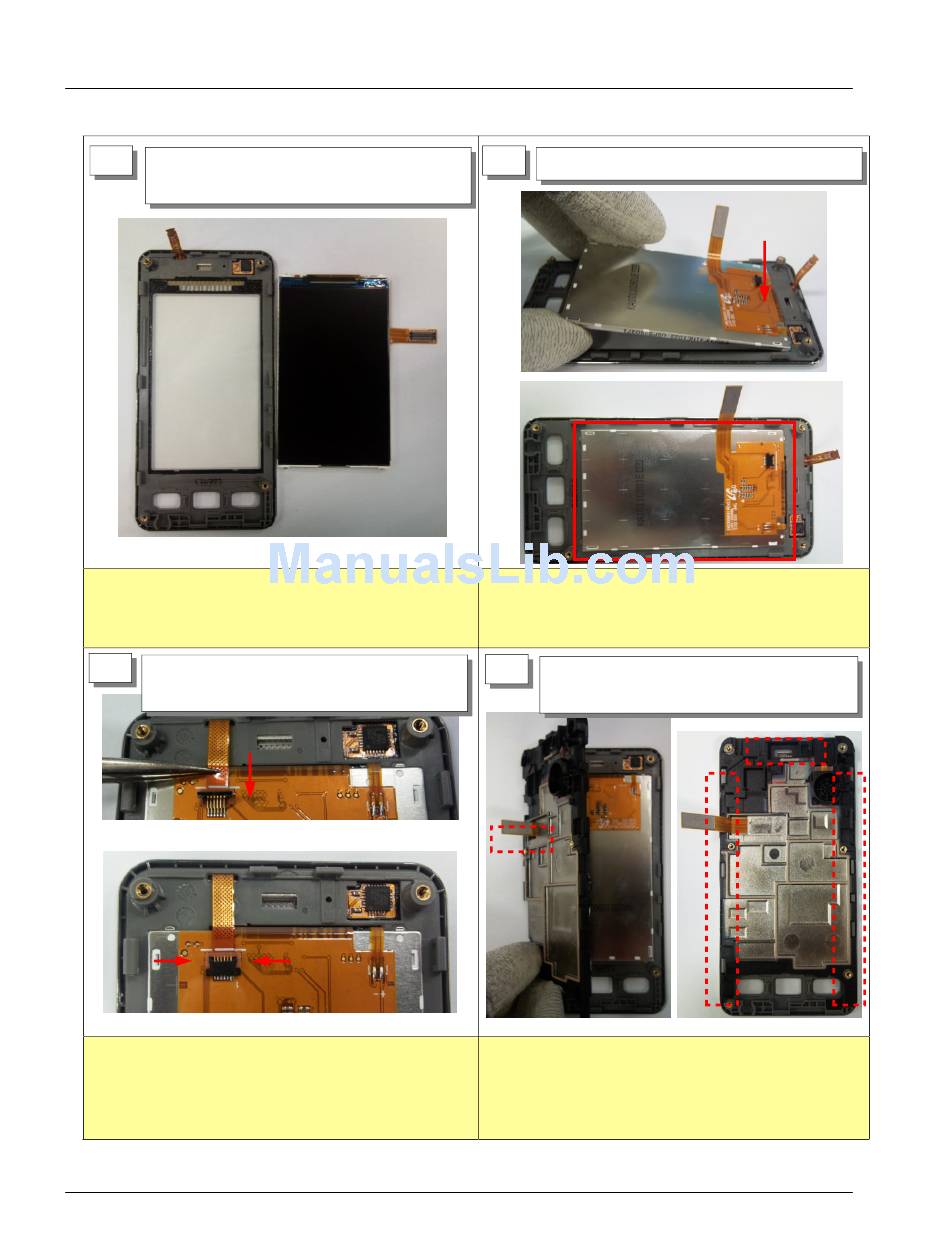

7-1-2. Assembly
1
1) Before put LCD on FRONT, keep eyes
dust on the front.
1) Keep eyes dust on the front.
3
1) Connect TSP FPCB and LCD
CONNECTOR.
1) Be careful not to damage FPCB.
2) follow guideline.
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
2
1) Put LCD on the FRONT from upper line.
1) Be careful dust and damage of components.
4
1) Insert LCD FPCB into hole of BRACKET
and then assemble front hook and bracket.
1) Be careful not to damage FPCB.
2) During assembling HOOK with BRACKET, Be careful
not to damage Bracket.
7-5
7. Level 2 Repair
