7. Level 2 Repair
13

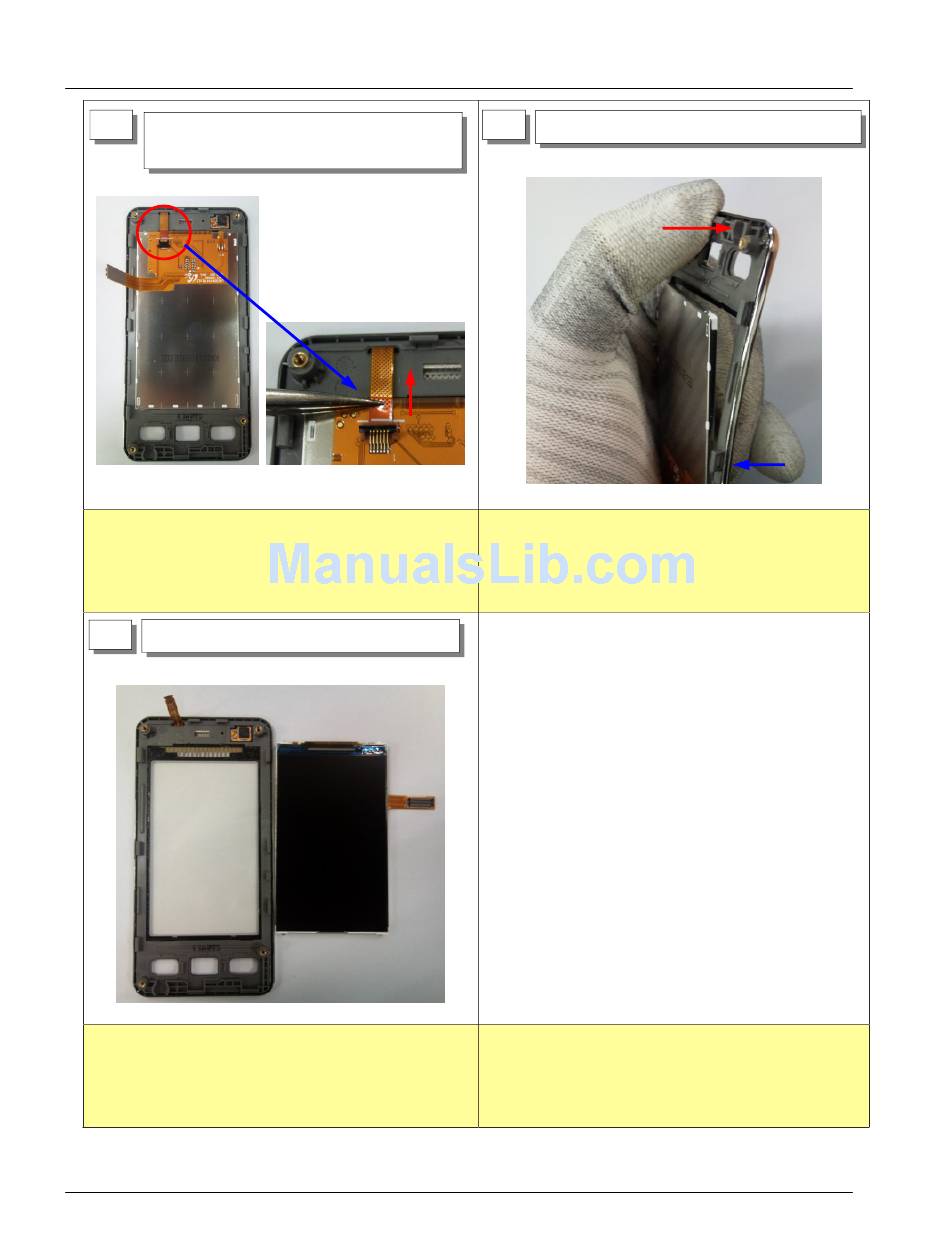

1) Diconnect TSP Connector 를 and take off
FPCB using tweezers.
1) When using tweezers, be careful not to damage
components around FPCB.
15
1) Disassembling completed
1) Be careful not to inflow dust into LCD and TSP
WINDOW.
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
14
1) Take off LCD from FRONT.
1) When disassembling, be careful not to damage LCD.
