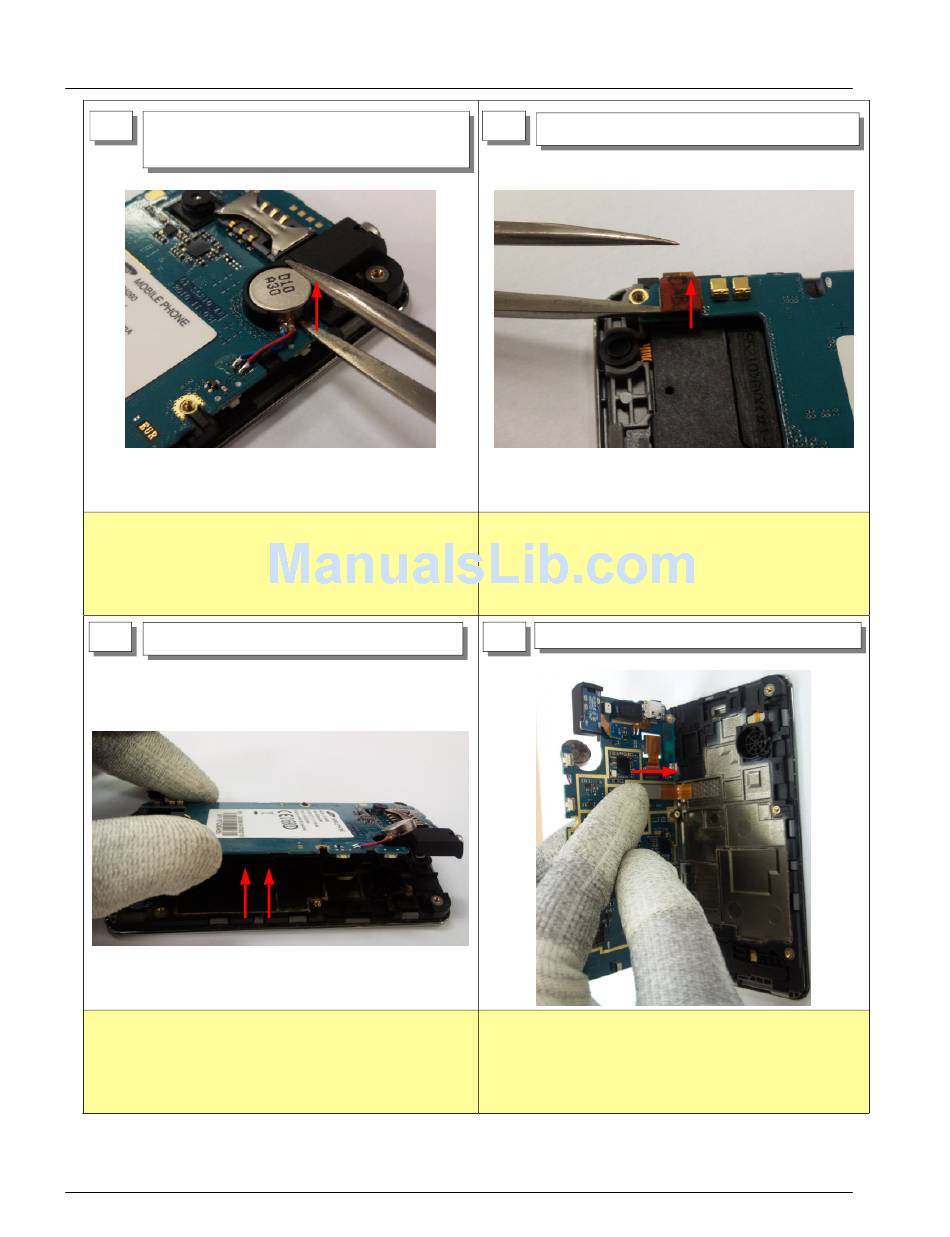

7. Level 2 Repair
5
1) First, take off motor from bracket using
tweezers
1) Be careful not to damage MOTOR WIRE.
7
1) Lift PCB from right side of PBA
1) Be careful not to damage LCD FPCB.
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
6
1) Take off KEY Connector from PBA
1) Be careful not to damage connector and FPCB.
1) Disconnect LCD connector.
8
1) Be careful not to damage components around
connector.
