INSTALLATION

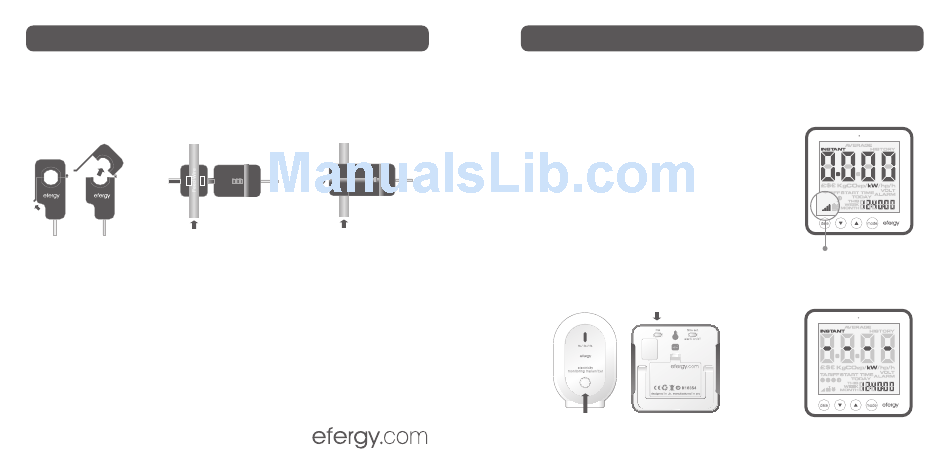

1. FIT THE SENSOR
The sensor needs to be fitted to the live feed cable. Sensors are suitable
for cables up to 12mm in diameter. You should not force the cable to fit.
1. Push the release cap 2. Select the correct
to open the sensor. feed cable, then place
the feed cable into the
top of the sensor.
2. PLUG THE SENSOR CABLE INTO THE TRANSMITTER
Insert the jack on the end of the white wire into any of the three input sockets on the
transmitter. The clip-on sensor acts as a current sensor and relays the current being
drawn in to the home to the transmitter.
If your cables are too big for the sensor you can order XL-sensors at www.efergy.com
8
3. Close the sensor.
The sensor is secure
when a "click" is heard.

LINKING TRANSMITTER AND DISPLAY

1. Ensure three AA batteries are inserted in the transmitter
and three AAA batteries inserted in the display unit.
2. Push the LINK button on the reverse of the display unit.
The transmission signal symbol will flash for one minute.
3. While the transmission signal in the display flashes push
the learn button in the transmitter and wait until the
transmission signal symbol becomes solid.
NOTE: The default value for the transmission frequency
is six seconds. This means the transmitter is sending
information every six seconds. You can change the
frequency from 6s (red light flashing) to 12s (green light)
and to 18s (orange light) pushing and holding the
transmitter button.
link button
learn button
If the LINK is COMPLETED
you will see the transmi-
ssion signal
transmission signal
If the LINK is NOT
COMPLETED you will see
dashes on the display
9
