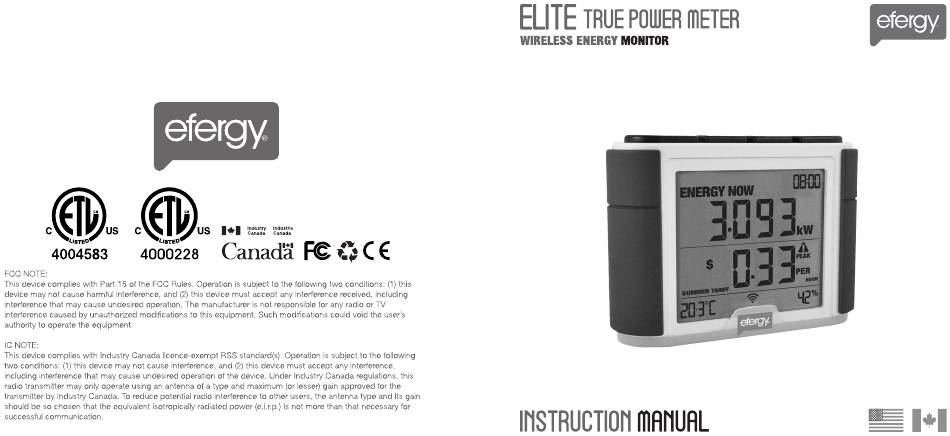

- Page 1 *All values shown in this manual are only examples. Actual figures will vary depending on your consumption.
- Page 4 10 / 15 / 20s ELECTRICITY MONITORING TRANSMITTER Transmitter CT Sensor...
- Page 5 1. Pull the clasp to open the CT sensor 1. O pen and place one CT sensor around each mains cable Do not touch below this level 2. Plug the C T sensors’ jacks into the transmitter 2. Place the CT sensor around the cable 3.
- Page 6 Hold for 2 seconds history backward forward mode/set Wireless energy monitor link button...
-
Page 9: Monitor Setup
MONITOR SETUP INSTANT MODE HISTORY MODE Push the mode/set button to change information being displayed from kW to cost Push the History button to access daily, weekly and monthly stored data. Use the backward (displayed in $). and forward arrow buttons to scroll between dates and compare consumption data. Press the mode/set button to change the information display from kWh to costs and CO emissions. -
Page 10: Technical Information
Move the display closer to the transmitter and press the link button. If the dashes remain on the display this would indicate that the transmitter and receiver are not communicating. Please contact efergy customer services to help solve the problem, at askjohnny@efergy.ca The backlight appears to work sometimes and then not others. - Page 11 ELECTRICITY SYSTEM VOLT SETTING 120V, 3 Wire, Single Phase (TYPICAL RESIDENTIAL SERVICE IN US & CANADA) 240V, 3 Wire, Single Phase 120/ 208V, 3 Wire, 2 Phases of a 3 Phase 120/208V Three wires phase 1 live, phase 2 live, Grid 120V is live to neutral and 208 is phase to phase.
