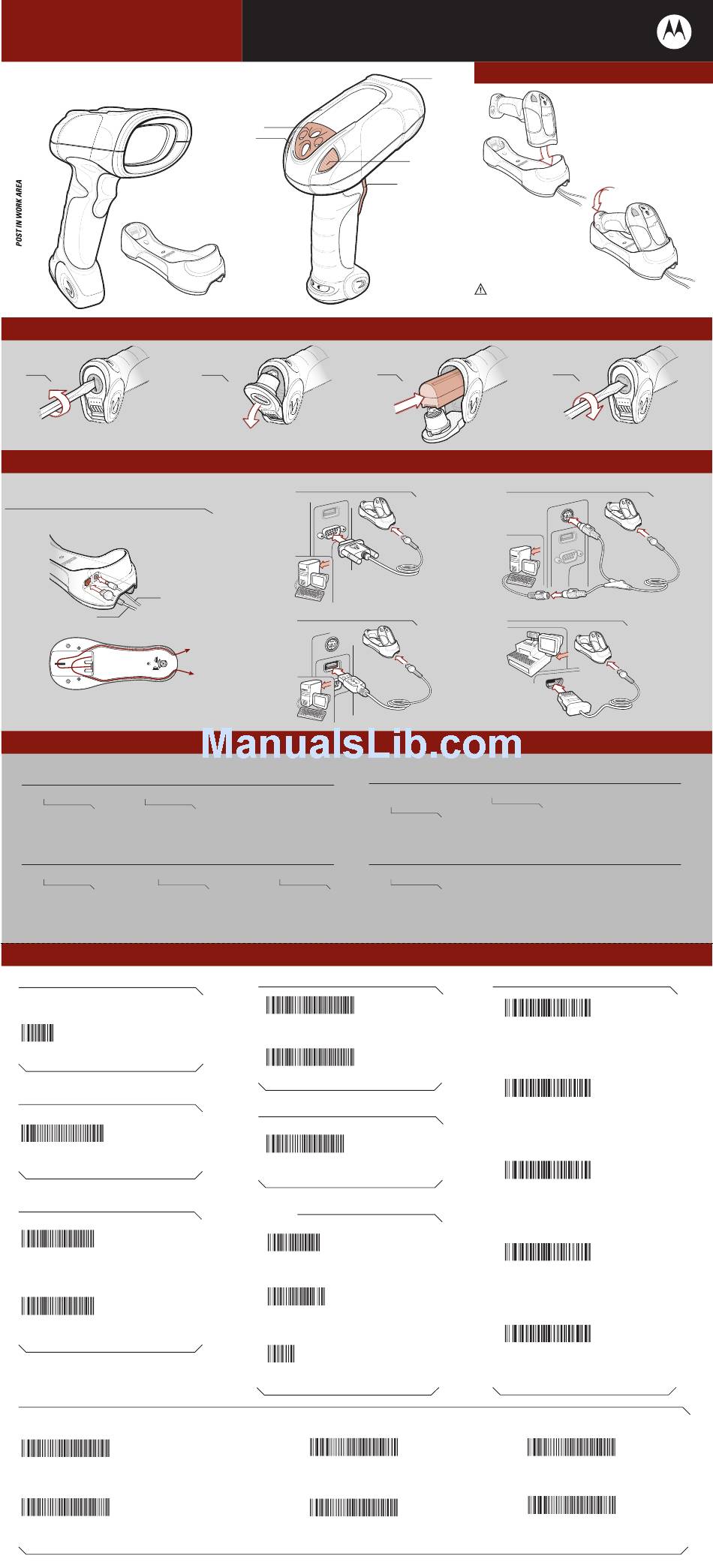

Symbol LS3578 Quick Start Manual

Symbol LS3578
Quick Start Guide
http://www.symbol.com/barcode
See Product Reference Guide for more information
Battery Insertion/Removal
1
Or use coin
Host Interfaces
NOTE: Cables may vary depending on configuration. When using an external power supply, insert the
cable into the cradle first, then insert host cable. Connect power last.
Cable Connection at Cradle
Power
Host
Troubleshooting
Please refer to the Symbol LS3578 Product Reference Guide Troubleshooting section for further information.
Scanner not working
No power to scanner End cap not secured correctly
Check battery Turn end cap to secure
Scanner decoding bar code, but data not transmitting to host
Scanner not paired to host-connected cradle Cradle not programmed for correct host interface
Pair the scanner to the cradle (using the
PAIR bar code on the cradle)
If data is still not transmitting to host, it may be necessary to recycle power on the cradle
Symbol LS3578 Programming Bar Codes
Set Defaults
Note: The scanner connection to the cradle
is dissolved when Set Defaults is scanned.
SET DEFAULTS
Unpairing/Disconnection
UNPAIR/DISCONNECT
USB Host Types
HID KEYBOARD EMULATION
IBM HAND-HELD USB
RS-232 Host Types
STANDARD RS-232
ICL RS-232
1
2
2
Interface cable is loose
Check scanner host parameters or Check for loose cable
edit options connections
IBM 46XX Host Types
PORT 5B
PORT 9B
Keyboard Wedge Host Types
IBM PC/AT and IBM PC COMPATIBLE
SCAN OPTIONS
<DATA><SUFFIX>
ENTER
3
2
4
1 Tether Plate
2 LED Indicators
3 Scan Window
4 Scan Trigger
3
RS-232
USB
Scanner not decoding bar code
Scanner not programmed
for bar code type
Ensure scanner is programmed
to read type of bar code being
scanned
Scanned data incorrectly displayed on host
Paired cradle host communication parameters do not match the host's parameters
Check cradle host parameters or edit options
Carriage Return/Line Feed
NIXDORF RS-232 MODE B
FUJITSU RS-232
Cradle Insertion
Caution: Symbol LS3478 cordless scanners are incompatible with
Symbol STB3508/3578 cradles. Symbol LS3578 cordless scanners are
incompatible with Symbol STB3408/3478 cradles.
4
Keyboard Wedge
IBM 46XX
Bar code unreadable
Ensure bar code is not defaced;
try scanning test bar code of same
bar code type
Radio Communications Host Types
CRADLE HOST
SERIAL PORT PROFILE (SLAVE)
HID PROFILE (SLAVE)
SERIAL PORT PROFILE (MASTER)
HID PROFILE (MASTER)
NIXDORF RS-232 MODE A
OPOS/JPOS
Or use coin
