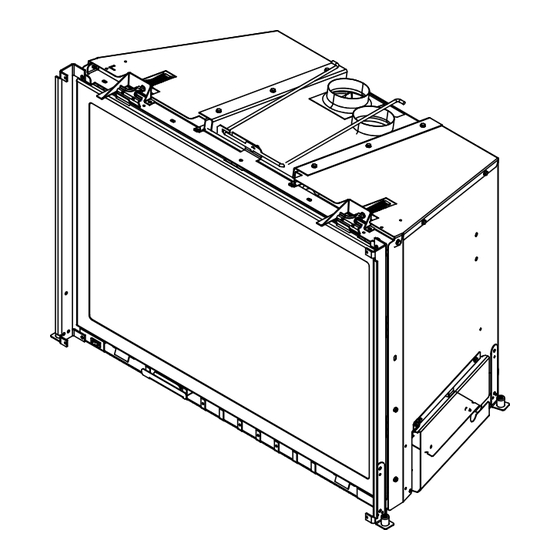

Heat & Glo ESCAPE-I35-F Owner's Manual

Care and operation
Hide thumbs Also See for ESCAPE-I35-F:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT discard this manual!
Model(s):
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certifi ed kit is used.
Owner's Manual

Care and Operation

Heat & Glo • Escape-I35-F, Escape-I30-F Owner's Manual • 2347-981 Rev. G • 10/14
WARNING: If the information in these
instructions is not followed exactly, a fi re
or explosion may result causing property
damage, personal injury, or death.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or the
gas supplier.
WARNING
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of burns
from the hot viewing glass is provided with this
appliance and shall be installed.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fi tter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading

Related Manuals for Heat & Glo ESCAPE-I35-F

Summary of Contents for Heat & Glo ESCAPE-I35-F

  • Page 1: Care And Operation

    See Table of Contents for location of additional Commonwealth of Massachusetts requirements. gases, unless a certifi ed kit is used. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 2: Welcome

    00,000 00,000 MIN. MIN. INPUT INPUT BTUH: BTUH: 00,000 00,000 00,000 00,000 Serial Serial ORIFICE ORIFICE SIZE: SIZE: #XXXXX #XXXXX #XXXXX #XXXXX XXXXXXXX XXXXXXXX (Serie): (Serie): Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 3: Table Of Contents

    C. Contact Information ......25  = Contains updated information. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 4: Limited Lifetime Warranty

    Firebox and heat exchanger Lifetime All replacement parts 90 Days beyond warranty period See conditions, exclusions, and limitations on next page. 4021-645F 02-18-13 Page 1 of 2 Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...
  • Page 5 THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE. 4021-645F 02-18-13 Page 2 of 2 Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 6: Product Specifi C Information

    B. Glass Specifi cations This appliance is equipped with 5 mm ceramic glass. Re- place glass only with 5 mm ceramic glass. Please contact your dealer for replacement glass. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 7: Important Safety And Operating Information

    • Keep remote controls out of reach of children. • Never leave children alone near a hot fi replace, whether operating or cooling down. • Teach children to NEVER touch the fi replace. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 8: General Operating Parts

    WARNING! Risk of Fire or Asphyxiation! DO NOT op- erate fi replace with fi xed glass assembly removed. This fi replace has an Intellifi re Plus ignition system. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 9: Lighting Instructions (Ipi)

    For additional information on operating your Hearth & Home Technologies fi replace, please refer to www.fi replaces.com. Final inspection by Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 10: Appliance Break-In

    110- notch engaged in the appliance. Battery polarity must 120 VAC power. be correct or module damage will occur. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 11: Detailed Component Operating Instructions - Intellifire Tm Plus

    MODULE SELECTOR SWITCH FLAME HI/LOW STATUS NG/LP GAS-TYPE SWITCH SELECTOR SWITCH INDICATOR LED Figure 3.6 Control Module Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...
  • Page 12 fi replace after nine hours of continuous operation without receiving a command from the wall switch or optional remote. MODULE RESET SWITCH Figure 3.7. Module Reset Switch Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 13: Maintenance And Service

    CAUTION! Risk of Burns! The fi replace should be turned off and cooled before servicing. Figure 4.2 Bottom Glass Latch Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 14: Remote Control

    • Reinstall door or decorative front. • Verify weather stripping, sealing and fl ashing remains intact. • Inspect draft shield to verify it is not damaged or missing. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 15: Maintenance Tasks - Qualifi Ed Service Technician

    Tools needed: Protective gloves, vacuum cleaner, whisk broom, fl ashlight, voltmeter, indexed drill bit set, and a manometer. • Verify burner is properly secured and aligned with pilot or igniter. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...
  • Page 16 • Cracks compromising the surface plane of the fi rebox. See Figure 4.6. Figure 4.6. Surface plane of fi rebox is comprised and should be replaced. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 17: Frequently Asked Questions And Troubleshooting

    Refer to (battery backup) Section 3.H for more details. Contact your dealer for additional information regarding operation and troubleshooting. Visit www.heatnglo.com to locate a dealer. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 18: Troubleshooting

    Verify that 1.5 to 1.8 VDC is supplied to pilot solenoid from module. If below 1.5 volts, replace module. If 1.5 volts or greater, replace valve. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...
  • Page 19 fl ame sensing rod. Verify continuity with a multi-meter with ohms set at lowest range. Replace pilot if any damage is detected. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 20: Reference Materials

    For more information refer to the instructions supplied with your decorative door or front. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 21: Service Parts

    Refer to valve page Aux Bracket 2201-157 RIV-NUT Bracket Assembly Qty 2 req 2201-027 Fan Kit GFK-210-C Cover Plate, Back 2202-104 Additional service part numbers on following page. 10/14 Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...
  • Page 22 Refer to valve page Aux Bracket 2201-157 RIV-NUT Bracket Assembly Qty 2 req 2201-027 Fan Kit GFK-210-C Cover Plate, Back 2202-104 Additional service part numbers on following page. 10/14 Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...
  • Page 23 **Fuse for battery pack can be sourced locally, not a warranty item. Specs are 250v, 1A fuse, 3/4” long Additional service part numbers on following page. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...
  • Page 24 ESCAPE-I35-F Conversion Kits Conversion Kit NG NGK-I35-C Conversion Kit LP LPK-I35-C Pilot Orifi ce NG 593-528 Pilot Orifi ce LP 593-527 Regulator NG NGK-DXV-50 Regulator LP LPK-DXV-50 Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...

  • Page 25: Contact Information

    5890485, 5941237, 6006743, 6019099, 6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7098269, 7258116, 7470729, 8147240 or other U.S. and foreign patents pending. 2000-945B Printed in U.S.A. - Copyright 2014 Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. G • 10/14...
