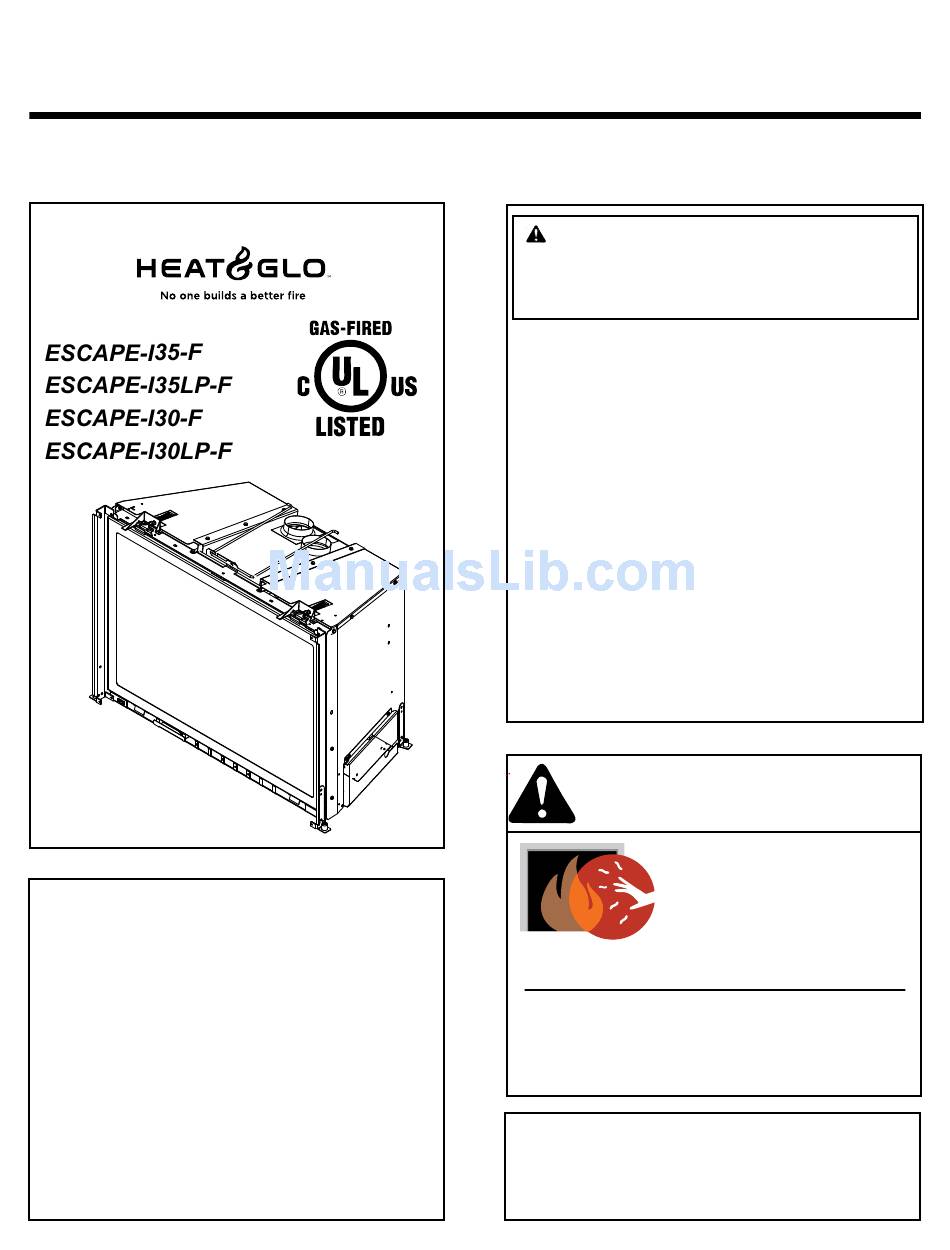

INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT discard this manual!

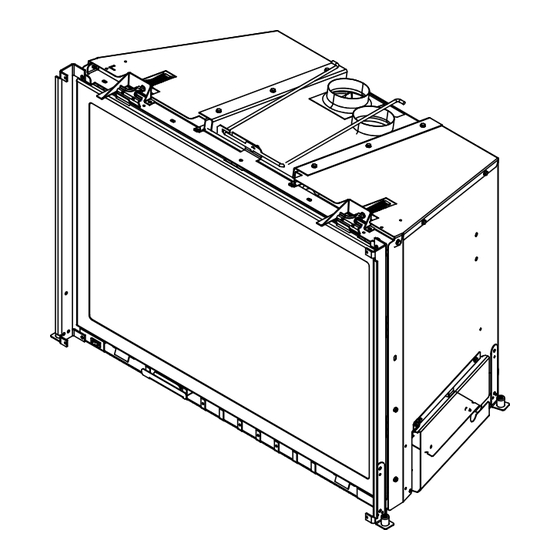

Model(s):
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
Owner's Manual
Care and Operation
Heat & Glo • Escape-I35-F, Escape-I30-F Owner's Manual • 2347-981 Rev. F • 8/14
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
WARNING
CAUSE BURNS.
DO NOT TOUCh glASS
NEVER AllOw ChIldREN
A barrier designed to reduce the risk of burns
from the hot viewing glass is provided with this
appliance and shall be installed.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.
HOT GLASS wIll
UNTIl COOlEd.
TO TOUCh glASS.
1
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Heat & Glo ESCAPE-I35-F
Summary of Contents for Heat & Glo ESCAPE-I35-F
- Page 1 Standard for Installation in Mobile Homes, CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) In the Commonwealth of Massachusetts installation must be of gas indicated on the rating plate. This performed by a licensed plumber or gas fitter. appliance is not convertible for use with other See Table of Contents for location of additional Commonwealth gases, unless a certified kit is used. of Massachusetts requirements. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14...
-
Page 2: Welcome
00,000 00,000 MIN. MIN. INPUT INPUT BTUH: BTUH: 00,000 00,000 00,000 00,000 Serial Serial XXXXXXXX XXXXXXXX ORIFICE ORIFICE SIZE: SIZE: #XXXXX #XXXXX #XXXXX #XXXXX (Serie): (Serie): Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... -
Page 3: Table Of Contents
C. Contact Information ......25 = Contains updated information. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... -
Page 4: Limited Lifetime Warranty
2 years Factory-installed blowers Molded refractory panels 3 years Firepots and burnpots 5 years 1 year Castings and baffles Manifold tubes, 7 years 3 years hhT chimney and termination 1 year Burners, logs and refractory years limited 3 years Firebox and heat exchanger lifetime All replacement parts 90 days beyond warranty period See conditions, exclusions, and limitations on next page. 4021-645F 02-18-13 Page 1 of 2 Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... - Page 5 This warranty is void if: • The appliance has been over-fired or operated in atmospheres contaminated by chlorine, fluorine, or other damaging chemicals. Over-firing can be identified by, but not limited to, warped plates or tubes, rust colored cast iron, bubbling, cracking and discoloration of steel or enamel finishes. • The appliance is subjected to prolonged periods of dampness or condensation. • There is any damage to the appliance or other components due to water or weather damage which is the result of, but not limited to, improper chimney or venting installation. LIMITATIONS OF LIABILITY: • The owner’s exclusive remedy and hhT’s sole obligation under this warranty, under any other warranty, express or implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified above. In no event will hhT be liable for any incidental or consequential damages caused by defects in the appliance. Some states do not allow exclusions or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific rights; you may also have other rights, which vary from state to state. EXCEPT TO ThE EXTENT PROVIdEd BY lAw, hhT MAKES NO EXPRESS wARRANTIES OThER ThAN ThE wARRANTY SPECIFIEd hEREIN. ThE dURATION OF ANY IMPlIEd wARRANTY IS lIMITEd TO dURATION OF ThE EXPRESSEd wARRANTY SPECIFIEd ABOVE. 4021-645F 02-18-13 Page 2 of 2 Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14...
-
Page 6: Product Specific Information
Check with your local gas utility to determine proper Installation and service of this appliance should be orifice size. performed by qualified personnel. hearth & home Technologies suggests NFI certified or factory trained professionals, or technicians supervised by an NFI certified professional (www.nficertified.org). B. Glass Specifications This appliance is equipped with 5 mm ceramic glass. Re- place glass only with 5 mm ceramic glass. Please contact your dealer for replacement glass. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... -
Page 7: Important Safety And Operating Information
• A physical barrier is recommended if there are at risk individuals in the house. • To restrict access to a fireplace or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces. • Install a switch lock or a wall/remote control with child protection lockout feature. • Keep remote controls out of reach of children. • Never leave children alone near a hot fireplace, whether operating or cooling down. • Teach children to NEVER touch the fireplace. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... -
Page 8: General Operating Parts
• Conversions must be made by a qualified service • Check the wiring. technician using hearth & home Technologies specified • Check the air shutter adjustment. and approved parts. • Ensure that there are no gas leaks. • Ensure that the glass is sealed and in the proper position and that the integral barrier is in place. WArNING! Risk of Fire or Asphyxiation! DO NOT op- erate fireplace with fixed glass assembly removed. This fireplace has an Intellifire Plus ignition system. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... -
Page 9: Lighting Instructions (Ipi)
593-913g State of California to cause cancer, birth Bedroom or a Bedsitting Room. defects, or other reproductive harm. For assistance or additional informa- Keep burner and control compartment tion, consult a qualified installer, ser- clean. See installation and operating vice agency or the gas supplier. instructions accompanying appliance. For additional information on operating your hearth & home Technologies fireplace, please refer to www.fireplaces.com. Final inspection by Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... -
Page 10: Appliance Break-In
110- notch engaged in the appliance. Battery polarity must 120 VAC power. be correct or module damage will occur. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... -
Page 11: Detailed Component Operating Instructions - Intellifire Tm Plus
10 second period, the flame can be adjusted from hI to lO with the switch. 3. The control module has safety feature that automatically shuts down the fireplace after 9 hours of continuous operation without receiving a command from the RC300 remote. 4. If you intend to use both an optional wired wall switch and the RC300 remote control to operate your fireplace, the wall switch will override any commands given by the remote. MODULE SELECTOR SWITCH FLAME HI/LOW STATUS NG/LP GAS-TYPE SWITCH INDICATOR LED SELECTOR SWITCH Figure 3.6 Control Module Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... - Page 12 Gas may accumulate in firebox. Call a quali- fied service technician. Nine Hour Safety Shutdown Feature The appliance has a safety feature that automatically shuts down the fireplace after nine hours of continuous operation without receiving a command from the wall switch or optional remote. MODULE RESET SWITCH Figure 3.7. Module Reset Switch Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14...
-
Page 13: Maintenance And Service
It is im- PULL OUT perative that control compartments, burners and circulat- ing air passageways of the appliance be kept clean. Any safety screen, guard, or barrier removed for servicing the appliance must be replaced prior to operating the appli- ance. CAUTION! Risk of Burns! The fireplace should be turned off and cooled before servicing. Figure 4.2 Bottom Glass Latch Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... - Page 14 • Inspect for corrosion or separation. • Reinstall door or decorative front. • Verify weather stripping, sealing and flashing remains intact. • Inspect draft shield to verify it is not damaged or missing. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14...
-
Page 15: Maintenance Tasks - Qualified Service Technician
Use caution when cleaning these areas. Screw tips that have penetrated the sheet metal are sharp and should be avoided. • Remove all foreign objects. • Verify unobstructed air circulation. Burner Ignition and Operation Figure 4.5 IPI Pilot Flame Patterns Frequency: Annually By: Qualified Service Technician Tools needed: Protective gloves, vacuum cleaner, whisk broom, flashlight, voltmeter, indexed drill bit set, and a manometer. • Verify burner is properly secured and aligned with pilot or igniter. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... - Page 16 Tools needed: Protective gloves, sandpaper, steel wool, cloths, mineral spirits, primer and touch-up paint. • Inspect for paint condition, warped surfaces, corrosion or perforation. Sand and repaint as necessary. • Replace appliance if firebox has been perforated. Surface cracking or crazing of firebrick material is normal and expected. All cracks are acceptable and do not require replacement of the unit or the firebox with the exception of: • Cracks compromising the surface plane of the firebox. See Figure 4.6. Figure 4.6. Surface plane of firebox is comprised and should be replaced. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14...
-
Page 17: Frequently Asked Questions And Troubleshooting
3 to 4 hours of initial burning to remove deposits left by oils from the manufacturing process. A non-abrasive cleaner such as gas fireplace glass cleaner may be necessary. See your dealer. Noise is caused by metal expanding and contracting as it heats up and cools down, similar to Metallic noise the sound produced by a furnace or heating duct. This noise does not affect the operation or longevity of the appliance. In an intermittent pilot ignition system (IPI), the pilot flame should turn off when appliance is Is it normal to see the pilot flame burn turned off. Some optional control systems available with IPI models may allow pilot flame to continually? remain lit. There may be some “cracking” noise coming from the fireplace during the first few heating and cooling cycles. This noise is associated with settling rock and some minor cracking of Ember glass Media larger pieces of rock. This will lessen over time as the glass rock is conditioned to the heat- ing and cooling temperature changes. This appliance can operated on battery power in the event of a power outage. To access Power Outages the battery pack, the decorative front, mesh and glass assembly must be removed. Refer to (battery backup) Section 3.h for more details. Contact your dealer for additional information regarding operation and troubleshooting. Visit www.heatnglo.com to locate a dealer. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... -
Page 18: Troubleshooting
3. Pilot sparks, but A. gas supply. Verify that incoming gas line ball valve is “open”. Verify that inlet Pilot will not light. pressure reading is within acceptable limits. B. Ignitor gap is too large. Verify gap of igniter to right side of pilot hood. The gap should be approximately .17 in. or 1/8 in. (3 mm). C. Module is not grounded. Verify module is securely grounded to metal chassis of appliance. d. Pilot valve solenoid. Verify that 1.5 to 1.8 VdC is supplied to pilot solenoid from module. If below 1.5 volts, replace module. If 1.5 volts or greater, replace valve. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... - Page 19 Verify that ceramic insulator around the flame sensing rod nated flame sensing rod. is not cracked, damaged, or loose. Verify connection from flame sensing rod to white sensor wire. Polish flame sens- ing rod with fine steel wool to remove any contaminants that may have accumulated on flame sensing rod. Verify continuity with a multi-meter with ohms set at lowest range. Replace pilot if any damage is detected. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14...
-
Page 20: Reference Materials
Contact your dealer or hearth & home Technologies if the barrier is not present or help is needed to properly install one. For more information refer to the instructions supplied with your decorative door or front. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... -
Page 21: Service Parts
2201-137 Burner Assembly 2201-009 Media Tray, Mesh 2201-138 Media Tray 2201-112 grate Assembly 2201-016 Power Cord Assembly 2201-024 glass door Assembly glA-2201 Refer to valve page Valve Assembly Aux Bracket 2201-157 RIV-NUT Bracket Assembly Qty 2 req 2201-027 Fan Kit gFK-210-C Cover Plate, Back 2202-104 Additional service part numbers on following page. 8/14 Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14... - Page 22 2201-137 Burner Assembly 2202-009 Media Tray, Mesh 2201-138 Media Tray 2202-112 grate Assembly 2202-016 glass door Assembly glA-2202 Power Cord Assembly 2201-024 Valve Assembly Refer to valve page Aux Bracket 2201-157 RIV-NUT Bracket Assembly Qty 2 req 2201-027 Fan Kit gFK-210-C Cover Plate, Back 2202-104 Additional service part numbers on following page. 8/14 Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14...
- Page 23 14.10 2166-345 Power Supply 14.11 2166-335 Auxiliary Box 14.12 **Battery Pack 2166-323 14.13 Module 2166-307 14.14 2201-304 wire Assembly 14.15 2201-025 Pilot Bracket 14.16 Air Scoop 2201-156 14.17 Ember glass 2201-115 **Fuse for battery pack can be sourced locally, not a warranty item. Specs are 250v, 1A fuse, 3/4” long Additional service part numbers on following page. Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14...
- Page 24 593-528 Pilot Orifi ce lP 593-527 Regulator Ng NgK-dXV-50 Regulator lP lPK-dXV-50 ESCAPE-I35-F Conversion Kits Conversion Kit Ng NgK-I35-C Conversion Kit lP lPK-I35-C Pilot Orifi ce Ng 593-528 Pilot Orifi ce lP 593-527 Regulator Ng NgK-dXV-50 Regulator lP lPK-dXV-50 Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14...
-
Page 25: Contact Information
5890485, 5941237, 6006743, 6019099, 6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7098269, 7258116, 7470729, 8147240 or other U.S. and foreign patents pending. 2000-945B Printed in U.S.A. - Copyright 2014 Heat & Glo • Escape-I35-F, Escape-I30-F Owner’s Manual • 2347-981 Rev. F • 8/14...
