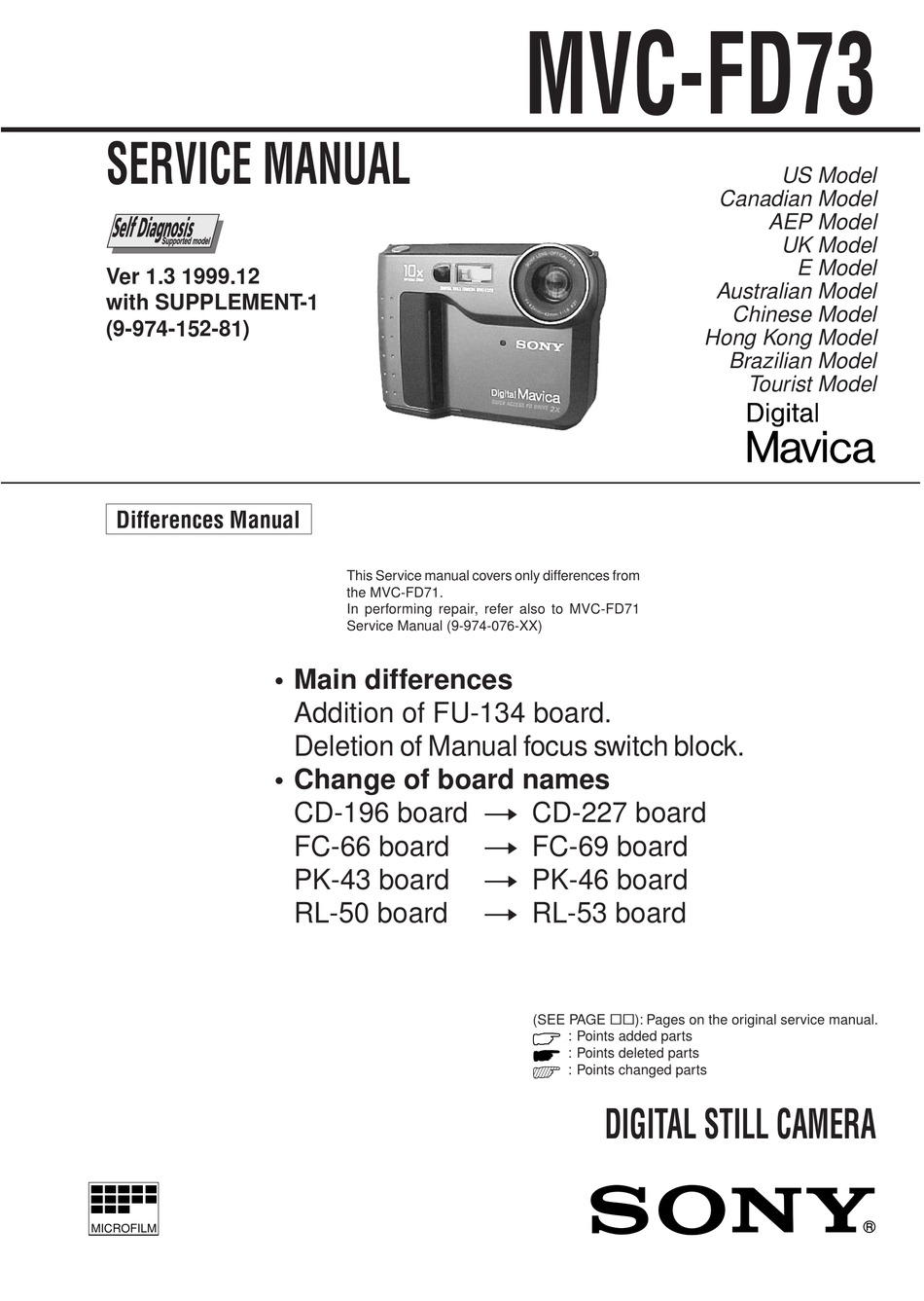

SERVICE MANUAL
Ver 1.3 1999.12
with SUPPLEMENT-1
(9-974-152-81)
Differences Manual
MICROFILM
This Service manual covers only differences from
the MVC-FD71.
In performing repair, refer also to MVC-FD71
Service Manual (9-974-076-XX)
• Main differences
Addition of FU-134 board.
Deletion of Manual focus switch block.
• Change of board names
CD-196 board n CD-227 board
FC-66 board
PK-43 board
RL-50 board

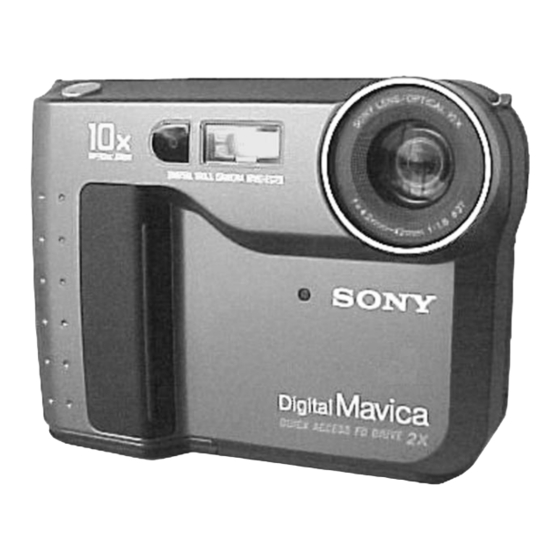

MVC-FD73
n FC-69 board
n PK-46 board
n RL-53 board
(SEE PAGE ππ): Pages on the original service manual.
: Points added parts
: Points deleted parts
: Points changed parts
DIGITAL STILL CAMERA
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Chinese Model
Hong Kong Model
Brazilian Model
Tourist Model
