1SQ 2.4GHz RTF/Tx-R

Instruction Manual

®
Entire Contents © 2012 Hobbico
, Inc.
HMXE0834 RTF HMXE0835 Tx-R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heli-Max 1SQ and is the answer not in the manual?

Questions and answers

Summary of Contents for Heli-Max Heli-Max 1SQ

  • Page 1: Instruction Manual

    ® ™ ™ 1SQ 2.4GHz RTF/Tx-R Instruction Manual ® Entire Contents © 2012 Hobbico , Inc. HMXE0834 RTF HMXE0835 Tx-R...
  • Page 2: Table Of Contents

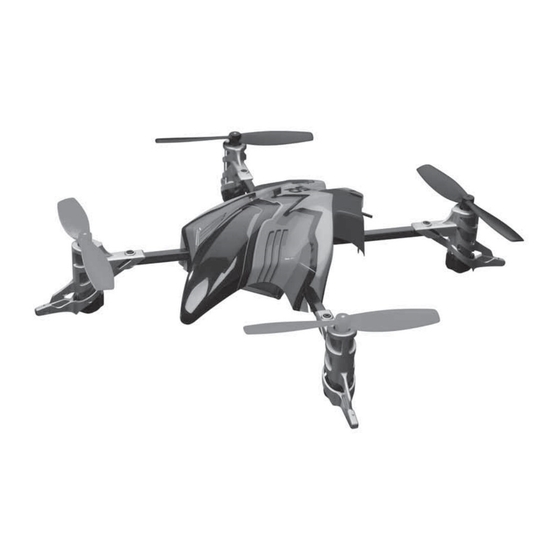

    INTRODUCTION INTRODUCTION Thank you for purchasing the Heli-Max 1SQ Quadcopter. We are certain you will get many hours of enjoyment out of this model. If you should have any questions or concerns please feel free to contact us at helihotline@hobbico.
  • Page 3: Warranty

    ● The spinning blades of a model helicopter can cause serious injury. When choosing a fl ying site for your 1SQ Quadcopter, stay clear of buildings, trees and power lines. AVOID fl ying in or near crowded areas. DO NOT fl y close to people, children or pets.
  • Page 4: Additional Items Required

    Kit Contents list. Heli-Max Product Support Ph: (217) 398-8970, ext. 5 3002 N. Apollo Drive, Suite 1 Fax: (217) 398-7721 Champaign, IL 61822 E-mail: helihotline@hobbico.com ® KIT CONTENTS KIT CONTENTS 1. Quadcopter 4. Transmitter (RTF only) 7. Spare Blades 2.
  • Page 5: Tx-R

    ® Your new 1SQ Quadcopter uses SLT protocol. This means that with the simple addition of the Tactic Anylink ™ , you can enjoy your new machine with nearly “any” helicopter radio. AnyLink Heli Tx Compatibility Chart Required Cable 6EXH or EXP, 6J, 7C, 8FG, 8J, 9C, 10C, 12FG INCLUDED 6H, 8U, 9Z TACM0003...
  • Page 6: Battery Precautions

    ® BATTERY PRECAUTIONS BATTERY PRECAUTIONS This 1SQ Quadcopter uses a lithium polymer (LiPo) battery. Follow these precautions to insure safe and trouble free operation. ● Only use the included charger with the included battery. ● Do not attempt to use this charger with NiCd or NiMH battery packs. ●...
  • Page 7: Charging The Flight Battery

    ® CHARGING THE FLIGHT BATTERY CHARGING THE FLIGHT BATTERY WARNING!! The charger supplied with the Heli-Max 1SQ Quadcopter contains protective circuitry. If you experience any diffi culties while charging the battery, please disconnect the battery from the charger and unplug the charger from the power source. Allow the battery and charger to rest for two hours as this will allow the charge protection circuit to reset.
  • Page 8: Install The Transmitter Batteries

    ® INSTALL THE TRANSMITTER BATTERIES INSTALL THE TRANSMITTER BATTERIES ❏ Carefully remove the battery door and install four AA batteries. Double check the polarity of each battery. Slide the battery cover back into place. ® TRANSMITTER CONTROLS TRANSMITTER CONTROLS All controls are described with the tail pointing directly toward you. This is the best way to fl...
  • Page 9 The TX410 has two fl ight rates that control how aggressive the Quad feels during fl ight. The high rate is good for outdoors and low rate is good for indoors or smooth precise fl ying. Adjust the rates by pushing and holding the right stick, then moving the throttle to read between 30 and 40, then let go of the right stick.
  • Page 10: Heli-Max Tx410 Servo Reversing

    Moving the left stick up or down will cause the quad to climb or descend. Climbs or Descends Climbs or Descends Climbs or Descends Moving the left stick left or right will cause the quad to rotate in that direction. Rotates Left or Right Rotates Left or Right Rotates Left or Right...
  • Page 11: Turning The Model On

    ❏ 2. Let go of the trim buttons and you will see 1-1 or 1-0 displayed. The fi rst digit is the channel number. To change the channel you want to reverse, push the right stick. ❏ 3. To reverse the travel direction, push the elevator trim button up or down so the second number changes.
  • Page 12: Flying

    FLYING FLYING The Heli-Max 1SQ Quadcopter is lightweight. Therefore, you should only fl y indoors or in calm winds less than 5mph. It should be fl own in a large area of at least 75 feet [15.25m] square with no obstacles.
  • Page 13: Ordering Replacement Parts

    ® ORDERING PARTS ORDERING PARTS Replacement parts for the Heli-Max 1SQ are available using the order numbers in the Replacement Parts List that follows. The fastest, most economical service can be provided by your hobby dealer. To locate a hobby dealer, visit the Heli-Max web site at www.helimax-rc.com.
  • Page 14: Parts List

    Be certain to specify the order number exactly as listed in the Replacement Parts List. Payment by credit card or personal check only; no C.O.D. If additional assistance is required for any reason contact Product Support by e-mail at helihotline@hobbico.com, or by telephone at (217) 398-8970. ® PARTS LIST PARTS LIST Key No.
  • Page 15: 1Qs Exploded View

    ® 1SQ EXPLODED VIEW 1SQ EXPLODED VIEW...
  • Page 16: Channel

    European R&TTE directive 1995/5/EC: ETSI EN 300 328 V1.7.1 Technical requirements for radio equipment ETSI EN 301 489-1 V1.8.1, 301 489-17 V1.3.2 General EMC requirements for radio equipment Hobbico, Inc. 2200 2904 Research Road Champaign, IL USA 61826 The associated regulatory agencies of the following countries recognize the noted certifications to this product as authorized for sale and use.
