Heli-Max Novus CX Replacement

5in1 control board replacement
Hide thumbs Also See for Novus CX:
1
2
3
4

Advertisement

Quick Links

Download this manual
T E C H N I C A L
5'IN1 CONTROL BOARD REPLACEMENT
Tools Required
❏
®
DuraTrax
Precision Phillips
Screwdriver 00 × 75mm (DTXR0170)
Procedure

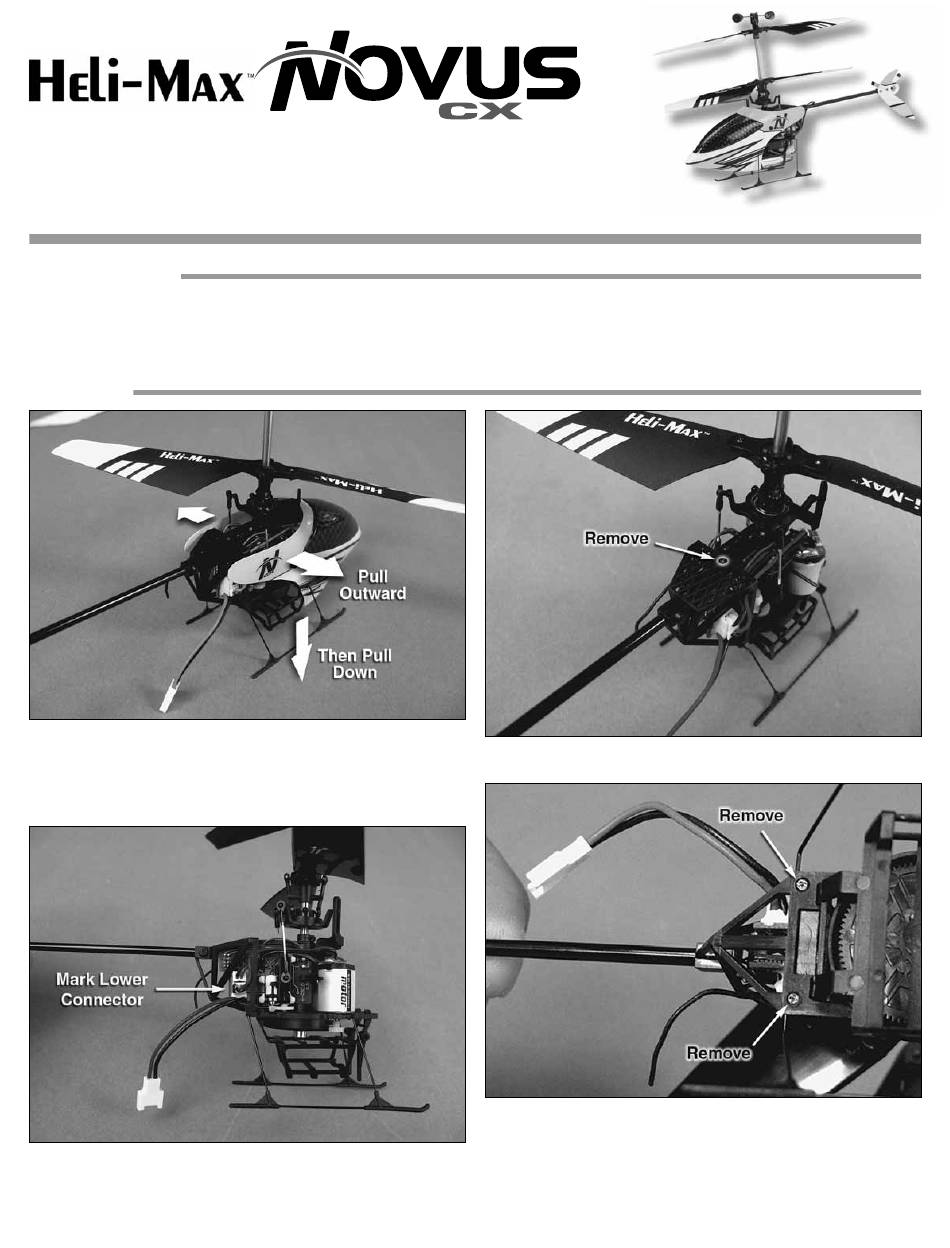

Carefully pull outward and slide the canopy grommets off
of the upper canopy mount. Pull the front of the canopy
downward (off of the lower canopy mount) and then pull
forward, to remove the canopy.
Place a mark on the lower motor connector with a permanent
marker. This will help to ensure the connector is placed back
into the correct slot during reassembly.
N O T I C E
Replacing the 5 'in 1 board used within the Heli-Max Novus CX will require
a small phillips screwdriver. The DuraTrax Precision Phillips Screwdriver
00 × 75mm (DTXR0170) is ideal for the small phillips screws used on the
Novus CX.
Remove the upper tail boom mount screw.
Remove the two lower tail boom mount screws.
™

Advertisement

loading
Need help?

Need help?

Do you have a question about the Novus CX and is the answer not in the manual?

Questions and answers

Related Manuals for Heli-Max Novus CX

Summary of Contents for Heli-Max Novus CX

  • Page 1 ® DuraTrax Precision Phillips Replacing the 5 ’in 1 board used within the Heli-Max Novus CX will require Screwdriver 00 × 75mm (DTXR0170) a small phillips screwdriver. The DuraTrax Precision Phillips Screwdriver 00 × 75mm (DTXR0170) is ideal for the small phillips screws used on the Novus CX.
  • Page 2 To remove the tail boom assembly, carefully rotate and pull the tail boom assembly away from the mechanics. The 5’in1 board will now slide out of the helicopter. Align the board with the molded channels in the main frame and carefully slide the new 5 ’in 1 board into the frame. Disconnect the two motor connectors from the 5 ’in 1 board.
  • Page 3 Align the lower tail boom assembly holes with the main frame holes and install the two lower tail boom assembly Ensure that the connector you marked earlier is placed into mounting screws. the bottom connector on the board. Reconnect the main motor connectors to the 5 ’in 1 control board.
  • Page 4 notice that the tail has a tendency to drift, try increasing the tail has a tendency to oscillate, try decreasing the gain the gyro gain by turning the gyro gain adjustment counter by turning the gyro gain adjustment clockwise. clockwise until the best performance has been achieved. If Entire Contents ©...
