Icom IC-PW1 Service Manual page 41

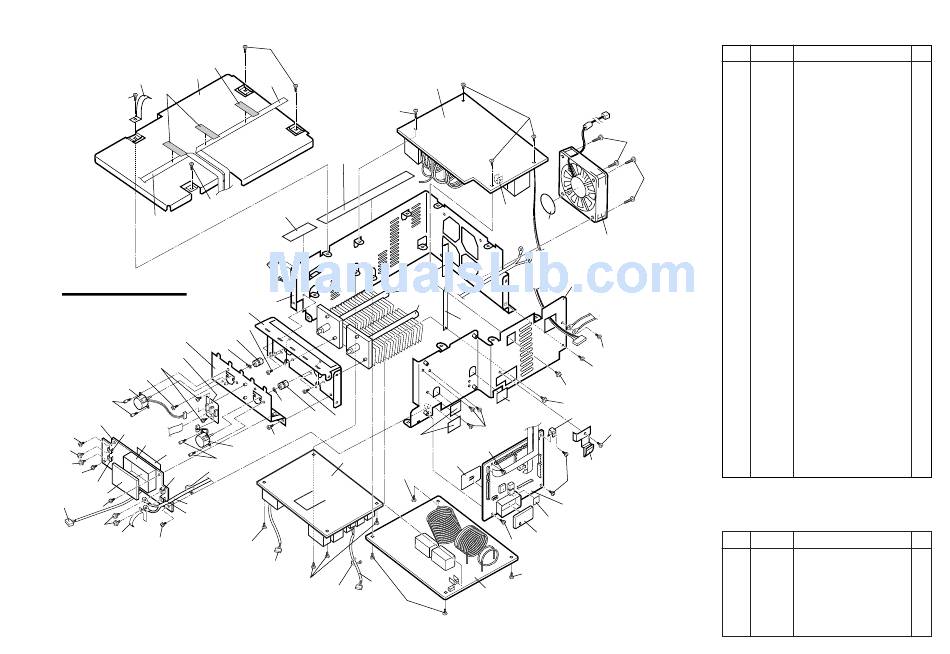

TUNER UNIT
MP111 (CH)
MP2
MP39
MP111 (CH)
MP20
MP20
W20 (CH)
Note
(CH) : CHASSIS PARTS (See page 6 - 1)
(MA) : MAIN UNIT
(DE) : DET BOARD
(H-N) : H-NET BOARD
MP3
MP6
CONNECT BOARD
MP23
MP21
MF1
MP7
DET BOARD
EP7 (DE)
MP19
MP1(DE)
MP82 (CH)
MP3 (DE)
MP83 (CH)
MP25
EP5 (DE)
MP19
EP8 (DE)
MP2 (DE)
WS2 (DE)
WS1 (DE)
MP19
EP6 (DE)
MP24
MP36
MP19
MP20
W21 (CH)
MP40
MP35
MP34
MP14
MP1
MP8
MP5
MP9
MP6
MP9
MP5
MF21
MF2
MP7 C-NET
BOARD
MP17
MP18
WS2
MP18
WS1
MP25
MP17
H-NET BOARD
MP16
EP2 (H-N)
MP96 (CH)
EP7
MP13
C1
C2
MP10
MP11
MP22
MP28
MP31
MP15
MP28
MP27
MP3 (MA)
MP27
MAIN UNIT
MP4 (MA)
MP2 (MA)
MP27
MP17
L-NET BOARD
6-5 TUNER UNIT DISASSEMBLY
[TUNER UNIT]
ORDER
REF NO.
NO.
C1 4620000130 UV55 150pF
C2 4620000130 UV55 150pF
EP7 9019001020 Enpire tube
MF1 2710000460 Stepping motor MP28GA
MF2 2710000460 Stepping motor MP28GA
MF3 2710000630 Fan FBA08T12HC (w/beadscore)
MP1 8510011322 1900 A-TUN case-2
MP2 8510011351 1900 A-TUN cover-1
MP4 MP3 8930044041 1900 A-motor angle-1
8810006500 Bind screw M4 × 20 ZK
MP4
8810002160 Screw FH M3 × 5
MP5
MP6 8930030111 1414 Plate-1
MP4
MP7 8820000880 1528 Screw
MP8 8930044030 1900 TUN angle
MP9 8950003200 UJ6-5 (univ. cuppling)
MP10 8930044050 1900 CU plate
8810002160 Screw FH M3 × 5
MP11
8810009620 Bind screw BT M3 × 6 ZK
MP12
MP13 8510011332 1900 B-TUN case-2
MF3
8810009620 Tapping screw bind B0 M3 × 6 ZK(BT)
MP14
8810009620 Tapping screw bind B0 M3 × 6 ZK(BT)
MP15
8810009620 Tapping screw bind B0 M3 × 6 ZK(BT)
MP16
8810008660 Tapping screw bind PH B0 M3 × 8 NI-ZU (BT)
MP17
8810009620 Tapping screw bind B0 M3 × 6 ZK(BT)
MP18
8810003160 Set screw A M3 × 6
MP19
8810008660 Tapping screw bind PH B0 M3 × 8 NI-ZU (BT)
MP20
8810009310 Tapping screw bind PH B0 M3 × 6 NI-ZU (BT)
MP21
8810003380 Set screw C M3 ×10
MP22
8810003160 Set screw A M3 × 6
MP23
8810003360 Set screw C M3 × 6
MP24
MP25 8950000180 Cable tie-80
MP32
MP26 6910008240 Clip 59TN4772
8810003160 Set screw A M3 × 6
MP27
MP12
MP28 8930007100 Alumi-sheet C
MP31 8930047180 1900 A-grounding plate
8810008660 Tapping screw bind PH B0 M3 × 8 NI-ZU (BT)
MP32
8950001770 Filamen tape 9510 12 × 40
MP34
8950004950 Filamen tape 9510 12 × 195
MP35
MP36 8930047810 1900 Tun spring
MP38
MP37 8930047190 1900 B-grounding plate
8810008630 Tapping screw bind PH B0 M3 × 6 NI-ZU (BT)
MP38
MP39 8930004070 Grounding spring (C)
8930008660 Tapping screw bind PH B0 M3 × 8 NI-ZU (BT)
MP40
MP37
WS1 8970022910 EX1900 Special coxial cable (1)/TU
Screw abbreviations: PH: Pan head FH: Flat head
[DET BOARD]
ORDER
REF NO.
NO.
EP5 6910011330 Terminal OT-009 M3
EP6 6910011330 Terminal OT-009 M3
EP7 6910011330 Terminal OT-009 M3
EP8 6910011330 Terminal OT-009 M3
MP1 8510001080 Shild case (A) SX117
MP2 8510001101 Shild case (A) cover (A)-1
MP3 8510004370 506 Shild plate
WS1 8970022630 EX1900 Tefron coaxial cable (2)/DE
WS2 8600035821 EX1900 P01*J01DE-1
6 - 7
DESCRIPTION QTY.
1
1
1
1
1
1
1
1
1
4
6
2
4
1
2
1
1
1
1
3
3
3
4
4
4
4
2
1
2
2
2
2
4
3
1
1
1
1
1
1
1
1
1
1
BT: Self-tapping ZK: Black NI:Nickel
DESCRIPTION QTY.
1
1
1
1
1
1
1
1
1
