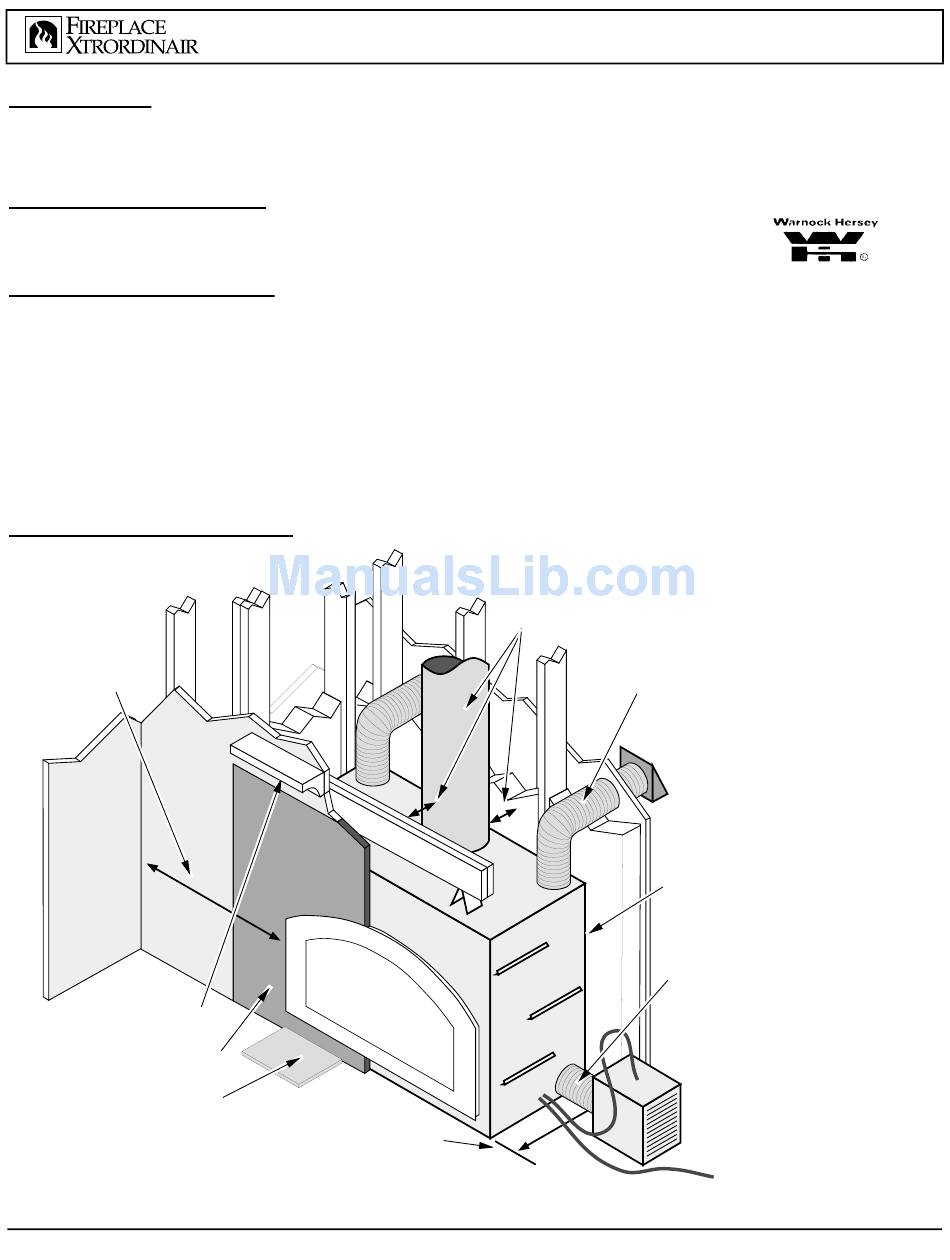

44E - ZC Builder Booklet Page 1 Disclaimer This booklet partially details the installation requirements for the 44E-ZC fireplace. It is intended to give general information prior to delivery of the fireplace. For full installation requirements, refer to the installation manual (part # 93508093).
44E - ZC Builder Booklet Page 3 Minimum Framing Dimensions A firestop is required at the top of the fireplace enclosure or ceiling level (whichever is lower). The fireplace enclosure must not be Min. 4-1/2" less than 81" above the base of the fireplace.
44E - ZC Builder Booklet Page 4 Facing Requirements • The fireplace is shipped with a set-up face that is 1/16" larger on the top, bottom and each side than the faceplate. Leave the set-up face in place to act as a template when installing the facing. •...
44E - ZC Builder Booklet Page 5 Hearth Requirements • Local building codes may require a minimum hearth requirement different of what this manual states • Hearth must extend 20" in front of the faceplate 23" when it is not elevated (see local building codes). Mantel (may be Hearths raised 6-1/2"...
44E - ZC Builder Booklet Page 6 Cooling Vents • The cooling vents provide cooling air for the fireplace and chimney system. Failure to correctly install the cooling vents will lead to an extremely dangerous installation and possibly a fire. •...
Page 7
44E - ZC Builder Booklet Page 7 Blower The external blower pushes air through blower duct to the fireplace, where it is heated and distributed into the room. The blower may be located to draw air from the exterior of the home, producing positive pressure inside the home and providing outside air for the combustion chamber.
44E - ZC Builder Booklet Page 8 Chimney Requirements • Use one of the following brands and type of chimney: • Temco 82 • Superior TF8 • FMI 8DM • Marco 8D • Depending on the manufacturer and where the chimney is to be installed, chimney supports, roof braces, radiation shields, attic insulation shields, attic enclosures, spark arrestors, locking bands, etc...
44E - ZC Builder Booklet Page 9 Chimney Clearances Follow the clearances listed below - do not follow the clearances listed in the chimney instructions • Maintain a 2" clearance from the chimney to combustibles (measured horizontally) • Use offsets, if necessary, to maintain clearances •...
44E - ZC Builder Booklet Page 10 Firestops NOTE: Many firestops are designed for a 1" clearance, this fireplace requires a 2" clearance. • Whenever the chimney penetrates a floor or ceiling a firestop is required on the bottom side of the floor joists •...
