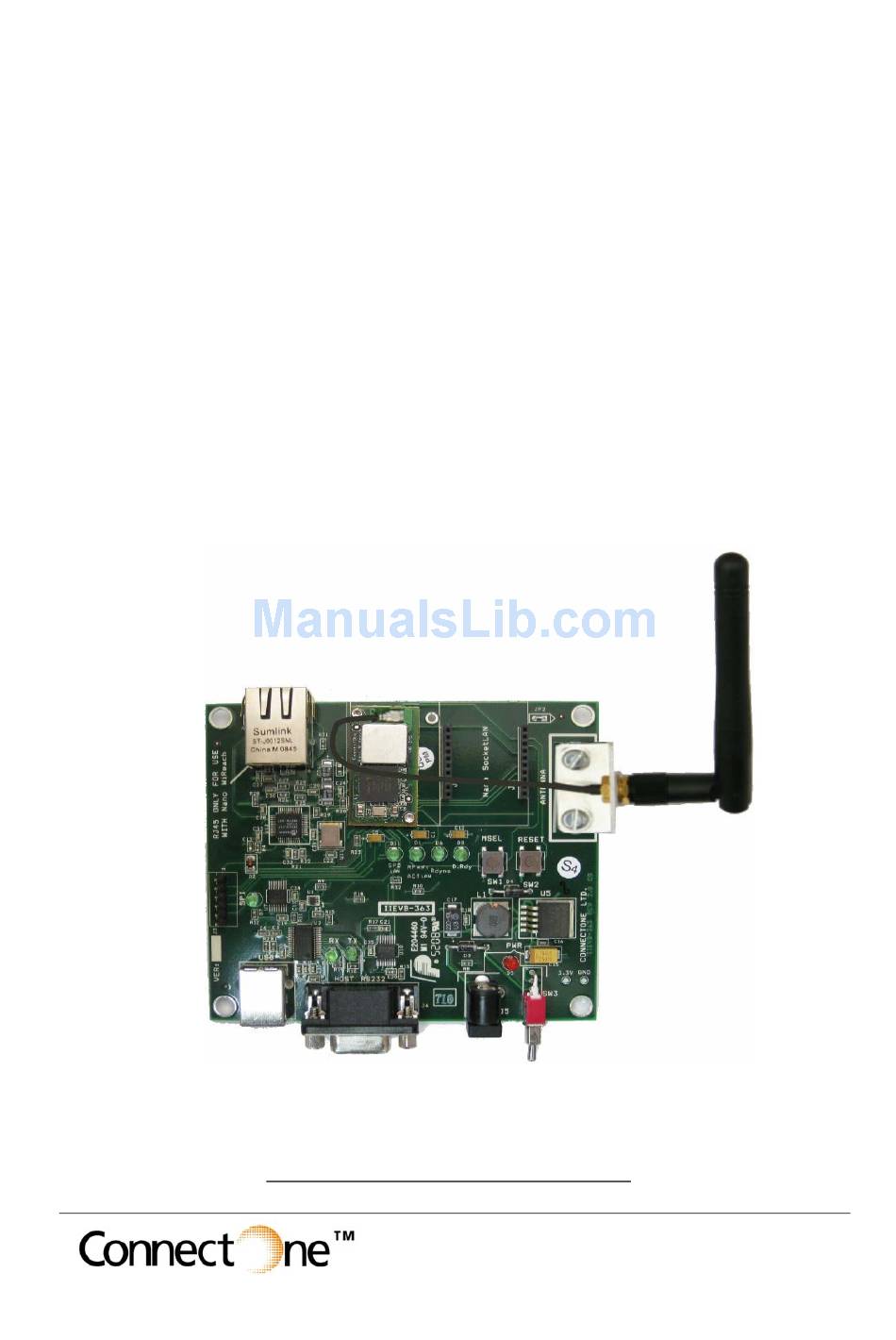

Instant Internet Evaluation Board II-EVB-363MW/L/D rev. 2 User Manual Version 1.15 Copyright © 2008,2009 Connect One Ltd. USA: International: Connect One Semiconductors, Inc. Connect One Ltd. 560 S. Winchester Blvd. 20 Atir Yeda Street Suite 500 Kfar Saba 44643, Israel...
Page 2 No license is granted by implication or otherwise under any patent rights of Connect One other than for circuitry embodied in Connect One’s products. Connect One reserves the right to change circuitry at any time without notice.
Page 3: Table Of Contents
Connect One TABLE OF CONTENTS Introduction......................4 Unpacking ......................4 Connections......................4 Installing the iChipConfig Utility & Evaluation Software ........5 Testing the Nano WiReach Wireless LAN Connection ........5 Testing the Nano LANReach LAN Connection ............6 Additional Connections ..................7 SPI Slave........................7 RJ45 10/100BaseT Ethernet LAN (for Nano WiReach) ...........7 Connectors and Switch Positions................8...
Page 4: Introduction
Connect One Nano modules are secure serial-to-WiFi / serial-to-LAN modules that also act as a bridge to connect serial devices to Ethernet or 802.11b/g wireless LANs. The Nano modules fit into a compact form factor and utilizes Connect One’s iChip ™...
Page 5: Installing The Ichipconfig Utility & Evaluation Software
Manual on the Connect One website at: http://www.connectone.com/support.asp?did=42 To assist in configuring and evaluating the iChip and the Nano modules, Connect One supplies the iChipConfig Utility. This is a Windows-based GUI program that contains intuitive dialog boxes to fully configure iChip. It doesn’t require any knowledge of AT+i commands.
Page 6: Testing The Nano Lanreach Lan Connection
Connect One COM port. When using a USB connection, select the USB virtual COM being used. 5. Enter the AT+iRP11 command to obtain a report of all the Access Points available in your area. 6. Enter AT+iWLSI=<ssid>. ssid is the ID of the Access Point you connect to.
Page 7: Additional Connections
Connect One opening a socket. You may also try to PING the iChip from another station on the network. Additional Connections The Nano modules support two additional connections: SPI Slave The Nano modules support an alternative Host interface to the RS232 Serial port and the USB connection.
Page 8: Connectors And Switch Positions
Connect One Connectors and Switch Positions Nano SocketLAN RJ45 LAN (For use exclusively Nano WiReach or with Nano WiReach) Antenna Nano LANReach (exclusively for Nano WiReach Connection Module Reset Mode Select RS232 Serial Connection +9VDC Power Switch Connection Power Jack...
Page 9: Ii-Evb-363 Bill Of Materials
Connect One II-EVB-363 Bill of Materials Item Quant. Reference Part Manufacturer C1,C5,C12 10UF/6.3V C3,C4 15PF C6,C11,C16,C18,C22,C23,C24, C27,C28,C29,C30,C31,C32,C33, C34,C35 100NF C7,C8,C9,C10,C13,C19,C20,C21 470NF 10UF/25V 220UF/10V C25,C26 100UF/6.3V D1,D11 G.LED LLN4148 1N4001 MUR115 R.LED D6,D7,D8,D9,D10 GREEN LED 1,2,3.3V,GND JUMPER USB-B 52991-0308 Molex CON6...
Page 10 USB-B USB-B 10UF/6.3V 10UF/6.3V 15PF 15PF 15PF 15PF VDD1 TXD0 RXD0 TACK_SW TACK_SW nRTS0 nCTS0 MSEL DATA_RDY DATA_RDY RF_ACT_LED nRESET VDD1 nRESET G.LED G.LED nSPI1_CLK nSPI1_CS nSPI1_CS nSPI1_MOSI nSPI1_MISO READYNESS nSPI1_INT READYNESS VDD1 EREFCK ETXEN ERXER CRSDV nSPI1_INT EMDC EMDIO nSPI1_MISO ERX1 ETX1...
Page 11 100NF 100NF F4100-50MHZ F4100-50MHZ REF_CLK/XT2 EREFCK AVDD1 ETX1 ETX0 ETXEN TX_EN TX_CLK/ISOLATE RXD3/PHYAD3 RXD2/PHYAD2 ERX1 RXD1/PHYAD1 ERX0 RXD0/PHYAD0 RX_CLK/10BTSER AVDD1 CRSDV RX_DV/TESTMODE SHILD BK2125HM601 BK2125HM601 TX_ER/TXD4 SHILD 100NF 100NF ERXER RX_ER/RXD4/RPTR COL/RMII AVDDR AGND1 CRS/PHYAD4 100NF 100NF AVDDR 100UF/6.3V 100UF/6.3V 100UF/6.3V 100UF/6.3V 100NF...
Page 12 3.3V 3.3V JUMPER JUMPER 1N4001 1N4001 VDD1 FEEDBACK DC-JACK-MALE DC-JACK-MALE SWITCH SWITCH OTPUT 220UF/10V 220UF/10V 100NF 100NF 10UF/25V 10UF/25V 68UH/1A 68UH/1A LM2591HVS-3.3 LM2591HVS-3.3 MUR115 MUR115 100NF 100NF R.LED R.LED 100NF 100NF 100K 100K READYNESS NC7WZ04P6X NC7WZ04P6X GREEN LED GREEN LED CEXT 100K 100K...
Page 13: Appendix 2: Nano Wireach Mechanical Views
Connect One Appendix 2: Nano WiReach Mechanical Views II-EVB-363NW User’s Manual...
Page 14: Appendix 3: Nano Lanreach Mechanical Views
Connect One Appendix 3: Nano LANReach Mechanical Views II-EVB-363NW User’s Manual...
Page 15: Appendix 4: Installing Usb Drivers On A Pc
Folder Options. 2. Copy usbser4.sys to C:\WINDOWS\system32\drivers. 3. Connect one end of a USB cable to your PC. Connect the other end to the USB Nano WiReach “device” connector of the II-EVB-363 board on which the mounted.
Page 16 Connect One 6. When prompted with the message “What do you want the wizard to do?” Select Install the software automatically (Recommended). See Figure 2. Figure 2 II-EVB-363NW User’s Manual...
Page 17 Connect One 7. Windows will install the driver. See Figure 3. Figure 3 Figure 4 8. When a pop-up window reports that the software for the new hardware — Connect One Sabalo USB Device — has not passed Windows Logo testing, select Continue Anyway.
Page 18: Viewing The Properties Of The New Driver
. In the dialog box displayed, select the Hardware tab. . Click the Device Manager button. . If the Flash memory is empty: Open the Modems list to find the Connect One Sabalo USB Device. The virtual COM port number will be written in the properties information of this device.
Page 19 Connect One Figure 6 II-EVB-363NW User’s Manual...
Page 20: Faqs
Connect One FAQs Q: What should I do if Windows does not automatically locate the driver for the new hardware? A: Please use the “Back” button to browse to the previous step and manually browse to the directory of the iChip Configuration Utility, usually located in “C:\Program Files\iChipConfig”.
Page 21: Appendix 5: Wifi Configuration Notes
Introduction The AT+I programmer’s manual includes full details for WiFi configuration. Please visit the support section on Connect One’s website to obtain the last version. The following is a partial overview of WiFi related commands. Wireless LAN stations operate in one of two modes: Infrastructure or Ad-Hoc.
Page 22: Ichip Wireless Lan Environment Configuration Parameters
Connect One iChip Wireless LAN Environment Configuration Parameters WLCH (Factory Default: 0) In Infrastructure mode, the WLCH parameter must be set to 0. Other available values (1..13) designate the preferred communication channel while in Ad-Hoc mode. WLSI (Factory Default: Empty)
Page 23: Wireless Lan Configuration Web Site Page
Connect One [0..3600]. When WLPS is set to 0, the Marvell chipset Power Save is disabled, even if iChip enters Power Save mode. WLPP (Factory Default: Empty) This parameter sets the wireless LAN WPA1-PSK pass-phrase to be used in generating the WPA1-PSK encryption key. When empty, WPA security is disabled. If WLSI (SSID) is not empty, WPA1-PSK security is enabled for WiFi connections and WLPP is used in generating the WPA1-PSK encryption key.
Page 24: Ichip Wireless Lan Test Mode
Connect One sig lvl Signal Level [%], in the range 0..100 lnk qual Link Quality [%], in the range 0..100 The Configuration website contains a live status page with this and some additional status information: Figure 8: Wireless LAN Web Status Display...
Page 25: Placement And Range Guidelines
• Store printed SSID and WEP or WPA key settings in a safe place. For a complete Wireless LAN Configuration Guide for iChip products download the “WiFi Configuration Guide” form the Connect One Web site at: http://www.connectone.com/support.asp?did=42. II-EVB-363NW User’s Manual...
Page 26: Appendix 6: Spi Host Interface
Connect One Appendix 6: SPI Host Interface Introduction The Nano WiReach contains an SPI slave port, which allows a Host processor to interface the iChip using an SPI Master port. The SPI data transfer shall be based on the 'Command-Response' principle. (Half Duplex).
Page 27: Flow Control - Data From Host To Ichip Flow Control
Connect One The Nano WiReach SPI driver asserts the SPI Control GPIO to indicate to the host to start reading the entire packet, starting with the header word and followed by the packet payload, whose length matches the 12 LSBits of the Header word.
