Connect One II-EVB-365SMT User Manual

Instant internet evaluation board
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

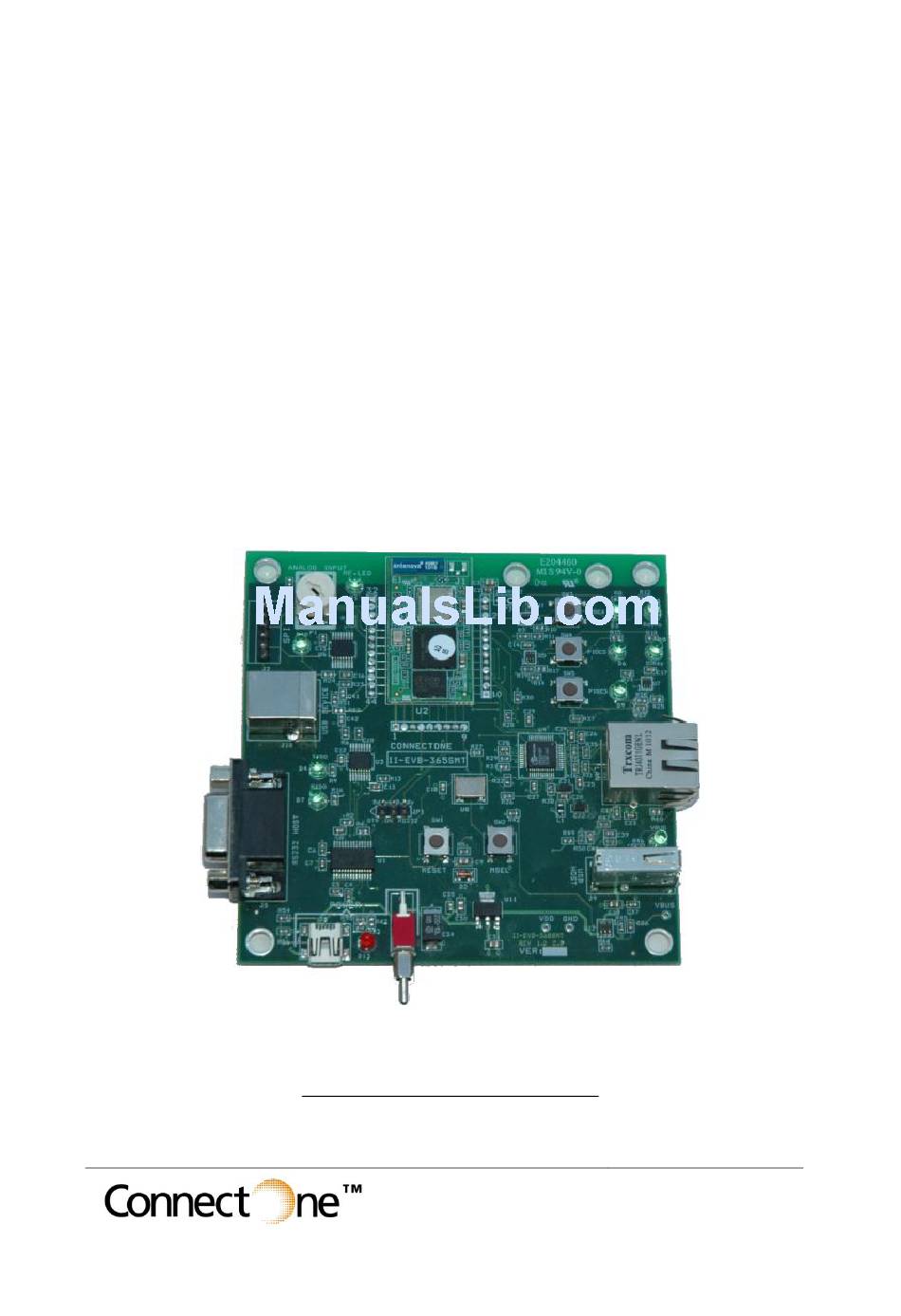

Instant Internet
Evaluation Board
II-EVB-365SMT

User Manual

Version 1.00
Copyright © 2011 Connect One Ltd.
International:
Connect One Ltd.
20 Atir Yeda Street
Kfar Saba 44643, Israel
Phone: +972-9-766-0456
Fax: +972-9-766-0461
Email: sales@connectone.com
http://www.connectone.com
Pub. No. 23-3830-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the II-EVB-365SMT and is the answer not in the manual?

Questions and answers

Related Manuals for Connect One II-EVB-365SMT

Summary of Contents for Connect One II-EVB-365SMT

  • Page 1: User Manual

    Instant Internet Evaluation Board II-EVB-365SMT User Manual Version 1.00 Copyright © 2011 Connect One Ltd. International: Connect One Ltd. 20 Atir Yeda Street Kfar Saba 44643, Israel Phone: +972-9-766-0456 Fax: +972-9-766-0461 Email: sales@connectone.com http://www.connectone.com Pub. No. 23-3830-01...
  • Page 2 No license is granted by implication or otherwise under any patent rights of Connect One other than for circuitry embodied in Connect One’s products. Connect One reserves the right to change circuitry at any time without notice.

  • Page 3: Table Of Contents

    Connect One TABLE OF CONTENTS Introduction ......................4 Unpacking ......................4 Connections ......................4 Installing the iChipConfig Utility & Evaluation Software ........5 Testing the WiFi module Wireless Connection ............. 5 Testing the Nano WiReach SMT Ethernet Connection ......... 6 Additional Connections ..................

  • Page 4: Introduction

     +9VDC Power supply adaptor (110/220 VAC) Connections 1. Communications Cable:  Serial RS232: Connect one end of the RS232 cable to the D-shell, 9- pin female, Host RS232 port on the II-EVB-365 SMT (J5) and connect II-EVB-365 SMT User’s Manual...

  • Page 5: Installing The Ichipconfig Utility & Evaluation Software

    DB-9 connector to the COM1 or COM2 serial port on your PC, or to the serial port of your embedded device.  USB: Connect one the device end of the USB cable to the EVB-365 SMT USB connector (J10) and connect the other end to a Host USB port on your PC or embedded device.

  • Page 6: Testing The Nano Wireach Smt Ethernet Connection

    Connect One 3. In the main window of the utility, click the Dumb Terminal icon. 4. In the Dumb Terminal window, enter the AT+i command to verify that the iChip is communicating with your PC. You should receive an I/OK in response.

  • Page 7: Additional Connections

    Connect One 7. Change the LAN type parameter to 2 (LAN) using the following command: AT+iLTYP=2 Enter AT+iDOWN in order to reset the module and connect to the LAN network. To test the connection, use the iChipConfig utility to perform any activity that requires network connection such as retrieving a web page, sending an email, or opening a socket.
  • Page 8 Connect One Connectors and Switch Positions GPIO Nano WiReach SMT POT for A/D Switches Module Input Connection RJ45 LAN Connection Cellular RS232 Serial Modem Connection Module Mode Power +9VDC Reset Select Switch USB Power Jack II-EVB-365 SMT User’s Manual...

  • Page 9: Ii-Evb-365 Smt Bill Of Materials

    Connect One II-EVB-365 SMT Bill of Materials Item Quant. Reference Part Manufacturer 3 C1,C39,C40 47PF 9 C2,C4,C5,C6,C8,C10,C13,C16,C36 470NF 5 C3,C9,C30,C31,C38 10UF/6.3V C7,C11,C12,C14,C15,C17,C18,C19,C20,C23, C24,C25,C26,C27,C28,C29,C35,C37 100NF 2 C21,C22 100UF/6.3V 1 C34 220UF/10V 2 C41,C42 15PF 10 D1,D3,D4,D5,D6,D7,D8,D9,D10,D14 GREEN LED 1 D2 LLN4148...

  • Page 10: Appendix 1: Nano Wireach Smt Mechanical Views

    Connect One Appendix 1: Nano WiReach SMT Mechanical Views II-EVB-365 SMT User’s Manual...

  • Page 11: Appendix 2: Installing Usb Drivers On A Pc

    Folder Options. 2. Copy usbser4.sys to C:\WINDOWS\system32\drivers. 3. Connect one end of a USB cable to your PC. Connect the other end to the USB “device” connector of the II-EVB-365 SMT board on which the module is mounted.
  • Page 12 Connect One 6. When prompted with the message “What do you want the wizard to do?” Select Install the software automatically (Recommended). See Figure 2. Figure 2 II-EVB-365 SMT User’s Manual...
  • Page 13 Connect One 7. Windows will install the driver. See Figure 3. Figure 3 Figure 4 8. When a pop-up window reports that the software for the new hardware — Connect One Sabalo USB Device — has not passed Windows Logo testing, select Continue Anyway.

  • Page 14: Viewing The Properties Of The New Driver

    3. In the dialog box displayed, select the Hardware tab. 4. Click the Device Manager button. 5. If the Flash memory is empty: Open the Modems list to find the Connect One Sabalo USB Device. The virtual COM port number will be written in the properties information of this device.
  • Page 15 Connect One Figure 6 II-EVB-365 SMT User’s Manual...

  • Page 16: Faqs

    Connect One FAQs Q: What should I do if Windows does not automatically locate the driver for the new hardware? A: Please use the ―Back‖ button to browse to the previous step and manually browse to the directory of the iChip Configuration Utility, usually located in ―C:\Program Files\iChipConfig‖.

  • Page 17: Appendix 3: Wifi Configuration Notes

    Introduction The AT+I programmer’s manual includes full details for WiFi configuration. Please visit the support section on Connect One’s website to obtain the last version. The following is a partial overview of WiFi related commands. Wireless LAN stations operate in one of two modes: Infrastructure or Ad-Hoc.

  • Page 18: Ichip Wireless Lan Environment Configuration Parameters

    Connect One iChip Wireless LAN Environment Configuration Parameters WLCH (Factory Default: 0) In Infrastructure mode, the WLCH parameter must be set to 0. Other available values (1..13) designate the preferred communication channel while in Ad-Hoc mode. WLSI (Factory Default: Empty)

  • Page 19: Wireless Lan Configuration Web Site Page

    Connect One [0..3600]. When WLPS is set to 0, the Marvell chipset Power Save is disabled, even if iChip enters Power Save mode. WLPP (Factory Default: Empty) This parameter sets the wireless LAN WPA1-PSK pass-phrase to be used in generating the WPA1-PSK encryption key. When empty, WPA security is disabled. If WLSI (SSID) is not empty, WPA1-PSK security is enabled for WiFi connections and WLPP is used in generating the WPA1-PSK encryption key.

  • Page 20: Ichip Wireless Lan Test Mode

    Connect One sig lvl Signal Level [%], in the range 0..100 lnk qual Link Quality [%], in the range 0..100 The Configuration website contains a live status page with this and some additional status information: Figure 8: Wireless LAN Web Status Display...

  • Page 21: Placement And Range Guidelines

     Store printed SSID and WEP or WPA key settings in a safe place. For a complete Wireless LAN Configuration Guide for iChip products download the ―WiFi Configuration Guide‖ form the Connect One Web site at: http://www.connectone.com/support.asp?did=42. II-EVB-365 SMT User’s Manual...

  • Page 22: Appendix 4: Spi Host Interface

    Connect One Appendix 4: SPI Host Interface Introduction The Nano WiReach/Socket iWiFi contains an SPI slave port, which allows a Host processor to interface the iChip using an SPI Master port. The SPI data transfer shall be based on the 'Command-Response' principle. (Half Duplex).

  • Page 23: Flow Control - Data From Host To Ichip Flow Control

    Connect One The module’s SPI driver asserts the SPI Control GPIO to indicate to the host to start reading the entire packet, starting with the header word and followed by the packet payload, whose length matches the 12 LSBits of the Header word.
