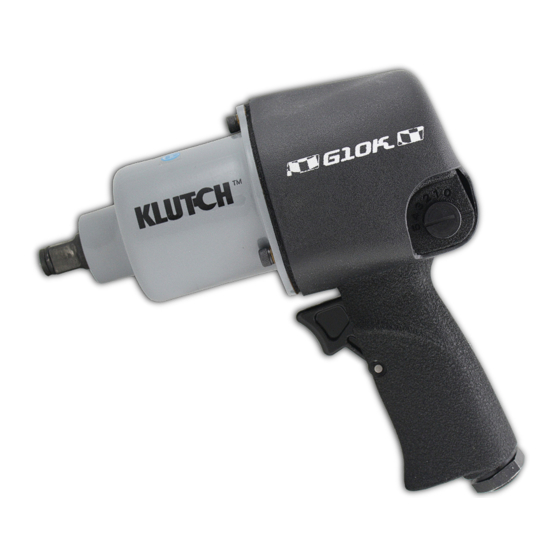

- Page 1 G10K - 1/2" Heavy-Duty Air Impact Wrench OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item # 20068...
- Page 2 Thank you very much for choosing a Klutch™ Product! For future reference, please complete the owner’s record below: Model: _______________ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it.
- Page 3 SAVE THESE INSTRUCTIONS WORK AREA • Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can cause accidents. • Do not use your Impact Wrench where there is a risk of causing a fire or an explosion;...
- Page 4 PNEUMATIC TOOL USE AND CARE • Do not force the tool. Pneumatic tools do a better and safer job when used in the manner for which they are designed. Plan your work, and use the correct tool for the job. •...
- Page 5 TOOL SET UP Air Supply Requirements Tool is designed to operate at 90 psi (6.2 bar) at free speed measured at the tool, of clean, dry air. Operating this tool at higher pressures will drastically reduce the tool life and could cause injury. The air inlet thread on this tool is a standard 1/4”...
- Page 6 MAINTENANCE WARNING: Make sure the Impact Wrench is disconnected from its power source before attempting any maintenance, cleaning, or inspection. • Maintain your Impact Wrench. It is recommended that the general condition of any tool be examined before it is used. Keep your Impact Wrench in good repair by adopting a program of conscientious repair and maintenance in accordance with the recommended procedures found in this manual.
-
Page 7: Diagram And Parts List
G10K DIAGRAM AND PARTS LIST 34 19 PART PART DESCRIPTION Q’TY PART NO. PART DESCRIPTION Q’TY RSRG23201 HOUSING ASSEMBLY RSRG23224 CYLINDER RS85302 THROTTLE VALVE BUSHING RS85327 CYLINDER DOWEL RS85303 VALVE O-RING RS85340 HAMMER CASE BUSHING RS85304 VALVE SPRING RS85329 ROTOR BLADE (Pkt. of 6) - Page 8 Distributed by Northern Tool + Equipment Co., Inc. Burnsville, MN 55306 Northern Tool.com Made in Taiwan 20068 Rev: 04/19/11...
