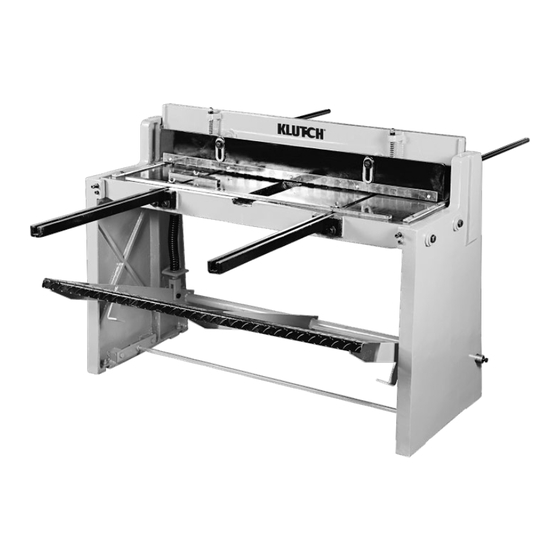

DELUXE FOOT SHEAR
OWNER'S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and
other basic safety precautions may result in serious personal injury.
Item# 49677
Thank you very much for choosing a Klutch product. For future reference, please complete the
owner's record below:
Serial Number/Lot Date Code: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual
to become familiar with this product before you begin using it.
This deluxe foot shear is designed for certain applications only. Northern Tool and Equipment
cannot be responsible for issues arising from modification or use of this product in an
application for which it was not designed. We strongly recommend that this product not be
modified and/or used for any application other than that for which it was designed.
For technical questions please call 1-800-222-5381.
Table of Contents
Intended Use ----------------------------------------------------------------------------------------------- 1
Technical Specifications ---------------------------------------------------------------------------------- 1
Important Safety Information ----------------------------------------------------------------------------- 2
Specific Operation Warnings ----------------------------------------------------------------------------- 3
Assembly --------------------------------------------------------------------------------------------------- 3
Before Each Use ------------------------------------------------------------------------------------------- 4
Operating Instructions ------------------------------------------------------------------------------------ 4
After Each Use --------------------------------------------------------------------------------------------- 7
Maintenance ----------------------------------------------------------------------------------------------- 7
Parts Diagram ---------------------------------------------------------------------------------------------- 8
Parts List --------------------------------------------------------------------------------------------------- 9
Troubleshooting ------------------------------------------------------------------------------------------ 10
Replacement Parts --------------------------------------------------------------------------------------- 10
Limited Warranty ----------------------------------------------------------------------------------------- 10
Intended Use
This sheet metal shear is used to cut sheet metal up to 52 inches wide and is capable of cutting
16-ga. mild carbon steel up to 0.06 inches (1.5mm) thick, 30-ga. stainless steel up to 0.01 inches
(0.3mm) thick, aluminum up to 0.08 inches (2mm) thick, and more.
Technical Specifications
Property
Specification
Max. Cutting Length (in.)
52
Max. Cutting Thickness (mm)
1.5
Max. Lift Height (in.)
1/4
Max. Depth (in.)
37
Max. Cutting Dimensions (in.)
52
Dimensions L x W x H (in.)
60 x 86 3/4 x 45 1/4
DELUXE FOOT SHEAR
OWNER'S MANUAL
Purchase Date: _______________
1 of 11
Advertisement
Table of Contents
Related Manuals for Klutch 49677
Summary of Contents for Klutch 49677
- Page 1 DELUXE FOOT SHEAR OWNER’S MANUAL Thank you very much for choosing a Klutch product. For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: _______________ Purchase Date: _______________ DELUXE FOOT SHEAR Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it.
- Page 2 DELUXE FOOT SHEAR DELUXE FOOT SHEAR OWNER’S MANUAL OWNER’S MANUAL Important Safety Information CAUTION: WARNING: SHEAR USE AND CARE • Read and understand all instructions. Failure to follow instructions may result in serious • Do not force the shear. Tools do a better and safer job when used in the manner for which injury.
-
Page 3: Operating Instructions
DELUXE FOOT SHEAR DELUXE FOOT SHEAR OWNER’S MANUAL OWNER’S MANUAL Before Each Use Tighten the socket screws to lock the rods in place. (See Figure 2) WARNING: • Inspect the shear and accessories for damage or excessive wear before each use. If you find damage do not use the shear. - Page 4 DELUXE FOOT SHEAR DELUXE FOOT SHEAR OWNER’S MANUAL OWNER’S MANUAL CUTTER HEAD ADJUSTMENT After Each Use The bow bolt (70) can be adjusted if the cutter head cannot cut the workpiece. Tighten the bolt • Clear away any scraps or debris to setup for the next operation. with forward strength, which can help reduce the clearance between upper blade (24) and lower •...
- Page 5 DELUXE FOOT SHEAR DELUXE FOOT SHEAR OWNER’S MANUAL OWNER’S MANUAL Parts Diagram Parts List Part No. Description Q’ty Part No. Description Q’ty Work Table Washer Frame Screw Pressing plate Spring Right Stand Washer Left Stand Upper Connecting Block Connecting Rod Lower Connecting Block Screw Bolt...
-
Page 6: Troubleshooting
Northern Tool and Equipment Company, Inc. ("We'' or '"Us'') warrants to the original purchaser only ("You'' or “Your”) that the Klutch product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of one year from date of purchase.
