Page 1: Wall Mounted

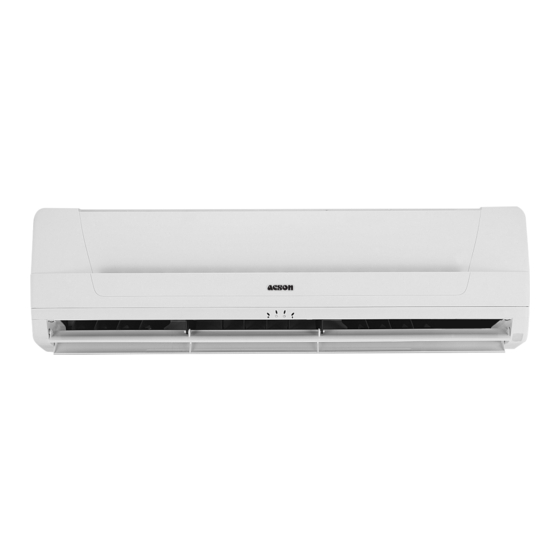

WALL MOUNTED SPLIT TYPE AIR CONDITIONER MANUAL OM-G12-ACSON... -
Page 2: Operating Guide
CONTENTS - Operating Guide page 1 - G12 Remote Controller Indication page 2 - Indicator Lights page 4 - Installation of Aroma page 5 - Auto Random Re-Start Function page 5 - Service and Maintenance page 5 - Troubleshooting page 6 OPERATING GUIDE 1. - Page 3 G12 Remote Controller Indication Function Actions RECALL PRESS ONCE for P1 & TWICE FOR P2 PRESS & HOLD BUTTON for 3s to INITATE PERSONALISED SETTING SELECT P1 OR P2 PROGRAM SET INDIVIDUAL SETTINGS eg. MODE, SET TEMP or FAN SPEED LEAVE for 4s to SAVE PRESS &...
- Page 4 HOW TO MOUNT ONTO THE WALL TO INSERT BATTERIES...
- Page 5 INDICATOR LIGHTS IR signal receiver When an infrared remote control operating signal has been transmitted, the signal receiver on the indoor unit will make a <beep> sound to confirm acceptance of the signal transmission. IR Receiver LED indicator lights Cooling unit The table shows the LED indicator lights for the air condi- tioner unit under normal operation and fault conditions.
- Page 6 INSTALLATION OF AROMA Unscrew the air discharge housing. Flip open the air discharge housing. Remove the aroma tray from the bracket as shown in the picture, replace the new aroma tray into the bracket. Close the air discharge housing and thighten it with screw. ! Caution 3.
- Page 7 Off the unit. Unscrew the air discharge housing. Flip open the air discharge housing. Clean the blower. Close the air discharge housing and tighten it with screw. ! Caution Do not operate any heating apparatus too close to the air conditioner unit. This may cause the plastic panel to melt or deform as a result of the excessive heat.
- Page 8 • In the event that there is any conflict in the interpretation of this manual and any translation of the same in any language, the English version of this manual shall prevail. • The manufacturer reserves the right to revise any of the specification and design contain herein at any time without prior notification.
