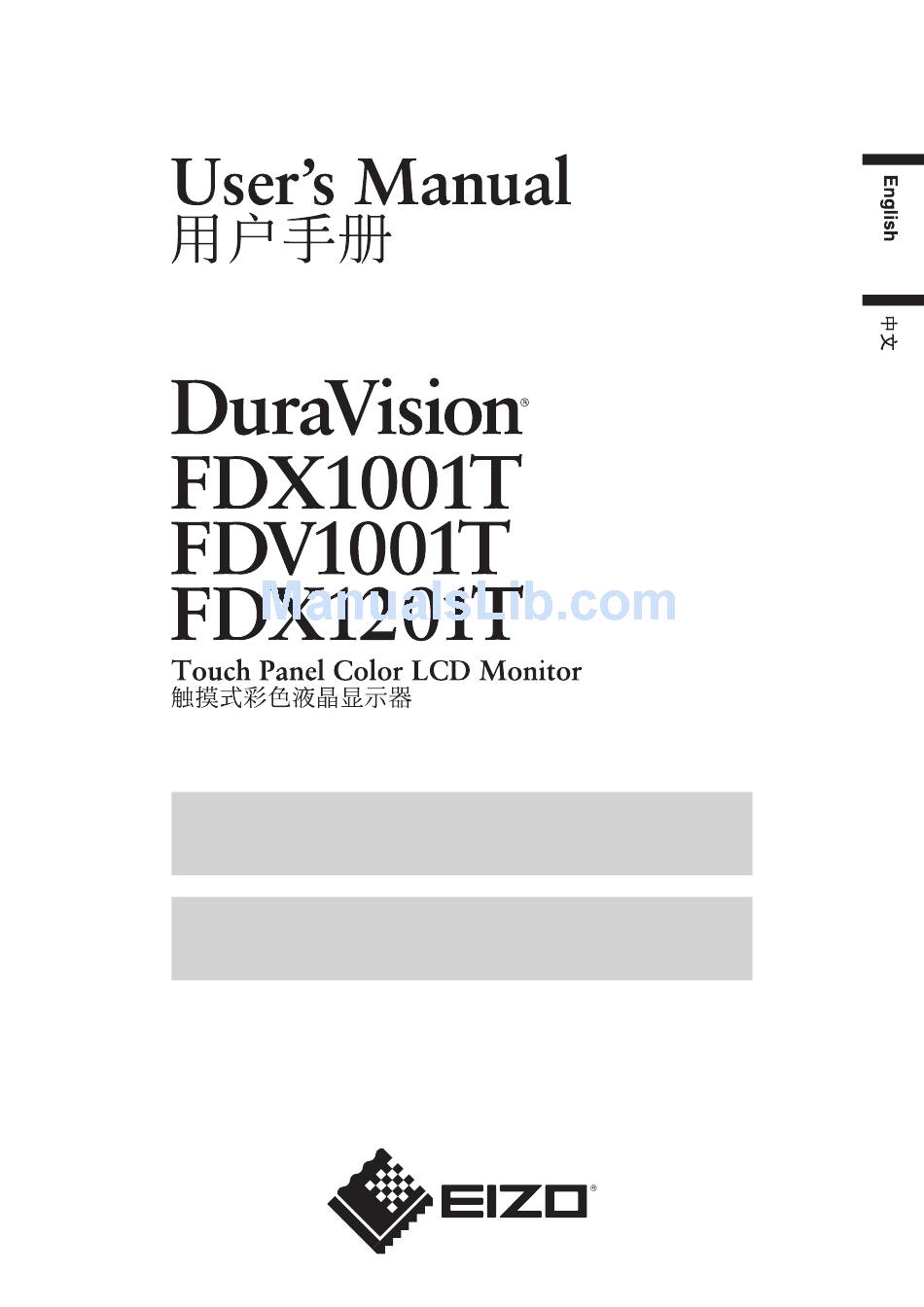

- Page 1 Important Please read this User’s Manual carefully to familiarize yourself with safe and effective usage. Please retain this manual for future reference. 重要事项 请仔细阅读用户手册，掌握如何安全、有效地使用本产品。请保留本手册， 以备日后参考。...
- Page 3 NEC is a registered trademark of NEC Corporation. PC-9801 and PC-9821 are trademarks of NEC Corporation. EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor, and ScreenManager are registered trademarks of EIZO NANAO CORPORATION in Japan and other countries.
-
Page 4: Precautions
PRECAUTIONS IMPORTANT • This product is intended to be used with an industrial device designed to build industrial systems. - Transportation systems (Ship, aircraft, train, automobile, etc.) - Safety devices (Disaster prevention system, security control system, etc.) - Equipment with direct effect on human life (Life support systems, Medical equipment or devices used in the operating room, etc.) - Nuclear energy control devices (Nuclear energy control systems, security control systems of nuclear facilities, etc.) - Page 5 WARNING Use the enclose AC adapter. The enclosed AC adapter is for use with this product only. Do not use the AC adapter with other equipment. Connecting to power sources that do not match the power ratings of the AC adapter may result in fire or electric shock.
- Page 6 CAUTION Handle with care when carrying the unit. Disconnect the power cord and cables when moving the unit. Moving the unit with the cord attached is dangerous. It may result in injury. Do not install the unit in a closed space. If the inerior becomes hot, it may result in fire, electric shock or damage.
-
Page 7: Notice For This Monitor
Notice for this monitor This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications. This product may not be covered by warranty for uses other than those described in this manual. Only use optional products manufactured or specified by us with this product. - Page 8 Cleaning ATTENTION • Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the panel, and also quality deterioration of the image. • Never use any thinner, benzene, wax, and abrasive cleaner, which may damage the panel. •...
-
Page 9: Table Of Contents
CONTENTS Cover ............1 PRECAUTIONS ..........3 Notice for this monitor ..........6 CONTENTS ............8 Chapter 1 Introduction ......... 9 1-1. Features .............. 9 1-2. Package Contents ..........10 Chapter 2 Assembly ........... 11 Chapter 3 Settings and Adjustments ....14 3-1. -
Page 10: Chapter 1 Introduction
Thank you very much for choosing an EIZO color LCD monitor. 1-1. Features • FDX1001T / FDV1001T: 10.4-inch screen, FDX1201T: 12.1-inch screen • Resolution - FDX1001T / FDX1201T: XGA (1024 × 768) display compliant - FDV1001T: VGA (640 × 480) display compliant • Maximum brightness FDX1001T: 460 cd/m... -
Page 11: Package Contents
1-2. Package Contents Please contact your local dealer for assistance if any of the listed items are missing or damaged. NOTE • Please retain the packing materials for future transport of the monitor. • LCD Monitor • AC Adapter • Cable Tie •... -
Page 12: Chapter 2 Assembly
Chapter 2 Assembly ● Exterior view FDX1001T / FDV1001T unit : mm (inch) 26(1.02) 26(1.02) 430(16.9) 233(9.2) 482±1(19.0±0.04) 465(18.3) 410(16.1) 213(8.4) 6×12 (0.24×0.47) Rack mounting holes 4 (0.25) Handle mounting holes Maintenance port Video input connector Serial port for the touch panel... - Page 13 FDX1201T unit : mm (inch) 26(1.02) 26(1.02) 430(16.9) 272(10.7) 482±1(19.0±0.04) 465(18.3) 410(16.1) 247.4(9.7) 6×12 (0.24×0.47) Rack mounting holes 4 (0.25) Handle mounting holes Video input connector Maintenance port Serial port for the touch panel S-Video input connector Power Jack DC-IN D-Sub mini 15-pin connector For use with an EIZO AC adapter only Chapter 2 Assembly...
- Page 14 ● How to assemble ATTENTION • This monitor can be attached to a 19-inch rack compliant with the EIA standards Dimensions of rack mounting holes 15.875(0.63) 31.75(1.25) 15.875(0.63) 12.7(0.5) 12.7(0.5) 15.875(0.63) Wide pitch Universal pitch 31.75(1.25) 15.875(0.63) 12.7(0.5) 12.7(0.5) 450(17.7) 465.1(18.3) unit : mm (inch) EIA standards: Standards concerning sizes of racks and devices to be stored in the racks specified by Electric Industries Association...
-
Page 15: Chapter 3 Settings And Adjustments
Chapter 3 Settings and Adjustments 3-1. Buttons button Switches the input signal. Displays the Setting menu, fixes the setting or adjustment items on each menu, and saves the button setting or adjustment results. • Used to select the setting or adjustment items, or to increase or decrease the adjustment values on each menu. -
Page 16: Basic Operation And Functions
3-2. Basic Operation and Functions Basic operation of Setting menu Displaying Setting Menu Press Setting/Adjusting Exiting Choose [Exit] with , and press NOTE • Keeping pressed for 2 seconds will also exit the Setting menu. Chapter 3 Settings and Adjustments... - Page 17 Functions The settings adjustable in the Setting menu are as shown below. The availability of items depends on the input signal. : Configurable : Not configurable ― √ Setting / Setting / adjustable item Video Setting / adjustable content adjustable value Color Brightness 0 - 30...
- Page 18 Setting / Setting / Video Setting / adjustable content adjustable item adjustable value Others Video Aspect Normal/100% ― Configures the display range of the input image √ (overscan). “Normal” : Displays the input image with the outmost parts slightly cut off. * This is how display devices normally display images.
-
Page 19: Chapter 4 Troubleshooting
Chapter 4 Troubleshooting If a problem still remains after applying the suggested remedies, contact your local dealer. Common Problems Possible cause and remedy No picture • Check whether the power cord is connected correctly. • Power indicator does not light. •... - Page 20 Touch panel problems Problems Possible cause and remedy Cursor position is not correct. / Cursor • Turn off and on the monitor. If the symptom is not jumps. improved, perform the calibration on the monitor. • Touch with one finger only. •...
-
Page 21: Chapter 5 Reference
Chapter 5 Reference 5-1. Specifications FDX1001T LCD Panel Size 10.4-inch (260 mm) TFT color LCD Surface treatment Anti-glare Surface hardness Viewing angle Horizontal 160°, Vertical 130° (CR : 10 or more) Dot Pitch 0.2055 mm Display Area (H × V) 210.4 mm ×... - Page 22 Environmental Temperature [Operating temperature] Conditions Main unit : 0 °C - 50 °C (32 °F - 122 °F) AC adapter : 0 °C - 40 °C (32 °F - 104 °F) [Storage temperature] -20 °C - 60 °C (-4 °F - 140 °F) Humidity [Operating humidity] Main unit : 20% - 90% R.H.
- Page 23 Dimensions 482 mm (19.0 inch) × 220 mm (8.7 inch) × 46 mm (1.81 inch) (Width) × (Height) × (Depth) (excluding the projection) Mass Approx. 3.2 kg (7.1 lbs.) Environmental Temperature [Operating temperature] Conditions Main unit : 0 °C - 50 °C (32 °F - 122 °F) AC adapter : 0 °C - 40 °C (32 °F - 104 °F) [Storage temperature] -20 °C - 60 °C (-4 °F - 140 °F)
- Page 24 Power Screen Display On AC adapter (AC) : 20 W or less Consumption Main unit (DC) : 17 W or less Power Off AC adapter (AC) : 1.6 W or less Main unit (DC) : 0.8 W or less Dimensions 482 mm (19.0 inch) ×...
-
Page 25: Glossary
1024 (FDX1001T / FDX1201T) / 640 (FDV1001T) horizontal pixels and 768 (FDX1001T / FDX1201T) / 480 (FDV1001T) vertical pixels. At a resolution of 1024 × 768 (FDX1001T / FDX1201T) / 640 × 480 (FDV1001T), all pixels are illuminated as a full screen (1:1). -
Page 26: Preset Timing
• If a signal other than those listed in the table is input, adjust the screen using the Setting menu. However, screen display may still be incorrect even after the adjustment. • When interlace signals are used, the screen cannot be displayed correctly even after screen adjustment using the Setting menu. FDX1001T / FDX1201T Frequency Polarity Applicable... -
Page 27: Limited Warranty
LIMITED WARRANTY EIZO NANAO CORPORATION (hereinafter referred to as “EIZO”) and distributors authorized by EIZO (hereinafter referred to as the “Distributors”) warrant, subject to and in accordance with the terms of this limited warranty (hereinafter referred to as the “Warranty”), to the original purchaser (hereinafter referred to as the “Original Purchaser”) who purchased the product specified in this document (hereinafter referred to as the “Product”) from EIZO or Distributors, that EIZO and Distributors shall, at their sole discretion, either repair or replace the Product at no charge if the Original Purchaser becomes aware within the Warranty Period (defined below) that the Product malfunctions or is damaged in the... - Page 28 Helmut-Grashoff-Straße 18, 41179 Mönchengladbach, Germany Phone: +49 2161 8210210 Fax: +49 2161 8210150 中国苏州市苏州工业园区展业路8号中新科技工业坊5B Phone: +86 512 6252 0100 Fax: +86 512 6252 1508 http://www.eizo.com 4th Edition-November, 2012 Printed in Japan. 00N0L625D1 Copyright © 2010-2012 EIZO NANAO CORPORATION All rights reserved. (U.M-FDX1001T-R-AL)
