Read this manual carefully before operating this vehicle.
q

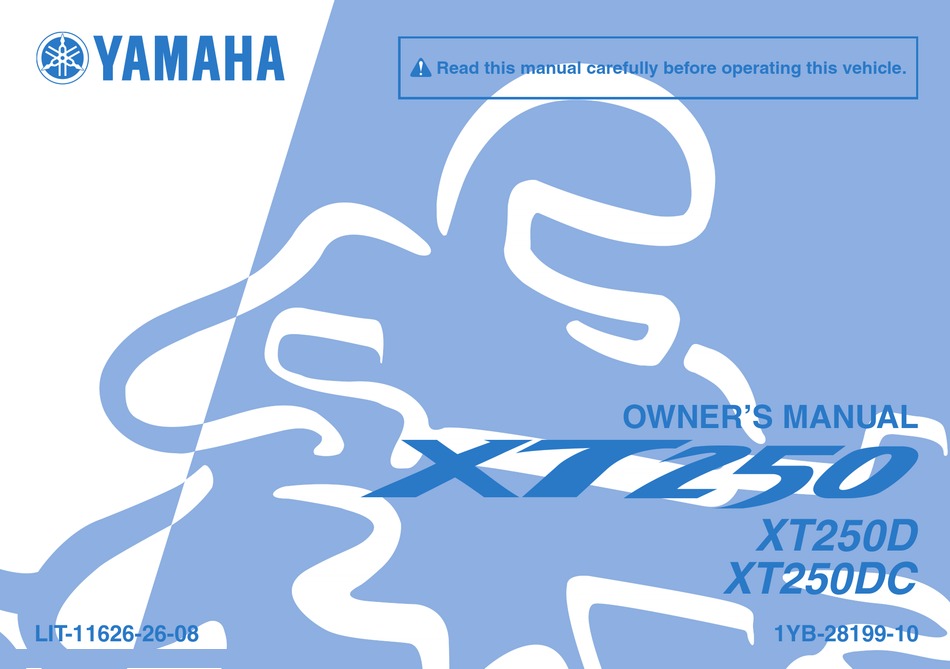

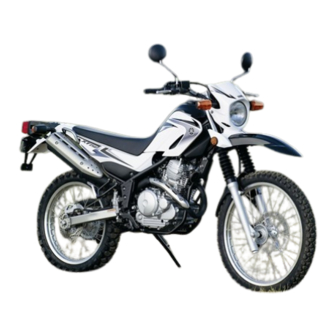

OWNER'S MANUAL
XT250D
XT250DC
LIT-11626-26-08
1YB-28199-10

Advertisement

Table of Contents
loading

Related Manuals for Yamaha XT250D

Summary of Contents for Yamaha XT250D

  • Page 1 Read this manual carefully before operating this vehicle. OWNER’S MANUAL XT250D XT250DC LIT-11626-26-08 1YB-28199-10...
  • Page 2 EAU10042 Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold.
  • Page 3 Yamaha has met these standards without reducing the performance or economy of operation of the motorcycle. To maintain these high standards, it is important that you and your Yamaha dealer pay close attention to the recommended maintenance schedules and operating instructions contained within this manual.

  • Page 4: Important Manual Information

    IMPORTANT MANUAL INFORMATION EAU10133 Particularly important information is distinguished in this manual by the following notations: This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
  • Page 5 IMPORTANT MANUAL INFORMATION EAU10193 XT250D/XT250DC OWNER’S MANUAL ©2012 by Yamaha Motor Corporation, U.S.A. 1st edition, March 2012 All rights reserved. Any reprinting or unauthorized use without the written permission of Yamaha Motor Corporation, U.S.A. is expressly prohibited. Printed in Japan.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS LOCATION OF IMPORTANT FOR YOUR SAFETY – Spoke wheels ....... 7-20 LABELS ..........1-1 PRE-OPERATION CHECKS ..... 5-1 Adjusting the clutch lever free play ..........7-21 SAFETY INFORMATION ....2-1 OPERATION AND IMPORTANT Adjusting the brake lever free RIDING POINTS.........
  • Page 7 SPECIFICATIONS ......9-1 CONSUMER INFORMATION... 10-1 Identification numbers ....10-1 Reporting safety defects ....10-3 Motorcycle noise regulation ..10-4 Maintenance record ...... 10-5 YAMAHA MOTOR CORPORATION, U.S.A. STREET AND ENDURO MOTORCYCLE LIMITED WARRANTY ......10-7 YAMAHA EXTENDED SERVICE (Y.E.S.) ..... 10-9...

  • Page 8: Location Of Important Labels

    Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label is available from your Yamaha dealer.
  • Page 9 LOCATION OF IMPORTANT LABELS 1 California only Cold tire normal pressure should be set as follows. Up to 90 kg (198 Ibs) load FRONT : 125 kPa, ( 1.25 kgf / cm ), 18 psi REAR : 150 kPa, ( 1.50 kgf / cm ), 22 psi 90 kg (198 Ibs) maximum load...
  • Page 10 LOCATION OF IMPORTANT LABELS...
  • Page 11 LOCATION OF IMPORTANT LABELS...

  • Page 12: Safety Information

    SAFETY INFORMATION EAU1031B Take a training course. Beginners • Use extra caution when you are should receive training from a cer- approaching passing tified instructor. Contact an autho- through intersections, since in- Be a Responsible Owner rized motorcycle dealer to find out tersections are the most likely As the vehicle’s owner, you are respon- about the training courses nearest...
  • Page 13 SAFETY INFORMATION tice riding your motorcycle with both hands and keep both that covers your legs, ankles, and where there is no traffic until you feet on the passenger footrests. feet. The engine or exhaust sys- have become thoroughly famil- Never carry a passenger unless tem become very hot during or af- iar with the motorcycle and all of...
  • Page 14 Yamaha accessories, which are avail- to minimize imbalance or instabili- of the motorcycle is changed. To avoid able only from a Yamaha dealer, have the possibility of an accident, use ex- been designed, tested, and approved ...

  • Page 15: Specifications

    SAFETY INFORMATION mended by Yamaha, even if sold and limit suspension travel, steering not recommended.  installed by a Yamaha dealer. travel or control operation, or ob- Use caution when adding electri- scure lights or reflectors. cal accessories. If electrical acces- Aftermarket Parts, Accessories, •...
  • Page 16 SAFETY INFORMATION  Point the front wheel straight ahead on the trailer or in the truck bed, and choke it in a rail to pre- vent movement.  Shift the transmission in gear (for models with a manual transmis- sion). ...

  • Page 17: Description

    DESCRIPTION EAU10410 Left view 1. Headlight (page 7-33) 2. Fuel tank cap (page 4-7) 3. Air filter element (page 7-16) 4. Helmet holder (page 4-10)

  • Page 18: Right View

    DESCRIPTION EAU10420 Right view 2, 3 1. Spark arrester (page 7-17) 8. Engine oil filler bolt (page 7-13) 2. Fuse box 1 (page 7-32) 3. Fuse box 2 (page 7-32) 4. Battery (page 7-31) 5. Main fuse (page 7-32) 6. Owner’s tool kit (page 7-2) 7.

  • Page 19: Controls And Instruments

    DESCRIPTION EAU10430 Controls and instruments 1. Clutch lever (page 4-6) 8. Throttle grip (page 7-18) 2. Left handlebar switches (page 4-5) 3. Indicator lights (page 4-2) 4. Main switch/steering lock (page 4-1) 5. Multi-function display (page 4-3) 6. Right handlebar switches (page 4-5) 7.

  • Page 20: Instrument And Control Functions

    INSTRUMENT AND CONTROL FUNCTIONS EAU10461 EAU10661 To lock the steering Main switch/steering lock All electrical systems are off. The key can be removed. EWA10061 WARNING Never turn the key to “OFF” or “LOCK” while the vehicle is moving. Otherwise the electrical systems will be switched off, which may result in loss of control or an accident.

  • Page 21: Indicator Lights And Warning Lights

    ” initially when the key is turned to “ON”, 5. Neutral indicator light “ ” or if the warning light remains on, have a Yamaha dealer check the electrical EAU11020 circuit. Turn signal indicator light “ ” This indicator light flashes when the...

  • Page 22: Multi-Function Display

    Changing a Yamaha dealer check the electrical settings while riding can distract the circuit. operator and increase the risk of an accident. 1. Odometer/tripmeter (bottom) 2.
  • Page 23 INSTRUMENT AND CONTROL FUNCTIONS SET” buttons. ous tripmeter and odometer modes in button.  When the key is turned to “ON”, all the following order: F-TRIP  TRIP (top)  TRIP (bottom) of the display segments of the Clock mode ...

  • Page 24: Handlebar Switches

    ” code, note the code number, and then Set this switch to “ ” before starting have a Yamaha dealer check the vehi- the engine. Set this switch to “ ” to cle. stop the engine in case of an emergen-...

  • Page 25: Clutch Lever

    INSTRUMENT AND CONTROL FUNCTIONS with the starter. See page 6-1 for start- EAU12820 EAU12871 Clutch lever Shift pedal ing instructions prior to starting the en- gine. 1. Clutch lever 1. Shift pedal The clutch lever is located at the left The shift pedal is located on the left handlebar grip.

  • Page 26: Brake Lever

    INSTRUMENT AND CONTROL FUNCTIONS EAU12891 EAU12941 EAUM1793 Brake lever Brake pedal Fuel tank cap To remove the fuel tank cap 1. Open the fuel tank cap lock cover. 2. Insert the key into the lock and turn it 1/4 turn clockwise. The lock will be released and the fuel tank cap can be removed.

  • Page 27: Fuel

    INSTRUMENT AND CONTROL FUNCTIONS EAU13212 Fuel Make sure there is sufficient gasoline in the tank. EWA10881 WARNING Gasoline and gasoline vapors are extremely flammable. To avoid fires and explosions and to reduce the risk of injury when refueling, follow these instructions. 1.

  • Page 28: Seat

    Your Yamaha engine has been de- signed to use unleaded gasoline with a pump octane number [(R+M)/2] of 86 or...

  • Page 29: Helmet Holder

    This shock absorber assembly is equipped with a spring preload adjust- ing ring. It is recommended to have a Yamaha dealer adjust the spring preload. How- ever, if you choose to make this adjust- ment yourself, obtain a special wrench 1.
  • Page 30 Do not dispose of a damaged or torque. NOTICE: Always tighten worn-out shock absorber as- the locknut against the adjust- sembly yourself. Take the shock ing ring, and then tighten the absorber assembly to a Yamaha locknut specified dealer for any service. 1. Locknut torque.

  • Page 31: Sidestand

    INSTRUMENT AND CONTROL FUNCTIONS EAU15305 Yamaha dealer repair it if it does not EAU15314 Sidestand Ignition circuit cut-off system function properly. The sidestand is located on the left side The ignition circuit cut-off system (com- of the frame. Raise the sidestand or...
  • Page 32 INSTRUMENT AND CONTROL FUNCTIONS WARNING With the engine turned off: 1. Move the sidestand down. If a malfunction is noted, have a Yamaha 2. Make sure that the engine stop switch is set to “ ”. dealer check the system before riding.

  • Page 33: For Your Safety - Pre-Operation Checks

    • If necessary, add recommended oil to specified level. 7-13 • Check vehicle for oil leakage. • Check operation. • If soft or spongy, have Yamaha dealer bleed hydraulic system. • Check lever free play. • Adjust if necessary. Front brake •...
  • Page 34 • Make sure that operation is smooth. • Check throttle grip free play. Throttle grip 7-18, 7-27 • If necessary, have Yamaha dealer adjust throttle grip free play and lubricate cable and grip housing. • Make sure that operation is smooth. Control cables 7-26 •...

  • Page 35: Operation And Important Riding Points

     understand, ask your Yamaha dealer. The transmission is in the neutral a turnover. In this case, the multi-func- EWA10271 position.

  • Page 36: Shifting

    If not, ask a EAU16671 the neutral position, do not Shifting Yamaha dealer to check the elec- coast for long periods of time trical circuit. with the engine off, and do not 3. Start the engine by pushing the tow the motorcycle for long dis- start switch.

  • Page 37: Engine Break-In

    OPERATION AND IMPORTANT RIDING POINTS quickly pull the clutch lever in. EAU16841 Engine break-in 5. Shift the transmission into second There is never a more important period gear. (Make sure not to shift the EAU16720 Recommended shift points in the life of your engine than the period transmission into the neutral posi- The recommended shift points during between 0 and 1600 km (1000 mi).

  • Page 38: Parking

    If any engine trouble should occur system can become very hot, during the engine break-in period, park in a place where pedestri- immediately have a Yamaha dealer ans or children are not likely to check the vehicle. touch them and be burned.

  • Page 39: Periodic Maintenance And Adjustment

    – possibly leading to pending on the weather, terrain, geo- that is certified (if applicable). Yamaha death. See page 2-2 for more in- graphical location, and individual use, dealers are trained and equipped to...

  • Page 40: Owner's Tool Kit

    If you do not have the tools or experi- ence required for a particular job, have a Yamaha dealer perform it for you.

  • Page 41: Periodic Maintenance Chart For The Emission Control System

    From 19000 mi (31000 km) or 36 months, repeat the maintenance intervals starting from 7000 mi (11000 km) or 12 months.  Items marked with an asterisk require special tools, data and technical skills, have a Yamaha dealer perform the service. EAU17581 Periodic maintenance chart for the emission control system...
  • Page 42 PERIODIC MAINTENANCE AND ADJUSTMENT INITIAL ODOMETER READINGS 600 mi 4000 mi 7000 mi 10000 mi 13000 mi 16000 mi ITEM ROUTINE (1000 km) (6000 km) (11000 km) (16000 km) (21000 km) (26000 km) 1 month 6 months 12 months 18 months 24 months 30 months •...

  • Page 43: General Maintenance And Lubrication Chart

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU32165 General maintenance and lubrication chart INITIAL ODOMETER READINGS 600 mi 4000 mi 7000 mi 10000 mi 13000 mi 16000 mi ITEM ROUTINE (1000 km) (6000 km) (11000 km) (16000 km) (21000 km) (26000 km) 1 month 6 months 12 months 18 months...
  • Page 44 PERIODIC MAINTENANCE AND ADJUSTMENT INITIAL ODOMETER READINGS 600 mi 4000 mi 7000 mi 10000 mi 13000 mi 16000 mi ITEM ROUTINE (1000 km) (6000 km) (11000 km) (16000 km) (21000 km) (26000 km) 1 month 6 months 12 months 18 months 24 months 30 months •...
  • Page 45 Front and rear       24 * • Check operation. brake switches • Apply Yamaha chain and cable       25 * Control cables lube or engine oil thoroughly. • Check operation.
  • Page 46 PERIODIC MAINTENANCE AND ADJUSTMENT EAU17650  Air filter • This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com- pressed air to avoid damaging it. • The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas. ...

  • Page 47: Removing And Installing The Cowling And Panels

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU18722 2. Unhook both projections at the Removing and installing the bottom of the cowling by pulling it cowling and panels downward, and then pull the cowl- The cowling and panels shown need to ing forward as shown. be removed to perform some of the maintenance jobs described in this chapter.
  • Page 48 PERIODIC MAINTENANCE AND ADJUSTMENT by pulling it forward as shown. 1. Panel A 1. Panel A 2. Collar 1. Panel A 3. Screw 1. Panel B 1. Panel B Panel C 1. Screw To install a panel 2. Collar Place the collar and panel in their origi- To remove the panel 3.

  • Page 49: Checking The Spark Plug

    PERIODIC MAINTENANCE AND ADJUSTMENT 2. Install the seat. EAU19604 Checking the spark plug The spark plug is an important engine component, which is easy to check. Since heat and deposits will cause any spark plug to slowly erode, the spark plug should be removed and checked in accordance with the periodic mainte- nance and lubrication chart.

  • Page 50: To Check/Install Spark Plug

    0.6–0.7 mm (0.024–0.028 in) ating improperly. Do not attempt to diagnose such problems yourself. In- To install the spark plug stead, have a Yamaha dealer check 1. Clean the surface of the spark plug the vehicle. gasket and its mating surface, and 2.

  • Page 51: Canister (For California Only)

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU19681 EAU37805 Canister (for California only) Engine oil and oil filter element The engine oil level should be checked before each ride. In addition, the oil must be changed and the oil filter ele- ment replaced at the intervals specified in the General periodic maintenance and lubrication chart.
  • Page 52 PERIODIC MAINTENANCE AND ADJUSTMENT 4. Remove the engine oil filler bolt, element. engine oil drain bolt and its gasket to drain the oil from the crankcase. 1. Oil filter element cover bolt 1. Oil filter element drain bolt 2. Oil filter element cover 7.
  • Page 53 PERIODIC MAINTENANCE AND ADJUSTMENT specified torque. not use oils with a diesel speci- fication of “CD” or oils of a high- Tightening torque: er quality than specified. In Oil filter element drain bolt: addition, do not use oils labeled 10 Nm (1.0 m·kgf, 7.2 ft·lbf) “ENERGY CONSERVING II”...

  • Page 54: Replacing The Air Filter Element And Cleaning The Check Hose

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU44651 3. Pull the air filter element out. To clean the air filter check hose Replacing the air filter element 4. Insert a new air filter element into 1. Check the hose on the side of the and cleaning the check hose the air filter case as shown.

  • Page 55: Cleaning The Spark Arrester

    Check the engine idling speed and, if maintenance and lubrication chart. necessary, have it corrected by a EWA10980 Yamaha dealer. WARNING  Engine idling speed: Always let the exhaust system 1300–1600 r/min cool prior to touching exhaust components.

  • Page 56: Checking The Throttle Grip Free Play

    Therefore, it must be adjusted by a Yamaha dealer is essential to maintain the tires in good at the intervals specified in the periodic condition at all times and replace them maintenance and lubrication chart.
  • Page 57 Yamaha EWA10511 the vehicle may be different, which WARNING dealer replace the tire immediately.

  • Page 58: Spoke Wheels

    When a tire tread for cracks, bends, warpage or oth- begins to show crosswise lines, er damage, and the spokes for have a Yamaha dealer replace looseness or damage before each the tire immediately. ride. If any damage is found, have ...

  • Page 59: Adjusting The Clutch Lever Free Play

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU22034 play, turn the clutch lever free play EAU48442 Adjusting the clutch lever free Adjusting the brake lever free adjusting bolt in direction (a). To play play decrease the clutch lever free play, turn the adjusting bolt in direction (b).

  • Page 60: Brake Light Switches

    The brake light, which is activated by system. If there is air in the hy- the brake pedal and brake lever, should draulic system, have a Yamaha come on just before braking takes ef- dealer bleed the system before fect. If necessary, adjust the rear brake operating the motorcycle.

  • Page 61: Checking The Brake Fluid Level

    PERIODIC MAINTENANCE AND ADJUSTMENT peared, have a Yamaha dealer replace EAU22581 Rear brake Checking the brake fluid level the brake pads as a set. Before riding, check that the brake fluid is above the minimum level mark. EAU36720 Rear brake pads Check the brake fluid level with the top of the reservoir level.

  • Page 62: Changing The Brake Fluid

    EAU22731 EAU22760 Changing the brake fluid Drive chain slack age. Have a Yamaha dealer change the The drive chain slack should be  Refill with the same type of brake fluid at the intervals specified in checked before each ride and adjusted brake fluid.
  • Page 63 4. If the drive chain slack is incorrect, adjust it as follows. EAU22962 To adjust the drive chain slack Consult a Yamaha dealer before ad- justing the drive chain slack. 1. Loosen the axle nut. 2. To tighten the drive chain, turn the 1.

  • Page 64: Cleaning And Lubricating The Drive Chain

    If a cable is damaged wet areas. Service the drive chain as or does not move smoothly, have a follows. Yamaha dealer check or replace it. ECA10583 WARNING! Damage to the outer NOTICE housing of cables may result in in-...

  • Page 65: Checking And Lubricating The Throttle Grip And Cable

    In addi- pedals should be checked before each tion, the cable should be lubricated by a ride, and the pedal pivots should be lu- Yamaha dealer at the intervals speci- bricated if necessary. fied in the periodic maintenance chart. Brake pedal The throttle cable is equipped with a rubber cover.

  • Page 66: Checking And Lubricating The Brake And Clutch Levers

    EWA10731 WARNING If the sidestand does not move up and down smoothly, have a Yamaha dealer check or repair it. Otherwise, the sidestand could contact the ground and distract the operator, re- sulting in a possible loss of control.

  • Page 67: Lubricating The Rear Suspension

    The swingarm pivots must be lubricat- face and hold it in an upright posi- sion must be lubricated by a Yamaha ed by a Yamaha dealer at the intervals tion. WARNING! To avoid injury, dealer at the intervals specified in the...

  • Page 68: Checking The Steering

    Yamaha dealer check or re- of it falling over. [EWA10751] tion chart. If there is play in the wheel pair it.

  • Page 69: Battery

    To charge the battery  Electrolyte is poisonous and necessary. Have a Yamaha dealer charge the bat- dangerous since it contains sul- 3. Fully charge the battery before in- tery as soon as possible if it seems to furic acid, which causes severe...

  • Page 70: Replacing The Fuses

    PERIODIC MAINTENANCE AND ADJUSTMENT stallation. NOTICE: When install- EAU53900 Replacing the fuses ing the battery, be sure the key The main fuse and the fuse boxes, is turned to “OFF”, then con- 1 2 3 which contains the fuses for the individ- nect the positive lead before ual circuits, are located behind panel C.

  • Page 71: Replacing The Headlight Bulb

    4. If the fuse immediately blows 2. Remove the headlight unit by re- of the bulb, and the bulb life will again, have a Yamaha dealer moving the bolts. be adversely affected. Thor- check the electrical system.

  • Page 72: Replacing The Tail/Brake Light Bulb

    1. Remove the tail/brake light lens by inal position, and then install the removing the screws. bolts. 8. Install the cowling. 9. Have a Yamaha dealer adjust the headlight beam if necessary. 1. Headlight coupler 2. Headlight bulb cover 4. Remove the headlight bulb holder by turning it counterclockwise, and 1.

  • Page 73: Replacing A Turn Signal Light Bulb

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU24204 Replacing a turn signal light bulb 1. Remove the turn signal light lens by removing the screw. 1. Tail/brake light bulb 1. Turn signal light bulb 3. Insert a new bulb into the socket, 3. Insert a new bulb into the socket, push it in, and then turn it clock- push it in, and then turn it clock- wise until it stops.

  • Page 74: Supporting The Motorcycle

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU24350 frame in front of the rear wheel or under EAU24360 Supporting the motorcycle Front wheel each side of the swingarm. Since this model is not equipped with a centerstand, follow these precautions EAU51600 To remove the front wheel when removing the front and rear EWA10821 wheel or performing other maintenance...

  • Page 75: Rear Wheel

    PERIODIC MAINTENANCE AND ADJUSTMENT 5. Remove the washer, spacers and EAU25080 Tightening torque: Rear wheel the wheel. NOTICE: Do not apply Axle nut: the brake after the wheel has 85 Nm (8.5 m·kgf, 61 ft·lbf) EAU51621 been removed together with the To remove the rear wheel 7.
  • Page 76 PERIODIC MAINTENANCE AND ADJUSTMENT the right-hand side.  Make sure that the drive chain ad- justing plates are installed with the punched sides facing to the out- side and that the retainer on the swingarm is inserted into the slot in the brake caliper bracket.

  • Page 77: Troubleshooting

    However, should your motorcycle require any repair, take it to a Yamaha dealer, whose skilled technicians have the necessary tools, experience, and know-how to service the motorcycle properly.

  • Page 78: Troubleshooting Chart

    Remove the spark plug and check the electrodes. The engine does not start. Have a Yamaha dealer check the vehicle. Check the battery. 4. Battery The engine turns over The battery is good.

  • Page 79: Motorcycle Care And Storage

    Be ble. Rust and corrosion can develop Cleaning sure to consult a Yamaha dealer for even if high-quality components are ECA10772 advice on what products to use be- NOTICE used.
  • Page 80 MOTORCYCLE CARE AND STORAGE off any detergent residue using Test the product on a small hid- remain well into spring. plenty of water, as it is harmful den part of the windshield to 1. Clean the motorcycle with cold wa- to plastic parts.

  • Page 81: Storage

    EWA11131  Consult a Yamaha dealer for ad- WARNING ECA10810 NOTICE vice on what products to use. Contaminants on the brakes or tires ...
  • Page 82 MOTORCYCLE CARE AND STORAGE stabilizer (if available) to prevent pivoting points of all levers and the fuel tank from rusting and the pedals as well as of the sidestand/ fuel from deteriorating. centerstand. 3. Perform the following steps to pro- 5.

  • Page 83: Specifications

    SPECIFICATIONS Dimensions: EAU50916 Engine oil: Fuel reserve amount: 1.8 L (0.48 US gal, 0.40 Imp.gal) Overall length: Recommended brand: Fuel injection: 2150 mm (84.6 in) YAMALUBE Overall width: Type: Throttle body: 805 mm (31.7 in) SAE 10W-30, 10W-40, 10W-50, 15W-40, ID mark: Overall height: 20W-40 or 20W-50...
  • Page 84 SPECIFICATIONS Gear ratio: Loading: Specified brake fluid: 1st: DOT 4 Maximum load: 2.846 (37/13) Rear brake: 160 kg (353 lb) 2nd: * (Total weight of rider, passenger, cargo Type: 1.812 (29/16) and accessories) Single disc brake 3rd: Tire air pressure (measured on cold Operation: 1.318 (29/22) Right foot operation...
  • Page 85 SPECIFICATIONS Headlight: Bulb type: Halogen bulb Bulb voltage, wattage  quantity: Headlight: 12 V, 60.0 W/55.0 W  1 Tail/brake light: 12 V, 8.0 W/27.0 W  1 Front turn signal/position light: 12 V, 27 W/8.0 W  2 Rear turn signal light: 12 V, 27.0 W ...

  • Page 86: Consumer Information

    Record the key identification number, vehicle identification number and mod- el label information in the spaces pro- vided below for assistance when ordering spare parts from a Yamaha dealer or for reference in case the vehi- cle is stolen. KEY IDENTIFICATION NUMBER: 1.
  • Page 87 This information illustration. This label shows specifica- will be needed when ordering spare tions related to exhaust emissions as parts from a Yamaha dealer. required by federal law, state law and Environment Canada. 10-2...

  • Page 88: Reporting Safety Defects

    If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Yamaha Motor Corporation, U.S.A. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

  • Page 89: Motorcycle Noise Regulation

    CONSUMER INFORMATION EAU26560 Motorcycle noise regulation TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED: Federal law prohibits the following acts or the causing thereof: (1) The removal or rendering inoperative by any person other than for purposes of maintenance, repair, or replacement of any device or element of design incorporated into any new ve- hicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use or (2) the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

  • Page 90: Maintenance Record

    CONSUMER INFORMATION EAU26611 Maintenance record Copies of work orders and/or receipts for parts purchased and installed on your motorcycle will be required to document that maintenance has been completed in accordance with the emissions warranty. The chart below is printed only as a reminder that maintenance work is required.
  • Page 91 CONSUMER INFORMATION Maintenance Date of Servicing dealer Mileage Remarks interval service name and address 28000 mi (46000 km) or 54 months 31000 mi (51000 km) or 60 months 10-6...

  • Page 92: Yamaha Motor

    CONSUMER INFORMATION EAU26663 YAMAHA MOTOR CORPORATION, U.S.A. STREET AND ENDURO MOTORCYCLE LIMITED WARRANTY Yamaha Motor Corporation, U.S.A. hereby warrants that CUSTOMER’S RESPONSIBILITY under this Engine new Yamaha motorcycles will be free from defects in warranty shall be to: Displacement Period...
  • Page 93 CUSTOMER SERVICE What costs are my responsibility during the warranty period? If your machine requires warranty service, you must take it to any authorized Yamaha The customer’s responsibility includes all costs of normal maintenance services, motorcycle dealer within the continental United States. Be sure to bring your warranty non-warranty repairs, accident and collision damages, and oil, oil filters, air filters, registration card or other valid proof of the original date of purchase.

  • Page 94: Yamaha Extended Service (Y.e.s.)

    This excellent Y.E.S. plan coverage is only available to dealer to see how comforting uninterrupted factory- Yamaha owners like you, and only while your Yamaha is still backed protection can be. within the Yamaha Limited Warranty period. So visit your authorized Yamaha dealer to get all the facts.
  • Page 95 Yamaha Limited Warranty expires. A special note: If visiting your dealer isn’t convenient, contact Yamaha with your Primary ID number (your frame number). We’ll be happy to help you get the Y.E.S. coverage you need.
  • Page 96 INDEX Part locations ..........3-1 Air filter element and check hose, Front and rear brake pads, checking..7-22 replacing and cleaning......7-16 Front fork, checking ......... 7-29 Rear suspension, lubricating....7-29 Fuel............4-8 Fuel level warning light ......4-2 Battery............7-31 Safety defects, reporting ......10-3 Fuel tank cap ..........
  • Page 97 INDEX Valve clearance ........7-18 Vehicle Emission Control Information label............10-2 Vehicle identification number....10-1 Warranty, extended .........10-9 Warranty, limited........10-7 Wheel bearings, checking .......7-30 Wheel (front)..........7-36 Wheel (rear)..........7-37 Wheels.............7-20...
  • Page 99 Yamalube – Take care of your Yamaha with legendary Yamalube oils, lubricants, and care products. They’re formulated and approved by the toughest judges we know: the Yamaha engineering teams that know your Yamaha from the inside out.
  • Page 100 PRINTED ON RECYCLED PAPER PRINTED IN JAPAN 2012.04-0.5×1 !
