Access Ports

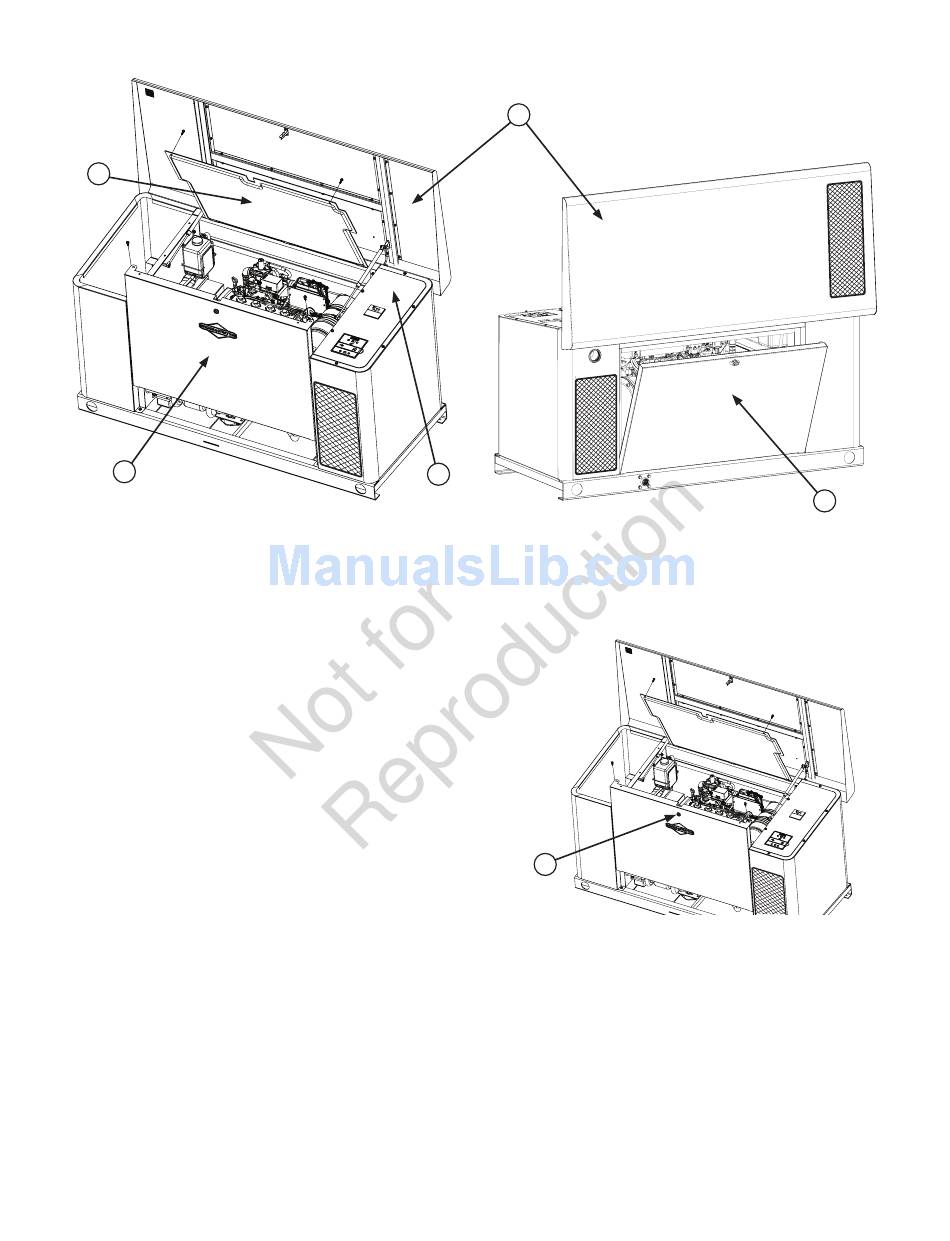

The generator is equipped with an enclosure that has several
access panels, as shown.
The access panels and the components located behind them
are listed below:
A - Roof (control panel, internal guard)
B - Front Access Panel (oil drain and oil filter)
C - Internal Guard (air filter, oil dipstick, coolant bottle)
D - Rear Access Panel (fuel regulator, fuel selector, and
engine starter)
E - Control Panel Cover (field wiring and control wires)
Each generator is shipped with a set of identical keys. These
keys fit in the lock on the front and rear removable panels.
The roof must be unlocked in order for it to open.
18
A
E
To open roof:
1. Insert key into lock (F) of front panel. Gently push
down on roof above the lock to aid in turning the key.
Turn key one quarter turn clockwise.
F
2. Lift roof to the open position.
To close roof:
1. Carefully lower roof down onto the unit.
2. Once lowered, insert key and turn counterclockwise to
secure roof.
3. Remove key from unit.
