Static Routing

If the Router is connected to more than one network, it may be necessary to set
up a static route between them. A static route is a pre-determined pathway that
network information must travel to reach a specific host or network. From the
Static Routing tab, click the Show Routing Table button to view the current
static routing configuration.
To create a static route entry:
1. Select a Static Route Entry from the drop-down list. The Router supports
up to 20 static route entries.
To delete a Static Routing entry, select an entry, and click the Delete this
entry button.
46
Network Everywhere

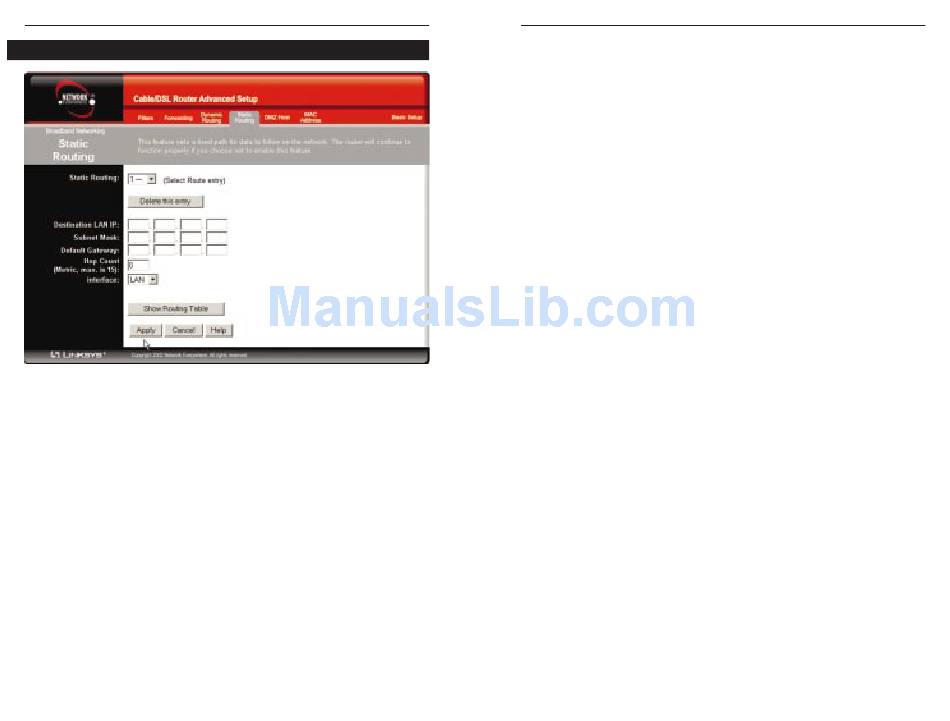

Figure 6-19
Series Cable/DSL 4-Port Router
™
2. Enter the following data to create a new static route.
Destination LAN IP: The Destination LAN IP is the address of the remote
network or host to which you want to assign a static route. Enter the IP
address of the host for which you wish to create a static route here. If you
are building a route to an entire network, be sure that the network portion
of the IP address is set to 0. For example, the Router's standard IP address
is 192.168.1.1. Based on this address, the address of the routed network is
192.168.1.x, with the last digit "x" determining the Router's place on the
network. Therefore you would enter the IP address 192.168.1.0 if you want-
ed to route to the Router's entire network, rather than just to the Router.
Subnet Mask: The Subnet Mask (also known as the Network Mask) deter-
mines which portion of an IP address is the network portion, and which
portion is the host portion. Take, for example, a network in which the
Subnet Mask is 255.255.255.0. This determines (by using the values 255)
that the first three numbers of a network IP address identify this particular
network, while the last digit (from 1 to 254) identifies the specific host.
Default Gateway: This IP address should be the IP address of the gateway
device that allows for contact between the Router and the remote network
or host.
Hop Count: This determines the maximum number of steps between net-
work nodes that data packets will travel. A node is any device on the net-
work, such as PCs, print servers, routers, etc. The maximum metric, or
measure, of hops is 15.
Interface: Select LAN or WAN, depending on the location of the static
route's final destination.
3. When finished, click the Apply button and then the Continue button to
save these changes, or click the Cancel button to undo your changes.
