Napoleon BGD36CFNTR Installation And Operating Instructions Manual
Natural and propane vented gas fireplaces
Hide thumbs
Also See for BGD36CFNTR:
- Installation and operating instructions manual (136 pages) ,
- Installation and operation manual (120 pages) ,
- Installation and operating instructions manual (44 pages)
Table of Contents
Advertisement
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA 2.22, ANSI Z21.50 FOR VENTED GAS FIREPLACES.
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
SAFETY INFORMATION
WARNING
!
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
If the information in these instructions
are not followed exactly, a fi re or
explosion may result causing property
damage, personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the
fi re department.
- Installation and service must be performed by a
qualifi ed installer, service agency or the supplier.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certifi ed kit is used.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleonproducts.com
$10.00
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
BGD36CFNTR,
BGD36CFGN &
NATURAL GAS MODEL
BGD36CFPTR,
BGD36CFGP &
PROPANE GAS MODEL
B G
D 3
WARNING
!
GD36MN
GD36MP
6 C
F N
T R
I L L
U S
T R
A T
E D
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
1.28C
W415-0899 / B / 03.13.12
1
Advertisement
Table of Contents
Related Manuals for Napoleon BGD36CFNTR
Summary of Contents for Napoleon BGD36CFNTR
-
Page 1: Safety Information

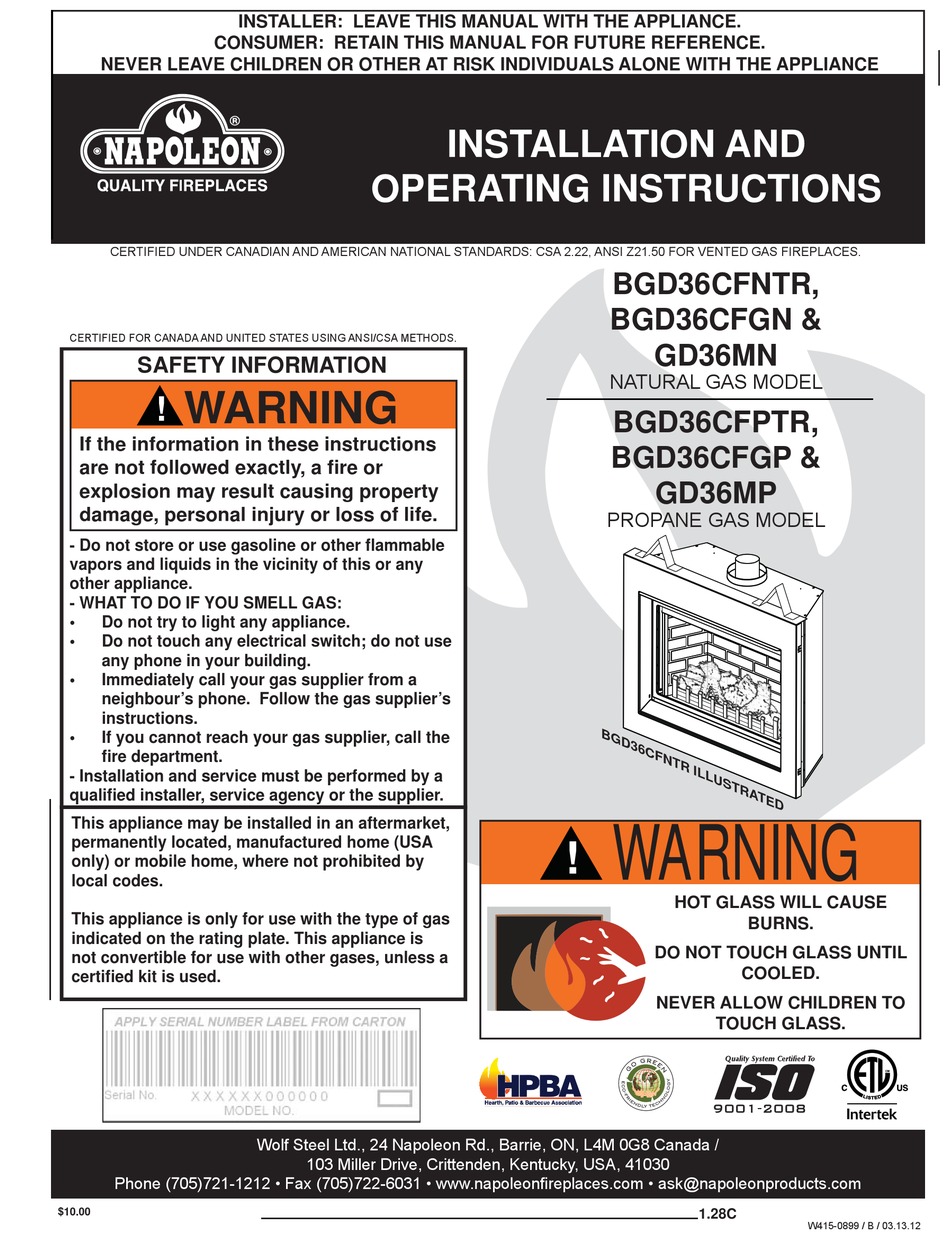

NEVER ALLOW CHILDREN TO TOUCH GLASS. Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleonproducts.com $10.00... -
Page 2: Table Of Contents
TABLE OF CONTENTS INSTALLATION OVERVIEW INTRODUCTION DIMENSIONS 2.1.1 BGD36CF / BGD36CFG 2.1.2 GD36M GENERAL INSTRUCTIONS GENERAL INFORMATION RATING PLATE INFORMATION VENTING VENTING LENGTHS AND COMPONENTS TYPICAL VENT INSTALLATIONS SPECIAL VENT INSTALLATIONS 3.3.1 PERISCOPE TERMINATION 3.3.2 CORNER TERMINATION VENT TERMINAL CLEARANCES VENT APPLICATION FLOW CHART DEFINITIONS ELBOW VENT LENGTH VALUES... -
Page 3: Installation Overview
12.0 OPERATION 12.1 BGD36CF 12.2 BGD36CFG / GD36M 13.0 ADJUSTMENTS 13.1 PILOT BURNER ADJUSTMENT 13.2 VENTURI ADJUSTMENT 13.2.1 BGD36CF VENTURI ADJUSTMENT 13.2.2 BGD36CFG / GD36M VENTURI ADJUSTMENT 13.3 BGD36CF FLAME CHARACTERISTICS 13.4 BGD36CFG / GD36M FLAME CHARACTERISTICS 14.0 MAINTENANCE 14.1 BULB REPLACEMENT BGD36CFG / GD36M 14.2 LENS ASSEMBLY REPLACEMENT BGD36CFG / GD36M... -
Page 4: Introduction
2.0 INTRODUCTION WARNING • THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. • ANY CHANGES TO THIS APPLIANCE OR IT’S CONTROLS CAN BE DANGEROUS AND IS PROHIBITED. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi... -
Page 5: Dimensions
DIMENSIONS 2.1.1 BGD36CF / BGD36CFG 5” ” 27” 38 ½” 38 ½” 4" DIA. 33” 34” 7" DIA. 17” 24 ¼” 15” 8” ” 40” 3” ELECTRICAL INLET INLET ” 2.1.2 GD36M LEFT SIDE 5” 38 ½” 27” 33” 4" DIA. 34”... - Page 6 THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local codes. Installation practices vary from region to region and it is important to know the specifi cs that apply to your area, for example in Massachusetts State: •...
-
Page 7: General Information
NECESSARY AFTER SERVICING THE VENT-AIR INTAKE SYSTEM. SIDES / COTES VENT TOP / EVENT SUPERIEUR ERIEUR 2" 2" 2" L'APPAREIL DOIT EVACUER SES GAZ EN UTILISANT L'ENSEMBLE D'EVACUATION PROPRE A NAPOLEON. BACK / ARRIERE VENT BOTTOM / EVENT INFERIEUR T INFERIEUR R 1" 1" 1"... -
Page 8: Venting
3.0 VENTING WARNING RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE. IF VENTING IS INCLUDED WITH SPACERS THE VENT SYSTEM MUST BE SUPPORTED EVERY 3 FEET FOR BOTH VERTICAL AND HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM COMBUSTIBLES. -
Page 9: Typical Vent Installations
The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year to verify that it is unobstructed and undamaged. Rigid and fl exible venting systems must not be combined. Different venting manufacturer components must not be combined. - Page 10 16" MINIMUM 40 FT MAXIMUM 3 FT MINIMUM 24" MAXIMUM 10" MINIMUM 42 3/8" MINIMUM PLUS RISE* 34" 34" TOP VENT * See "VENTING" section. W415-0899 / B / 03.13.12...
-
Page 11: Special Vent Installations
SPECIAL VENT INSTALLATIONS 3.3.1 PERISCOPE TERMINATION Use the periscope kit to locate the air termination above grade. The periscope must be installed so that when fi nal grading is completed, the bottom air slot is located a minimum 12” above grade. The maximum allowable vent length is 10’... -
Page 12: Vent Terminal Clearances
VENT TERMINAL CLEARANCES COVERED BALCONY APPLICATIONS ††* = 3 feet = 2 x ACTUAL INSTALLATIONS feet CANADA U.S.A. 12” 12” Clearance above grade, veranda porch, deck or balcony. 12” 9” Clearance to windows or doors that open. Δ Δ 12” * 12”... -
Page 13: Vent Application Flow Chart
VENT APPLICATION FLOW CHART TOP EXIT Horizontal Termination Vertical Termination Vertical rise is equal Vertical rise is equal Vertical rise is less Vertical rise is less to or greater than to or greater than than horizontal run than horizontal run the horizontal run the horizontal run Horizontal run +... -
Page 14: Elbow Vent Length Values
ELBOW VENT LENGTH VALUES FEET INCHES 1° 0.03 15° 0.45 30° 11.0 45° 1.35 16.0 90°* 32.0 * The fi rst 90° offset has a zero value and is shown in the formula as - 90° 15.1 TOP EXIT HORIZONTAL TERMINATION ) <... - Page 15 ) > (V Simple venting configuration See graph to determine the required vertical rise V for the required horizontal run H (only one 90° elbow) 147” REQUIRED VERTICAL RISE IN INCHES V 57” 10” 2’ 12.5’ 19.5’ HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and V For vent configurations requiring more than one 90°...
-
Page 16: Rear Exit Horizontal Termination
REAR EXIT HORIZONTAL TERMINATION ) < (V Simple venting configuration See graph to determine the required vertical rise V for the required (only two 90° elbows) horizontal run H 38.3 REQUIRED VERTICAL RISE IN FEET V 12.5 17.5 HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and H For vent configurations requiring more than two 90°... - Page 17 ) > (V Simple venting configuration See graph to determine the required vertical rise V for the (only two 90° elbows) required horizontal run H REQUIRED VERTICAL RISE IN INCHES V 12.5 17.5 19.25 HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and H...
-
Page 18: Top Or Rear Exit Vertical Termination
3.10 TOP OR REAR EXIT VERTICAL TERMINATION ) < (V See graph to determine the required vertical rise V for the Simple venting configurations. required horizontal run H REQUIRED VERTICAL RISE IN FEET V HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and H... - Page 19 ) > (V See graph to determine the required vertical rise V for the Simple venting configurations. required horizontal run H REQUIRED VERTICAL RISE IN FEET V HORIZONTAL VENT RUN PLUS OFFSET IN FEET H The shaded area within the lines represents acceptable values for H and H For vent configurations requiring more than two 90°...
-
Page 20: Pre-Installation Preparation
Example: = 1.5 FT = 5 FT = 1.5 + 1 + 5 = 6.5 FT = 1 FT = 1 FT = 10.75 FT = 1 + 1 + 10.75 = 12.75 FT = .03 (four 90° elbows + one 45° elbow - 90°) 90°... -
Page 21: Door Operation
DOOR OPERATION To access the lower door latch, open the Valve Access Door as illustrated. Release the top and bottom door latches, located at the right side of the door. REAR EXIT WARNING FAILURE TO INSTALL THE CAP WILL CAUSE THE APPLIANCE TO FUNCTION IMPROPERLY AND CAN CAUSE INJURY OR PROPERTY DAMAGE. -
Page 22: Installation
5.0 INSTALLATION WARNING FOR SAFE AND PROPER OPERATION OF THE APPLIANCE, FOLLOW THE VENTING INSTRUCTIONS EXACTLY. ALL INNER EXHAUST AND OUTER INTAKE VENT PIPE JOINTS MAY BE SEALED USING EITHER RED RTV HIGH TEMP SILICONE SEALANT W573-0002 (NOT SUPPLIED) OR BLACK HIGH TEMP MILL PAC W573-0007 (NOT SUPPLIED) WITH THE EXCEPTION OF THE APPLIANCE EXHAUST FLUE COLLAR WHICH MUST BE SEALED USING MILL PAC. -
Page 23: Horizontal Installation
HORIZONTAL INSTALLATION WARNING THE FIRESTOP ASSEMBLY MUST BE INSTALLED WITH THE VENT SHIELD TO THE TOP. TERMINALS MUST NOT BE RECESSED INTO A WALL OR SIDING MORE THAN THE DEPTH OF THE RETURN FLANGE OF THE MOUNTING PLATE. This application occurs when venting through an exterior wall. Having determined the correct height for the air terminal VENT location, cut and frame a hole in the exterior wall as... -
Page 24: Using Flexible Vent Components
USING FLEXIBLE VENT COMPONENTS WARNING DO NOT ALLOW THE INNER FLEX PIPE TO BUNCH UP ON HORIZONTAL OR VERTICAL RUNS AND ELBOWS. KEEP IT PULLED TIGHT. SPACERS ARE ATTACHED TO THE INNER FLEX PIPE AT PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER FLEX PIPE. -
Page 25: Vertical Air Terminal Installation
5.4.2 VERTICAL AIR TERMINAL INSTALLATION WARNING MAINTAIN A MINIMUM 2” SPACE BETWEEN THE AIR INLET BASE AND THE STORM COLLAR. Fasten the roof support to the roof using the screws provided. The roof support is optional. In this case the venting is to be adequately supported using either an alternate method suitable to the authority having jurisdiction or the optional roof support. -
Page 26: Appliance Vent Connection
5.4.3 APPLIANCE VENT CONNECTION Install the inner fl ex pipe to the appliance. Secure with 3 screws #8 X 1/2” and fl at washers. Seal the joint and screw holes using the high temperature sealant W573-0007 (not supplied). SELF DRILLING Install the outer fl... -
Page 27: Vertical Through Existing Chimney
VERTICAL THROUGH EXISTING CHIMNEY WARNING RISK OF FIRE! CO-AXIAL TO CO-LINEAR VENTING CONFIGURATIONS MUST ONLY BE USED IN A NON- COMBUSTIBLE CHIMNEY OR ENCLOSURE. INSTALLATION IN A COMBUSTIBLE ENCLOSURE COULD RESULT IN A FIRE. This appliance is designed to be attached to a 3” co-linear aluminum fl ex vent system running the full length of a masonry chimney. -
Page 28: Vertical Air Terminal Installation
5.6.1 VERTICAL AIR TERMINAL INSTALLATION NOTE: Before attaching elbows to the collars on the back of the appliance, 1 1/2” will need to be trimmed off the 4” collar. REAR VENT APPLICATION: Attach 4” and 7” elbows to the appliance. Secure with 3 screws and seal the joints and screw heads using high temperature sealant. -
Page 29: Mobile Home Installation
MOBILE HOME INSTALLATION This appliance is certifi ed to be installed as an OEM (Original Equipment Manufacturer) installation in a manufactured home or mobile home and must be installed in accordance with the manufacturer’s instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home Standard, CAN/CSA Z240 MH Series, in Canada. -
Page 30: Optional Wall Switch Excluding Bgd36Cfg & Gd36M
Installation and servicing to be done by a qualifi ed installer. Move the appliance into position and secure. If equipped with a fl ex connector the appliance is designed to accept a 1/2” gas supply. Without the connector it is designed to accept a 3/8” gas supply. The appliance is equipped with a manual shut off valve to turn off the gas supply to the appliance. -
Page 31: Framing
6.0 FRAMING WARNING RISK OF FIRE! IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE APPLIANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH ANY OTHER OUTSIDE WALL OF A HOME. -
Page 32: Installing Stand-Offs
Minimum clearance to combustible construction from appliance and vent surfaces: Non-combustible Framing: - 0" to stand-offs if using optional clean face surround. Combustible Framing: Sides, back and bottom of appliance - 0" to rear. - 3 1/2" to stand-offs if using optional clean face surround. Combustible Finishing: Sides, bottom and top - 0"... -
Page 33: Minimum Framing Dimensions
MINIMUM FRAMING DIMENSIONS WARNING FOR TOP EXIT APPLICATIONS: DO NOT BUILD INTO THIS AREA. IT MUST BE LEFT CLEAR TO PROVIDE ADEQUATE CLEARANCE FOR THE VENT. IN THIS 14" WIDE AREA CENTRED ALONG THE FRONT OF THE APPLIANCE, NO COMBUSTIBLES ARE ALLOWED. 49”... -
Page 34: Steel Header Installation For Clean Face Surround And Stylo Glass Facia
" INSIDE CHASE " " 6" OUTSIDE " CHASE " 12” TO COMBUSTIBLE MANTLE IMPORTANT: Encroaching in this area with fi nishing material will interfere with the opening of the door. THIS AREA MUST REMAIN EXPOSED TO ALLOW FOR PROPER DOOR OPERATION. -
Page 35: Minimum Enclosure Clearances
MINIMUM ENCLOSURE CLEARANCES 6.3.1 REAR VENT ENCLOSURE NON-COMBUSTIBLE COMBUSTIBLE TOP OF COMBUSTIBLE ENCLOSURE SHELF 0” IF NON- COMBUSTIBLE FINISHING IS USED SUCH AS 4 1/2” BRICK AND 2” STONE 38 1/2” 1” 24 1/2” MINIMUM 34” PLUS RISE** 2” The appliance requires a minimum enclosure height of 38 1/2“ (REAR VENT) 49" (TOP VENT). For tempera- ture requirements, the enclosure space around and above the appliance must be left unobstructed. -
Page 36: Top Vent Enclosure
6.3.2 TOP VENT ENCLOSURE SHELF 2” 0” IF NON-COMBUS COMBUSTIBLE FINISHING IS USED MATERIAL 2” AS BRICK AND STO 1 1/2” 15” 1” *6 1/2” MIN 49” NON- COMBUSTIBLE MATERIAL STEEL 43” HEADER MINIMUM REQUIRED PLUS RISE** IF USING * If this appliance is installed OPTIONAL fl... -
Page 37: Enclosure Installation With Clean Face Surround Or Stylo Glass Facia (Gd36M)
6.3.4 ENCLOSURE INSTALLATION WITH CLEAN FACE SURROUND OR STYLO GLASS FACIA (GD36M) CEMENT BOARD PANEL (SUPPLIED) STEEL HEADER (SUPPLIED) *6 1/2” 34” STYLO GLASS FACIA STEEL HEADER COMBUSTIBLE NON-COMBUSTIBLE *6 1/2” 0” IF NON-COMBUSTIBLE FINISHING IS USED SUCH AS BRICK AND STONE 2”... -
Page 38: Clean Face Surround Framing And Finishing Excluding Gd36M
CLEAN FACE SURROUND FRAMING AND FINISHING EXCLUDING GD36M CONCAVE WAVE CONVEX S36CCN (BROWN) S36WN (BROWN) S36CVN (BROWN) S36CCP (PEWTER) S36WP (PEWTER) S36CVP (PEWTER) Installation requires a minimum of 6 1/2" non-combustible facing material at the top of the appliance. Refer to illustrations above (depending on your installation) to ensure your appliance has been installed with the proper requirements for this kit. -
Page 39: Hearth Installation
6.4.2 HEARTH INSTALLATION When installing to a hearth the appliance riser must create a minimum clearance of 3 3/8" PLUS the height of the hearth from the fi nished fl oor to the bottom of the appliance. COMBUSTIBLE STEEL STEEL MATERIAL HEADER HEADER... -
Page 40: Minimum Mantel Clearances
ALCOVE FRAMING RECESS OR ALCOVE AREA ENCLOSURE AREA APPLIANCE NOTE: Recesses or alcoves above the appliance can be made as deep as desired provided the minimum clearances to combustibles are maintained. Non-combustible material can be used, provided the minimum clearances to combustible materials are applied. -
Page 41: Finishing
7.0 FINISHING DOOR INSTALLATION & REMOVAL WARNING GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED. THE DOOR LATCHES ARE PART OF A SAFETY SYSTEM AND MUST BE PROPERLY ENGAGED. DO NOT OPERATE THE APPLIANCE WITH LATCHES DISENGAGED. FACING AND/OR FINISHING MATERIALS MUST NOT INTERFERE WITH AIR FLOW THROUGH AIR OPENINGS, LOUVRES OPENINGS, OPERATION OF LOUVRES OR DOORS OR ACCESS FOR SERVICE. -
Page 42: Clean Face Trim Kit Installation Excluding Gd36M
CLEAN FACE TRIM KIT INSTALLATION EXCLUDING GD36M The “wave” clean face surround kit is shown in all illustrations. From the rear side of the clean face front, insert the weld studs on the top window plate assembly upward through the holes on the underside of the top section of the clean face front. Using a socket wrench, secure using the nuts and washers provided. -
Page 43: Bgd36Cf Finishing
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE. 76.1A logs and glowing embers exclusive to Napoleon® Appliances, provide a unique and realistic PHAZER glowing effect that is different in every installation. Take the time to carefully position the glowing embers for a maximum glowing effect. -
Page 44: Glowing Embers
fl ame. Use only certifi ed "glowing embers" and PHAZER logs available from your Napoleon® dealer. CHARCOAL EMBERS Randomly place the charcoal embers along the front and sides of the log support tray in a realistic manner. -
Page 45: Bgd36Cfg / Gd36M Finishing
9.0 BGD36CFG / GD36M FINISHING GLASS BURNER INSTALLATION WARNING CLEAN THE GLASS MEDIA PRIOR TO INSTALLATION. BEFORE APPLYING THE CLEANED GLASS, ENSURE THAT IT IS DRY. DO NOT CHANGE OR SUBSTITUTE THE GLASS MEDIA MATERIAL PROVIDED WITH THIS APPLIANCE. IF REPLACING, USE ONLY THE REPLACEMENT GLASS MEDIA AVAILABLE FROM YOUR AUTHORIZED DEALER / DISTRIBUTOR. -
Page 46: Gd36M Glass Front Installation / Removal
GD36M GLASS FRONT INSTALLATION / REMOVAL BRACKET FLAT PLASTIC WASHER PLASTIC SHOULDER WASHER THREADED NOTE: Ensure threaded rod is completely threaded into the cap. Place plastic shoulder washer GLASS over threaded rod. FACIA Run the rod through the hole in the glass facia (silk screen side toward appliance). -
Page 47: Optional Blower Installation
10.0 OPTIONAL BLOWER INSTALLATION WARNING RISK OF FIRE AND ELECTRICAL SHOCK. TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THIS APPLIANCE. USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE. USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION. -
Page 48: Wiring Diagram
11.0 WIRING DIAGRAM WARNING DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. CALL A QUALIFIED SERVICE TECHNICIAN IMMEDIATELY TO HAVE THE APPLIANCE INSPECTED FOR DAMAGE TO THE ELECTRICAL CIRCUIT. RISK OF ELECTRICAL SHOCK OR EXPLOSION. DO NOT WIRE 110V TO THE VALVE OR TO THE APPLIANCE WALL SWITCH. -
Page 49: Bgd36Cfg / Gd36M Burner Switch
11.2 BGD36CFG / GD36M BURNER SWITCH A wall switch or remote control must be installed in a convenient location to operate the main burner. A 20’ length of 18 gauge wire is connected to the gas valve wire harness for this wall switch, however, if a greater length is required route 2-strand (solid core) wire complete with two 1/4”... -
Page 50: Receptacle Wiring Diagram
11.3 RECEPTACLE WIRING DIAGRAM W415-0899 / B / 03.13.12... -
Page 51: Operation
12.0 OPERATION 12.1 BGD36CF WARNING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH THE GLASS DOOR OPENED OR REMOVED. -
Page 52: Bgd36Cfg / Gd36M
12.2 BGD36CFG / GD36M WARNING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH THE GLASS DOOR OPENED OR REMOVED. -
Page 53: Adjustments
13.0 ADJUSTMENTS 13.1 PILOT BURNER ADJUSTMENT Adjust the pilot screw to provide properly sized fl ame. Turn in a clockwise PILOT direction to reduce the gas fl ow. BURNER THERMOPILE Inlet pressure can be checked by turning screw (A) THERMOCOUPLE counter-clockwise until loosened and then placing pressure gauge tubing over the test point. -
Page 54: Bgd36Cfg / Gd36M Venturi Adjustment
13.2.2 BGD36CFG / GD36M VENTURI ADJUSTMENT WARNING CARBON CAN BE DISTRIBUTED IN SURROUNDING LIVING AREA IF THE AIR SHUTTER IS IMPROP- ERLY ADJUSTED. THE FRONT OF THE APPLIANCE BECOMES VERY HOT DURING OPERATION. LET THE APPLIANCE COOL COMPLETELY BEFORE CONDUCTING SERVICE. This appliance has an air shutter that has been factory set open according to the chart below: Closing the air shutter will cause a more yellow fl... -
Page 55: Bgd36Cfg / Gd36M Flame Characteristics
13.4 BGD36CFG / GD36M FLAME CHARACTERISTICS It’s important to periodically perform a visual check of the pilot and burner fl ames. Com- pare them to the illustrations provided. If any fl ames appear abnormal call a service person. FLAME MUST ENVELOP UPPER 3/8"... -
Page 56: Bulb Replacement Bgd36Cfg / Gd36M
14.1 BULB REPLACEMENT BGD36CFG / GD36M This appliance comes equipped with our “Night Light™”. If in the event the lamp or lens needs to be replaced, follow these instruc- tions. Turn off all electrical supply. Gasket Remove the glass and glass ember tray from the fi rebox. Unscrew the lens cover making sure the gasket stays in place. -
Page 57: Door Glass Replacement
14.3 DOOR GLASS REPLACEMENT WARNING DO NOT USE SUBSTITUTE MATERIALS. GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED. CARE MUST BE TAKEN WHEN REMOVING AND DISPOSING OF ANY BROKEN DOOR GLASS OR DAMAGED COMPONENTS. BE SURE TO VACUUM UP ANY BROKEN GLASS FROM INSIDE THE APPLIANCE BEFORE OPERATION. -
Page 58: Replacements
* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR FURTHER INFORMATION, CONTACT YOUR AUTHORIZED DEALER. 41.2 COMPONENTS REF NO. BGD36CF BGD36CFG GD36M DESCRIPTION W385-0334 W385-0334 W385-0334 NAPOLEON® LOGO W750-0112 W750-0193 W750-0193 20FT OF WIRE (BURNER SWTICH) W750-0194 W750-0194 20FT OF WIRE (LIGHT SWTICH) W361-0016 GLOWING EMBERS W550-0001 CHARCOAL EMBERS... - Page 59 COMPONENTS REF NO. BGD36CF BGD36CFG GD36M DESCRIPTION W300-0102 W300-0135 GLASS EMBERS W010-1835 W010-1835 GLASS EMBER TRAY W387-0011 W387-0012 HIGH TEMPERATURE LIGHT ASSEMBLY W387-0009 (5W) W387-0013 (10W) HALOGEN BULB W010-2370 FLUSH GLASS FRONT ASSEMBLY W300-0130 STYLO GLASS FACIA W190-0015 W190-0015 CONTROLE MODULE W190-0021 W190-0021 CONTROL RELAY...
- Page 60 ACCESSORIES REF NO. BGD36CF BGD36CFG GD36M DESCRIPTION W175-0001 W175-0001 W175-0001 4" COUPLER W175-0013 W175-0013 W175-0013 7" COUPLER W500-0103 W500-0103 W500-0103 TERMINAL EXTENSION PLATE GD-301 GD-301 GD-301 HEAT GUARD W010-0370 W010-0370 W010-0370 WALL SUPPORT ASSEMBLY W175-0053 W175-0053 W175-0053 DURA-VENT ZERO CLEARANCE ADAPTOR VS47KT VS47KT VS47KT...
- Page 61 W415-0899 / B / 03.13.12...
-
Page 62: Troubleshooting
16.0 TROUBLESHOOTING 16.1 BGD36CF WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT, WITH THE GLASS DOOR OPEN OR REMOVED. TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED. - Page 63 SYMPTOM PROBLEM TEST SOLUTION Pilot will not light. No spark at pilot burner. Check if pilot can be lit by a match. Check that the wire is connected to the push button igniter. Check if the push button igniter needs tightening. Replace the wire if the wire insulation is broken or frayed.
-
Page 64: Bgd36Cfg / Gd36M
16.2 BGD36CFG / GD36M WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT, WITH THE GLASS DOOR OPEN OR REMOVED. TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED. - Page 65 SYMPTOM PROBLEM TEST SOLUTION Carbon is being Air shutter has become Ensure air shutter opening is free of lint or other deposited on blocked. obstructions. glass, logs, Flame is impinging on the Check that the glass, logs, rocks or media are rocks, media glass, logs, rocks, media correctly positioned.
-
Page 66: Warranty
All parts replaced under the President’s Limited Lifetime Warranty Policy are subject to a single claim. During the fi rst 10 years NAPOLEON® will replace or repair the defective parts covered by the lifetime warranty at our discretion free of charge. From 10 years to life, NAPOLEON®... -
Page 67: Service History
18.0 SERVICE HISTORY 43.1 W415-0899 / B / 03.13.12... - Page 68 19.0 NOTES 44.1 W415-0899 / B / 03.13.12...
