Pro-Form PFEL85907.0 User Manual page 10

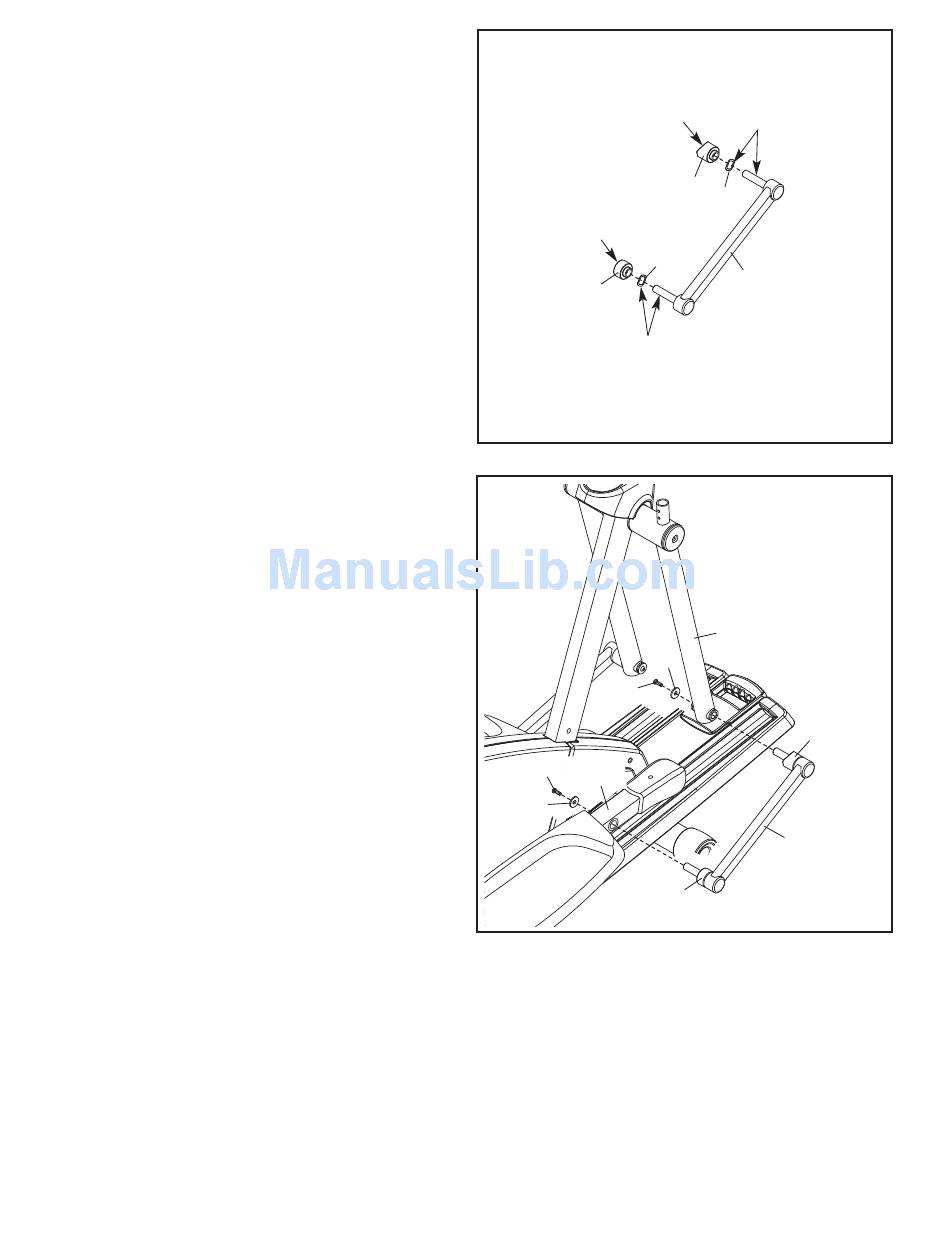

9. Apply a small amount of grease to two Wave
Washers (88) and to the axles on a Pedal Arm
Axle (21).
Identify an Upper Body Leg Spacer (113), which
has a curved side. Slide a Wave Washer (88)
and the Upper Body Leg Spacer onto the indi-
cated axle of the Pedal Arm Axle (21); make
sure that the curved side of the Upper Body
Leg Spacer is facing away from the Pedal
Arm Axle.
Identify a Pedal Leg Spacer (114), which has a
flat side. Slide a Wave Washer (88) and the
Pedal Leg Spacer onto the other axle of the
Pedal Arm Axle (21); make sure that the flat
side of the Pedal Leg Spacer is facing away
from the Pedal Arm Axle.
Repeat this step for the other Pedal Arm
Axle (not shown).
10. Insert a Pedal Arm Axle (21) into the Right
Upper Body Leg (94) and into the right Pedal
Arm (14) at the same time; make sure that the
Upper Body Leg Spacer (113) and the Pedal
Leg Spacer (114) are in the indicated loca-
tions.
Attach the Right Upper Body Leg (94) with an
M6 x 16mm Button Screw (80) and an M6
Washer (118).
Then, attach the right Pedal Arm (14) with an
M6 x 16mm Button Screw (80) and an M6
Washer (118).
Repeat this step for the other side of the
elliptical exerciser.
See step 3. Tighten the four M10 x 20mm
Button Screws (79). Tip: Tighten the two
Button Screws on the front of the elliptical
exerciser before tightening the other two
Button Screws.
9
Curved Side
Flat Side
114
Grease
10
80
80
14
118
10
Grease
113
88
88
21
94
118
113
21
114
