Draytek Vigor2760 Series Quick Start Manual page 31

3 . 3 . 1 G e n e r a l S e
3 . 3 . 1 G e n e r a l S e

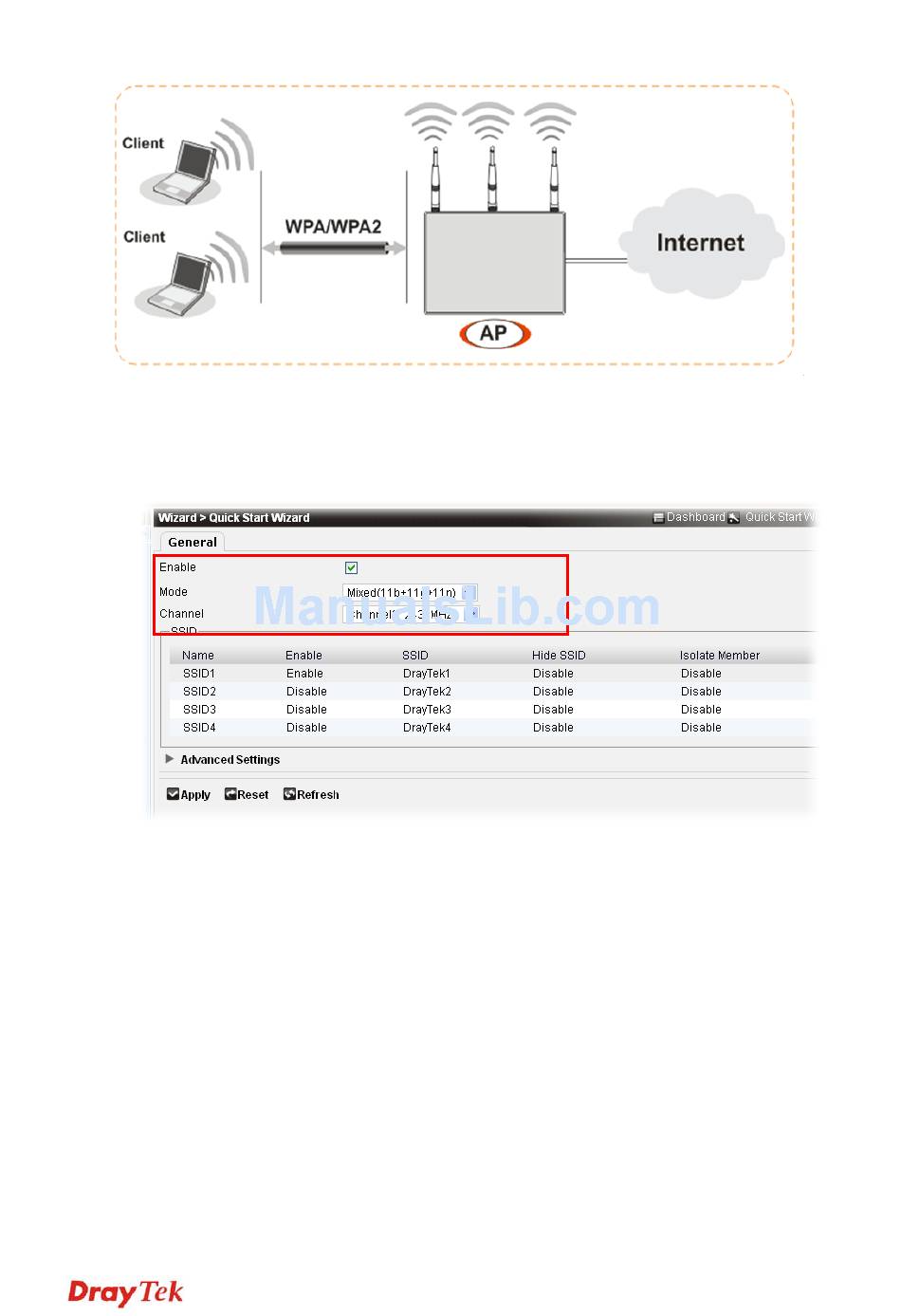

1. On the Wireless LAN group, select General Setup. The following page
will be shown as below.
2. Check Enable to enable the wireless function.
3. At present, the router can connect to 11g Only, 11n Only, Mixed
(11b+11g), and Mixed (11b+11g+11n) stations simultaneously. Simply
choose Mix (11b+11g+11n) mode.
4. The default channel is 6. You can change it to an appropriate one if the
selected channel is under serious interference.
5. The default names for SSID1 – SSID4 are DrayTek1 – DrayTek4. We
suggest you change it to a particular name for your necessity. Simply
click any SSID item under the SSID field. A pop up dialog will appear
for you to modify the settings.
6. Click Apply to save the changes.
t u p
t u p
23
Vigor2760 Series Quick Start Guide
