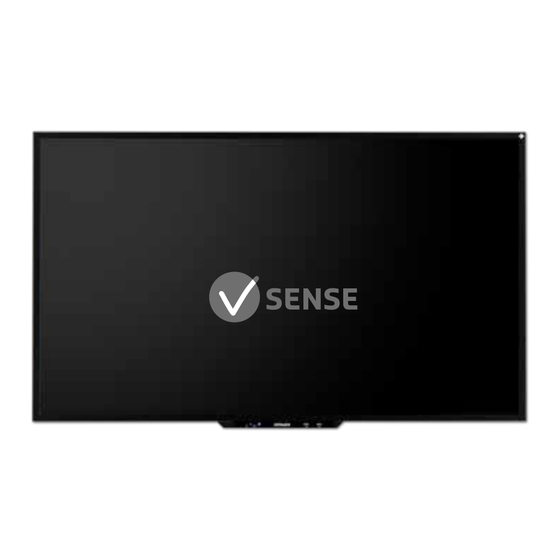

i3TOUCH V-SENSE V8403 T10 User Manual

I3touch v-sense
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
i3TOUCH V-SENSE
V8403 T10 USER MANUAL
SENSE
SENSE
SENSE
1
i3TOUCH
V- SENSE 8403T10 - operations manual

Advertisement

Table of Contents
loading

Related Manuals for i3TOUCH V-SENSE V8403 T10

Summary of Contents for i3TOUCH V-SENSE V8403 T10

  • Page 1 V-SENSE V8403 T10 USER MANUAL SENSE SENSE SENSE i3TOUCH V- SENSE 8403T10 - operations manual...

  • Page 2: Table Of Contents

    6. Product specification …..………………………………………………………..............25 6.1 Specification 6.2 OPS Specifications(Optional) 7. Product dimensions ……………………………………………………………................29 7.1 LED Dimensions 8. Troubleshooting ………………………………………………………………................30 8.1 Product self-Diagnosis 8.2 Before Requesting service 9. Customer support and AS guide………………………………………………..............31 9.1 Before Request AS 9.2 AS COST www.i3-learning.com...

  • Page 3: Importantsafety Instructions

    1. Important Safety Instructions Icons used for safety precautions ICON NAMEN MEANING Failing to follow the precautions marked with this sign Warning may result in a serious injury or even a fatality. Failing to follow the precautions marked with this sign may Caution result in a personal injury or property damage.
  • Page 4 1.1.2.9 Avoid installing the product where children may reach it. » If a child touches the product, the product may fall and this may result in injury. » Since the front part is heavier, install the product on a flat and stable surface. www.i3-learning.com...
  • Page 5 1.1.2.10 Bend the outdoor antenna cable downwards at the location where it comes in the house so that rainwater does not flow in » If rainwater enters the product, it may result in electric shock or fire. 1.1.2.11 Install the antenna far away from any high voltage cables. »...
  • Page 6 1.1.4.10 When a gas leak occurs, do not touch the product or the power plug and ventilate immediately. » A spark may result inan explosion or fire. » During a thunder or lighting storm, do not touch the power cord or antenna cable. www.i3-learning.com...
  • Page 7 1.1.4.11 Avoid lifting up or moving the product by holding only the power cord or signal cable. » Otherwise, it may result in electric shock, fire or a problem with the product due to damage to the cable. 1.1.4.12 Avoid using or placing inflammable spray or objects into the product(the vents, ports, etc) »...
  • Page 8 • Table stand and put them on the table by using the installation gets the nose does not necessarily prevent a fall on the floor using the screws fixed. Attention: In order to reduce the risk of electric shock. Do not open the cover or backcover. If you have a product or service, please request our customer support center. www.i3-learning.com...

  • Page 9: Introduction

    2. Introduction 2.1 Package Contents - Unpack the product and check if all of the following contents have been included. - Store the packaging box in case you need to move the product later. - If any items are missing, contact your dealer. - Contact a local dealer to purchase optional items.

  • Page 10: Each Description

    Shows Power ON mode -- BLUE Power Saver mode by blinking RED. Shows Power OFF mode -- RED. 3. SOURCE( ) : Selection Input Signal button 4. IR Receive Remote Control 5. Ambient light sensor (Optional) 6. USB 1 Terminal 7. USB 2 Terminal www.i3-learning.com...

  • Page 11: Rear View

    3.2 Rear View HDMI 3 HDMI 2 HDMI 1 MEDIA RF IN (OPS) (USB) HDMI(High Definition Multimedia INTERFACE) is the first all digital consumer electronics A/V interface that supports uncompressed standard. One jack supports both video and audio information. Media USB: USB Port for Factory Use Only. RF IN: Coaxial(Round) Antenna Cable AUDIO SPDIF <...
  • Page 12 2. HDMI cable will be connected to (display and voice are available at the same time) 7, 8, 9. 3. External speaker will be connected to 1 , 2 input with using Ø3.5 stereo cable and then connect same as below drawing. L, R connection is same. Internal speaker will not output. Note) Don’t connect NC. www.i3-learning.com...

  • Page 13: Remote Control

    4. Remote Control POWER: ON and OFF SOURCE: AV, COMPONENT, HDMI 1, HDMI 2, HDMI 3, PC: PC COMP.: COMPONET HDMI: HDMI 1, HDMI 2, HDMI 3 AV: AV, S-VIDEO, SCRT PSM(Picture mode): Standard, Dynamic, Soft, User SSM(Sound mode): Standard, Flat, Music, Movie MENU: Display the main on-Screen menu INFO(Current Information): Display Information about the current channel.

  • Page 14: Osd Menu Description

    2. Main menu will be side-to-side setup from left to right : Picture / Audio/ Time/ Setup/ Lock/ Channel 3. Submenu will be end-to-end arranged from the top town. 4. Prompt menu will be side-to-side setup from left to right www.i3-learning.com...
  • Page 15 5.2 Function introduction of submenu 5.2.1 Picture submenu 5.2.1.1 Appearance 5.2.1.2 Function Introduction Item Variable range Default Explanation Picture Mode Standard / Dynamic / Standard Soft / User Contrast 0----100 You will need to watch the picture, when you adjust it, so, we close the main menu, pop up Contrast small menu Bright 0----100...
  • Page 16 Standard: Bass = 50, Treble = 50, Balance = 50 Music: Bass = 80, Treble = 60, Balance = 50 Movie: Bass = 60, Treble = 55, Balance = 50 User: Bass = 50, Treble = 50, Balance = 50 www.i3-learning.com...
  • Page 17 5.4 Time submenu 5.4.1 Appearance 5.4.2 Function Introduction Item Variable range Default Explanation Sleep Timer Off/5Min/10Min/15Min/30Min/45Min/ 60Min/90Min/120Min/180Min/240Min Time Zone Pacific/Alaska/Hawaii/Eastern/Central/ Pacific Default value can be modified according Mountain to client’s requirements. Daylight Off/On Only adjustable under DTV channel. Saving Time Clock Get date and time from the code stream of DTV, user can’t modify it manually, set...
  • Page 18 On/Off Dynamic brightness control Restore Default For this operation, first confirm which options need to be restoring according to client’s requirements. We need to have one default standard. Menu pattern please refer to 5.6 5.6 Secondary submenu 5.6.1 Advanced www.i3-learning.com...
  • Page 19 5.6.2 Function explanation Item Variable range Default Explanation H-Pos 0--100 For this option, you’d better not adjust it manually, use Auto func- tion, then the system will automatically adjust it to be at optimum V-Pos 0--100 value. Clock 0--100 Phase 0--100 Auto If signal is lost after entering this menu, it will close the menu auto-...
  • Page 20 If it is Zoom menu, then change the options of Zoom, or, it is used to open Zoom menu MENU Exit from Zoom menu, open main menu EXIT Exit from Zoom menu No operation for 3 seconds, then exit from Zoom menu www.i3-learning.com...
  • Page 21 5.8.5 CCD Key’s functions: Function If it is CCD menu, then change the options of CCD, or, it is used to open CCD menu MENU Exit from CCD menu, open main menu EXIT Exit from CCD menu No operation for 3 seconds, then exit from CCD menu 5.8.6 Input Source Menu.
  • Page 22 2) Support hard disk, the maximum storage capacity is 400G 3) Folder in support of the greatest depth is 30 4) Only support single audio channel audio format and dual-audio channel audio format 5.9.2 Appearance 5.9.3 Non Movie 5.9.4 Music www.i3-learning.com...
  • Page 23 5.9.5 Photo 5.9.6 Movie 5.9.7 Operation guide i3TOUCH V- SENSE 8403T10 - operations manual...
  • Page 24 Maximal files in one folder 1670 1670 Maximal folders in one partition No Limit Maximal files in one partition No Limit 65535 Maximal files in one partition No Limit 65535 The limitation is depend on the memory size allocated to file brow. www.i3-learning.com...

  • Page 25: Product Specification

    6.Product Specification 6.1 Specifications Panel Diagonal Size 84.04" / 213.5cm Panel resolution 3840 x 2160 Recommended resolution 3840 x 2160 120 Hz Brightness (nits) 350cd/m Contrast ratio 1600:1 (Typ.) Response time 5ms(Gray to Gray) Aspect ratio 16:9 Display colors 1.06B Colors Viewing angle horizontal / vertical 178º/178º...
  • Page 26 Touch Driver No need Electromagnetic Touch System PENTA-8440E Detection method Electormagnetic Sensor Touch tool Active Electromagnetic Pen Accuracy ±0.1mm Response time <5ms Interface USB 2.0 HID compliant,PNP Supported OS Windows XP / Vista / 7 / 8 / MAC www.i3-learning.com...
  • Page 27 Muti Touch Function Touch Driver No need Product accessories Included Power cable RGB cable HDMI - HDMI cable Remocon + Battery Table stand Built-in User Manual Product accessories Optional Component Cable Optional Wall Mounting(Fixed type) Optional Wall Mounting(Sliding type) Optional Speakers(Optional) 8W x 2EA 6.2 OPS Specifications(Optional)
  • Page 28 1x mini-PCIexpress socket with SIM-Card reader Environment Specification Operating Operating: -5°C to +45°C Temperature Storage: -20°C~80°C Certification FCC/CE Class A RoHS AHA DOC Ordering Information AOPS-7080 OPS, onboard Intel Core i5-4400E Processor Note: Product design and features without prior notice may be changed. www.i3-learning.com...

  • Page 29: Product Dimensions

    7. Product Dimensions 7.1 LED Dimensions i3TOUCH V- SENSE 8403T10 - operations manual...

  • Page 30: Troubleshooting

    » Check the volume level. If the volume is still too low after turning the control to its maximum, check the volume control on the computer sound card or software program. 8.2.3 PROBLEMS RELATED TO REMOTE CONTROL. 8.2.3.1 The remote control buttons do not respond. www.i3-learning.com...
  • Page 31 » Check the battery polarities(+/-). » Check if the batteries have been exhausted. » Check if the power is on. » Check if the power cord is securely connected. » Check if a special fluorescent or neon lamp is on in the vicinity. 9.
  • Page 32 Grand Rapids, MI 49503 5500 Middelfart 44866 Bochum Danmark Germany T +616-451-7800 T +45 64 41 04 90 T +49 (0) 2327 960 50-0 F +616-451-9698 F +45 64 41 17 47 F +49 (0) 2327 960 50-50 AUTHORISED RESELLER WWW.I3-LEARNING.COM INFO@I3-LEARNING.COM...
