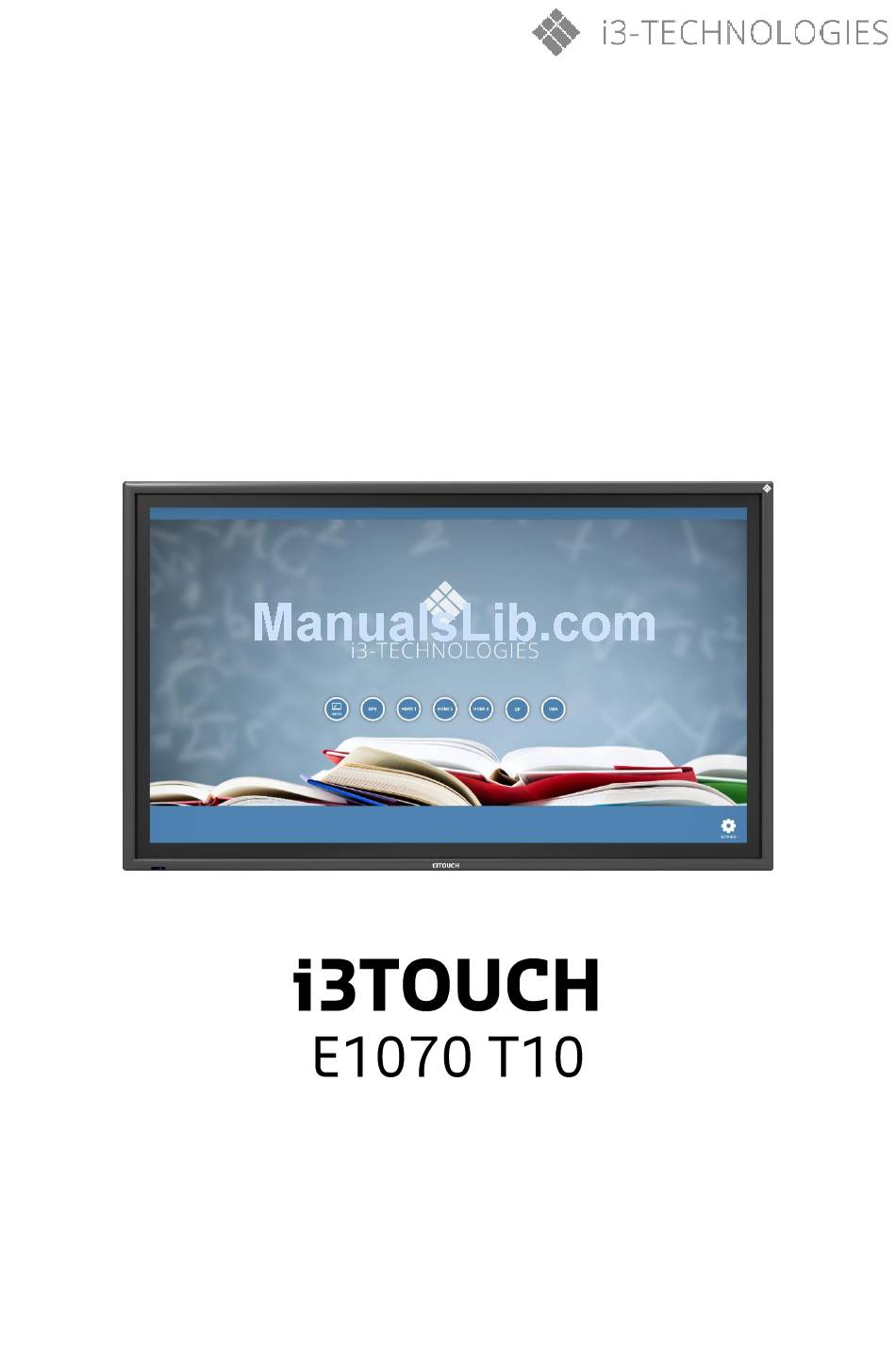

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
Contents 1. Important safety Instructions...……….………………………………………….….3 1.1 Safety precautions 1.2 Maintenance 2. Introduction...……………………..…………………………………………….…..8 3. Product Description..…..………………………………..…………………….…9 3.1 Front View 3.2 Rear View 4. PC Connection...……………..…..........…….………….…12 5. Remote Control..……………..………..……………………………..…………….13 6. Home Menu Description……..….….…………………….……..….…………...14 7. Android Setup Menu Description……..….….……….…….……..….…………...17 8. Product Specification..……..……………….……………………………...………26 9. Product Dimensions…..…….…..……….…………………………….………….28 10. -
Page 3: Important Safety Instructions
1. Important Safety Instructions ICON NAME MEANING Warning Failing to follow the precautions marked with this sign may result in a serious injury or even a fatality. Caution Failing to follow the precautions marked with this sign may result in a personal injury or property damage. Before operating the product, please read this manual carefully. - Page 4 1) Read Instructions 2) Follow Instructions All operating and use instructions should be followed. 3) Retain Instructions The safety and operating instructions should be retained for future reference. 4) Heed Warnings All warnings on the product and in the operating instructions should be adhered to. 5) Cleaning Disconnect the unit from the electricity supply before cleaning.
- Page 5 13) Lightning For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent possible damage to the product due to lightning and power-line surges. 14) Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits.
- Page 6 Products at the same time holding the products when building or product, do not hold the back of the handle. under the product makes. the handle is a secondary role. Table stand and put them on the table by using the installation gets the nose does not necessarily prevent a fall on the floor using the screws fixed.
-
Page 7: Care And Maintenance
1-2. Care and Maintenance External Surface and Screen Maintenance Clean the product with a soft dry cloth. • Avoid cleaning the product with an inflammable substance such as benzene or thinner or with a wet cloth. This may result in a problem with the product. •... -
Page 8: Introduction
2. Introduction 2-1. Package Contents ∙ Unpack the product and check if all of the following contents have been included. ∙ Store the packaging box in case you need to move the product later. ∙ If any items are missing, contact your dealer. ∙... -
Page 9: Front View
3. Each description 3.1 Front View ① ① Remote Sensor & Power Indicator When using the remote, aim it directly at this sensor. - Power ON mode: BLUE - Power OFF mode: RED - DPMS mode : RED/BLUE are blanked •... -
Page 10: Rear View
3.2 Rear View ② ④ ① ③ ① 7Keys Description Power ON / OFF Menu Display the main screen menu Source VGA, HDMI1, HDMI 2, EXT.COMPUTER Vol + Volume Up (Right) Vol - Volume Down (Left) ▲ Move Up ▼ Move Down Version 1.0... - Page 11 ② Interface Interface Description HDMI3 High Definition Multimedia Input- Up To Input USB For TOUCH External PC Using USB Touch Sensor Connection RS-232 Facility To Control The Screen Via RS232 Protocol AUDIO LINE OUT Earphone Or Audio Connection S/PDIF Optical Connector MINI YPBPR Component Connection MINI YPBPR AUDIO...
- Page 12 ④ Power Interface Description POWER Power on/off AC IN AC Power In AC OUT AC Power Out Version 1.0...
-
Page 13: Pc Connection
4. PC Connection 1) Connect RGB cable to RGB, Voice connection will be connected to PC AUDIO IN with stereo cable. 2) HDMI cable will be connected to (display and voice are available at the same time) 3) External speaker will be connected to R , L input with using Ø3.5 stereo cable and then connect same as below drawing. -
Page 14: Remote Control
Key Name Description 5. Remote Controller POWER Power ON/OFF. SOURCE Activates OSD menu of input source selecting. Navigates input source. HOME HDMI HDMI 1, HDMI 2, HDMI 3. Picture mode: Standard, Dynamic, Soft, User. Sound mode: Standard, Flat, Music, Movie. MENU Activates main OSD menu. -
Page 15: Home Menu Description
Shows the HDMI2 screen connected to the product. HDMI3 Shows the HDMI3 screen connected to the product. Shows the DP screen connected to the product. Shows the VGA screen connected to the product. SETTINGS To go i3TOUCH Setup Version 1.0... - Page 16 Dragging Home Menu If you drag the bottom of the screen upward, the hidden Home Menu pops up. With the Home Menu you can go to Brightness, Back, Home, Source, Volume. Version 1.0...
- Page 17 Brightness Back Home Source Volume Home Bar UI Description Brightness Adjust the brightness. Back Moves to the previous screen. Home Go to the home screen. Source Calls the external input window. Volume Adjust the volume. Version 1.0...
- Page 18 7. i3TOUCH Setup Menu Description 7.1 Menu Overview Select i3TOUCH SETTINGS then you can see the below menu screen ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① Network : to setup the Ethernet ② Picture : to setup the brightness, color, and contrast ③...
- Page 19 7.2 Network Ethernet Setting To set up the IP automatically by DHCP (Dynamic Host Configuration Protocol) or input the IP address manually in Static IP setting DHCP (Dynamic Host Configuration Protocol) To set up the IP automatically, select DHCP then “Getting IP” messages shows up and it automatically assigned the IP address.
- Page 20 Static IP To set up IP address manually by inputting fixed IP. (IP, Netmask, Gateway, DNS) Network State To check the current network status of this system. Ethernet, PPOE, WiFi If it is not connected any network, shows “Unconnected”and shows “Connected” when it connected to network.
- Page 21 7.3 Picture Backlight Mode : User can set the Backlight Mode .There are Standard, Energy save, Auto, and Custom Mode. Users can adjust each value in Custom Mode. • Backlight : (less) 0 to 100 (more) of the Backlight •...
- Page 22 7.4 Sound Sound Mode : User can set the Sound Mode .There are Movie, Meeting, Classroom, Custom Mode. Users can adjust each value in Custom Mode. • Bass : (less) 0 to 100 (more) of bass sound • Treble : (less) 0 to 100 (more) of treble sound •...
- Page 23 7.6 Advanced Advanced : to setup the advanced function. • Language : User can set the OSD menu language. • Input Method : User can set Keyboard type (AOSP and IME Type) • Sleep Off : User can set time to shut down automatically after setting time. (Off, 15, 30, 45, 60, 90, 120, 240 minutes) •...
- Page 24 7.7 Restore Restore : To reset the system • Restore user Setting: to reset to user setting • Restore Default : to reset factory setting Version 1.0...
- Page 25 7.8 System Info System Info : To check the system information (CPU, GPU, Memory, Android version) Version 1.0...
-
Page 26: Product Specification
8. Product Specification 8-1. LED Specification System Specifications Items Specification Infrared blocking Detection Method Touch detection method Touch tool / Reaction Hand or other solid object / 10 Points Window 7, 8, 10 / MAC 10.10 ~ 10.11 Supported OS Resolution (Pixel) 1920 x 1080 (FHD) Front Glass... - Page 27 Input / Output Description Items Features Quad-Core, 64 bit Cortex-A53 Hexa-core ARM Mali-450 , Dual-core VPU CPU Clock Speed 1.2GHz System 8GB Build in Emmc Flash Parameter SDRAM 2GB(2Gbit X 4) ; DDR3 ; 1866MHz Version 5.1.1 Android Kernel 3. 1. 10 Auto/16:9/14:9/4:3/ZOOM1/ZOOM2/Spectacle Display Format 5 Modes...
-
Page 28: Product Dimensions
9. Product Dimensions... -
Page 29: Troubleshooting
10. Troubleshooting 10-1. Product Self-Diagnosis ∙ You can check if the product is working properly using the Self-Diagnosis function. ∙ If a blank screen is displayed and the Power LED blinks even if the product and the PC are properly connected, perform the self-diagnosis function according to the procedures below.
