2000 Expedition/Navigator Workshop Manual
SECTION 303-01A: Engine — 4.6L and 5.4L
INSTALLATION
Cylinder Heads — 5.4L

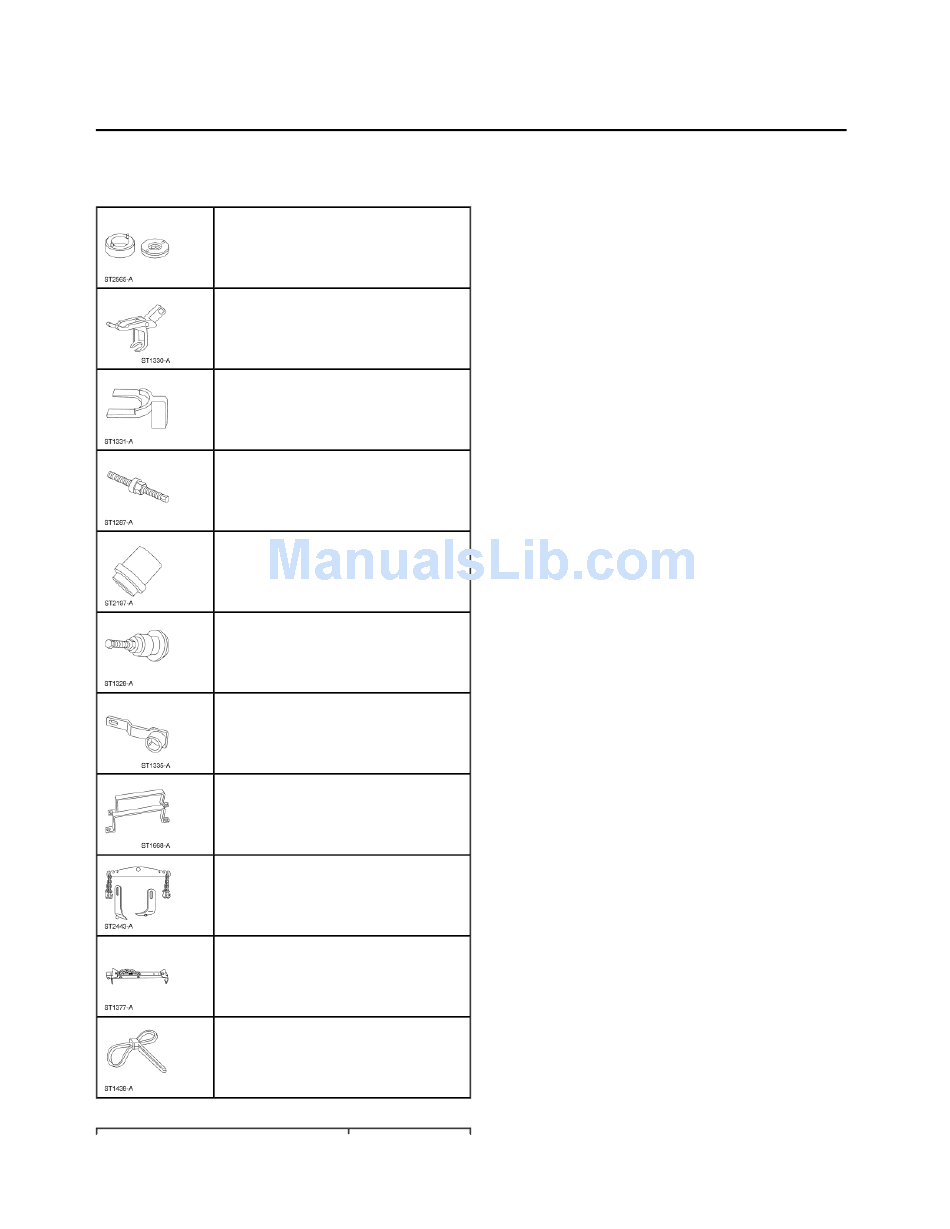

Special Tool(s)
Alignment Set, Camshaft
303-S568 (T96T-6256-AR)
Compressor, Valve Spring
303-567 (T97P-6565-AH)
Compressor Spacer, Valve Spring
303-382 (T91P-6565-AH)
Installer, Crankshaft Vibration Damper
303-102 (T74P-6316-B)
Installer, Crankshaft Front Oil Seal
303-635
Installer, Front Cover Oil Seal
303-335 (T88T-6701-A)
Holding Tool, Crankshaft
303-448 (T93P-6303-A)
Remover/Installer, Cylinder Head
303-572 (T97T-6000-A)
Lifting Bracket Set, Engine
303-DS086 (D93P-6001-A)
Modular Engine Lift Bracket
303-F047 (014-00073) or equivalent
Strap Wrench
303-D055 (D85L-6000-A)
Material
http://www.fordtechservice.dealerconnection.com/pubs/content/~WSYJ/~MUS~LEN/21/S...
Page 1 of 20
2000 Expedition/Navigator Workshop Manual
Procedure revision date: 10/19/2002
