PREPARATION

PREPARATION
PREPARATION PREPARATION

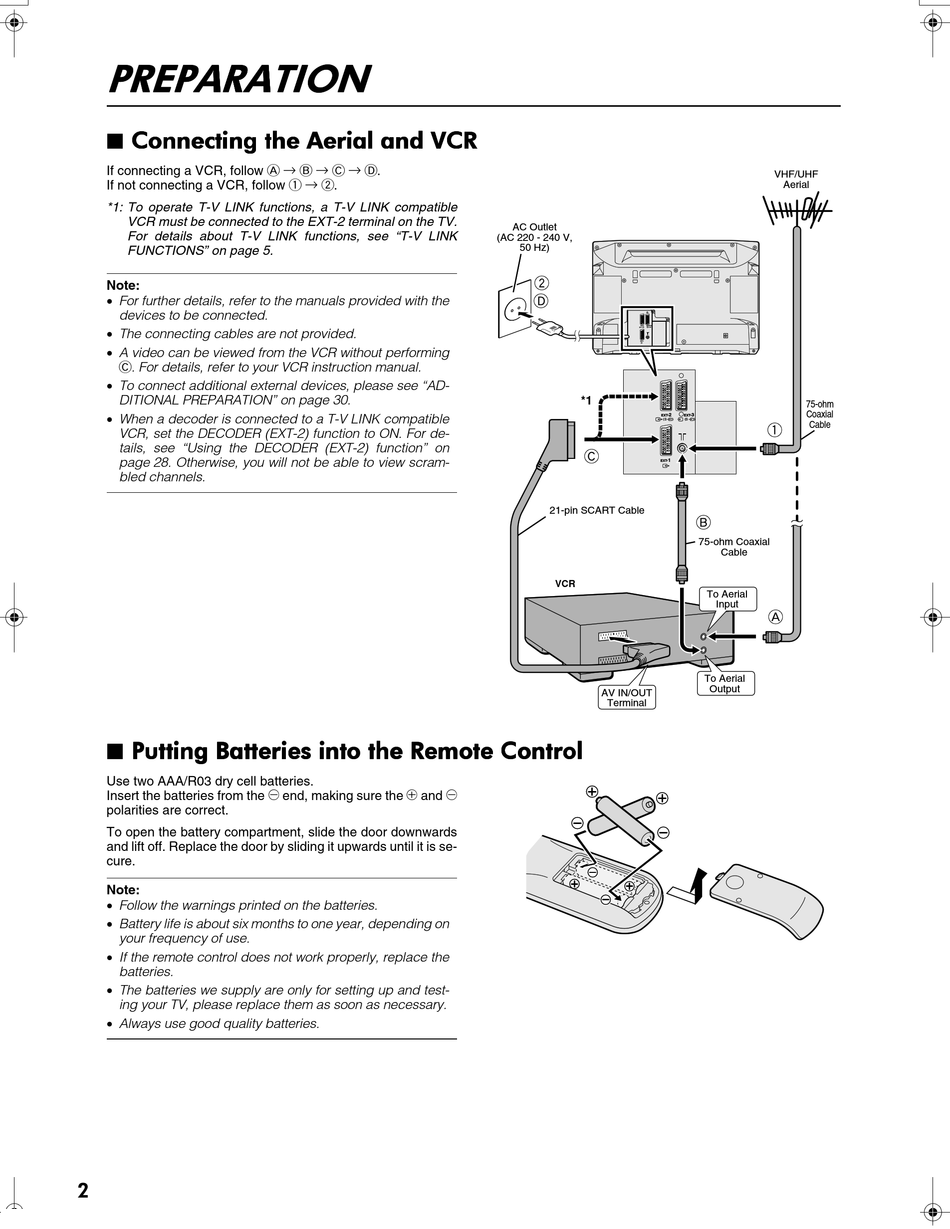

Connecting the Aerial and VCR Connecting the Aerial and VCR
Connecting the Aerial and VCR Connecting the Aerial and VCR
I I I I
If connecting a VCR, follow A → B → C → D .
If not connecting a VCR, follow 1 → 2 .
*1: To operate T-V LINK functions, a T-V LINK compatible
VCR must be connected to the EXT-2 terminal on the TV.
For details about T-V LINK functions, see "T-V LINK
FUNCTIONS" on page 5.
Note:
• For further details, refer to the manuals provided with the
devices to be connected.
• The connecting cables are not provided.
• A video can be viewed from the VCR without performing
C. For details, refer to your VCR instruction manual.
• To connect additional external devices, please see "AD-
DITIONAL PREPARATION" on page 30.
• When a decoder is connected to a T-V LINK compatible
VCR, set the DECODER (EXT-2) function to ON. For de-
tails, see "Using the DECODER (EXT-2) function" on
page 28. Otherwise, you will not be able to view scram-
bled channels.
Putting Batteries into the Remote Control Putting Batteries into the Remote Control
Putting Batteries into the Remote Control Putting Batteries into the Remote Control
I I I I
Use two AAA/R03 dry cell batteries.
Insert the batteries from the - end, making sure the + and -
polarities are correct.
To open the battery compartment, slide the door downwards
and lift off. Replace the door by sliding it upwards until it is se-
cure.
Note:
• Follow the warnings printed on the batteries.
• Battery life is about six months to one year, depending on
your frequency of use.
• If the remote control does not work properly, replace the
batteries.
• The batteries we supply are only for setting up and test-
ing your TV, please replace them as soon as necessary.
• Always use good quality batteries.
2
AC Outlet
(AC 220 - 240 V,
50 Hz)
EXT- 2
1
EXT-
*1
21-pin SCART Cable
VCR
AV IN/OUT
Terminal
VHF/UHF
Aerial
EXT- 3
2 3
EXT- EXT-
S S
1
EXT-
75-ohm Coaxial
Cable
To Aerial
Input
To Aerial
Output
75-ohm
Coaxial
Cable
