System Requirements

Pilot is designed to connect to a Logitek JetStream running DSP version 4.x. Contact Logitek
Electronic Systems or your reseller if you are unsure of compatibility, or are adding a Pilot surface
to a pre-existing Logitek facility.
System Architecture
Put simply, the Pilot surface is just a remote control panel for the JetStream. Unlike traditional
analog consoles, no audio passes through the Pilot or its faders (with the exception of the cue
speaker audio). The Pilot talks to the JetStream using the Logitek Command Protocol, with all audio
processing occurring inside the router.
The mixing, routing and processing of audio is not dependent upon the embedded PC included
with the JetNet Audio Networking Module. However, additional functionality, such as macro
buttons, scene snapshots, intercoms, delay control and software tools interface to the system using
the JetStream Server application that is bundled with the module.
Surfaces are remote
control panels for
Audio Engine
Surfaces
Console Surfaces
Control Panels
Console Surfaces
Control Panels
Serial Comms
Logitek Pilot Reference Manual
Audio Engines
process Audio and
GPI control events
Audio Engines Ethernet Switches
Jetstream
1
Jetstream
2
IP

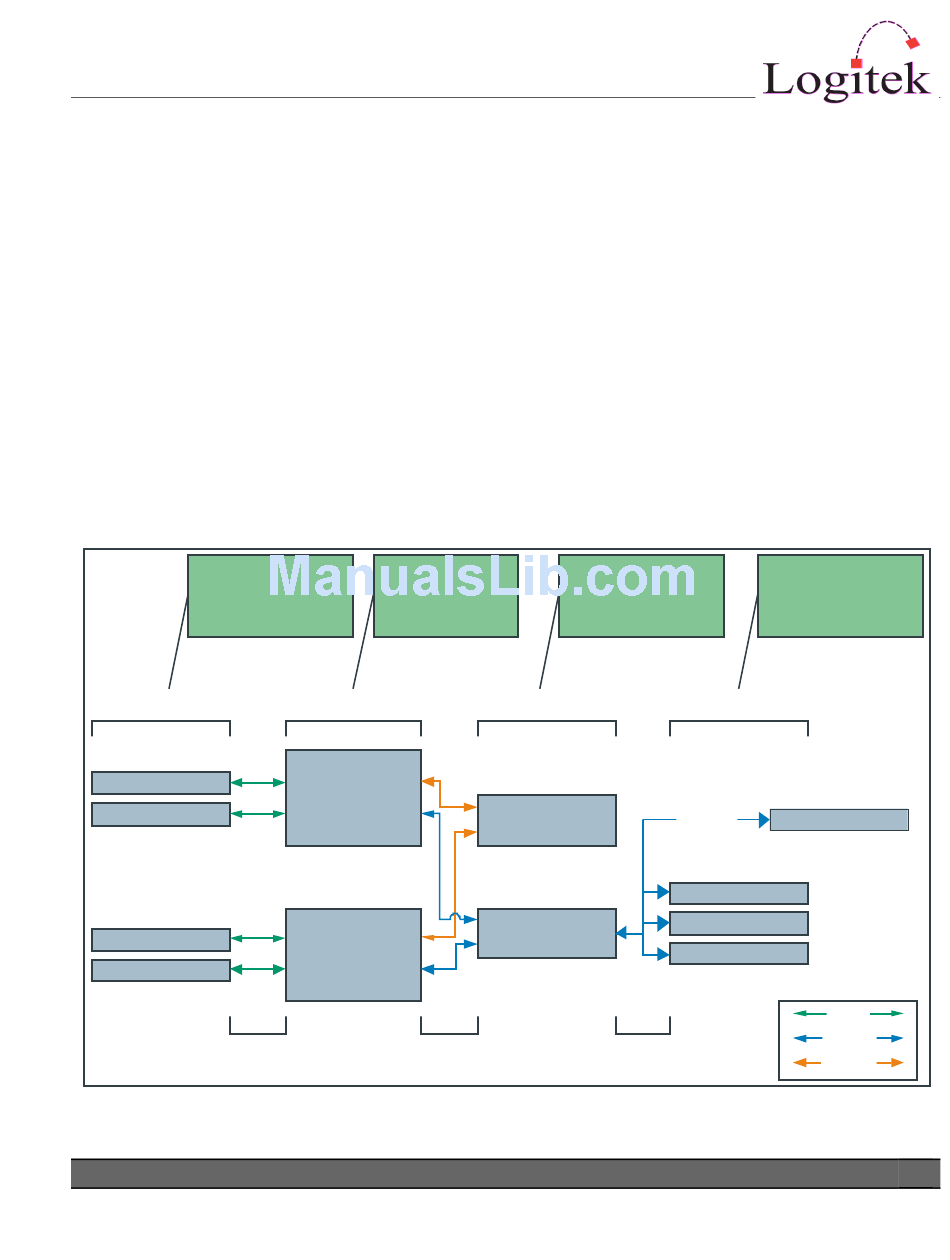

Figure 1 - Logitek System Architecture (v4.x)
Network switches
distribute audio,
control & sync
Audio
internet
Network
Software vTools
Business Software vTools
Network
Software vTools
TCP/IP
Software tools provide
remote control &
system maintenance
Client PCs
Remote Support
Serial
TCP/IP
UDP/IP
