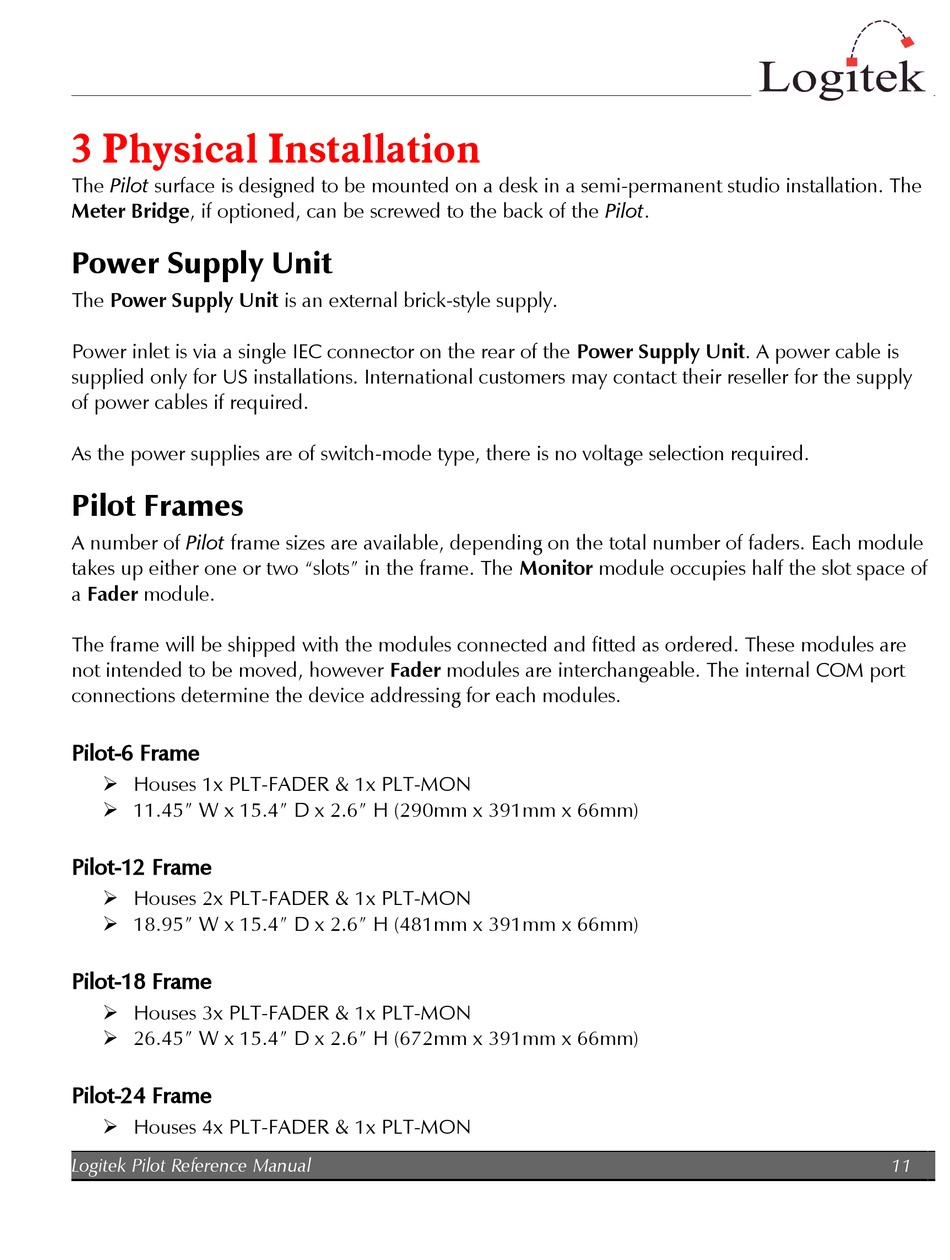

3 Physical Installation

The Pilot surface is designed to be mounted on a desk in a semi-permanent studio installation. The
Meter Bridge, if optioned, can be screwed to the back of the Pilot.
Power Supply Unit
The Power Supply Unit is an external brick-style supply.
Power inlet is via a single IEC connector on the rear of the Power Supply Unit. A power cable is
supplied only for US installations. International customers may contact their reseller for the supply
of power cables if required.
As the power supplies are of switch-mode type, there is no voltage selection required.
Pilot Frames
A number of Pilot frame sizes are available, depending on the total number of faders. Each module
takes up either one or two "slots" in the frame. The Monitor module occupies half the slot space of
a Fader module.
The frame will be shipped with the modules connected and fitted as ordered. These modules are
not intended to be moved, however Fader modules are interchangeable. The internal COM port
connections determine the device addressing for each modules.
Pilot-6 Frame
 Houses 1x PLT-FADER & 1x PLT-MON
 11.45" W x 15.4" D x 2.6" H (290mm x 391mm x 66mm)
Pilot-12 Frame
 Houses 2x PLT-FADER & 1x PLT-MON
 18.95" W x 15.4" D x 2.6" H (481mm x 391mm x 66mm)
Pilot-18 Frame
 Houses 3x PLT-FADER & 1x PLT-MON
 26.45" W x 15.4" D x 2.6" H (672mm x 391mm x 66mm)
Pilot-24 Frame
 Houses 4x PLT-FADER & 1x PLT-MON
