Logitek Pilot Reference Manual page 7

About Pilot
The Pilot control surface from Logitek Electronic Systems brings you the flexibility of a router based
audio console system with the look, feel and easy handling that novice operators will understand,
and experienced console operators will appreciate.
The Pilot offers full access to the sources available on Logitek's JetStream routers, along with simple
bus selection and intuitive monitor controls. The Pilot is not compatible with the Logitek Audio
Engine.
The Pilot surface can be configured with 6, 12, 18 or 24 Faders. There is also a Monitor Module
containing the Monitoring and Selection functions. The module types include:
 PLT-FADER
 PLT-MON
In addition, a Meter Bridge (PLT-MTR) is available.
The main frame is available in a number of different sizes to accommodate the variety of fader
numbers. The frame is designed to be mounted on a desk for semi-permanent installation, but as no
cutouts are required it can easily be relocated.
Logitek Pilot Reference Manual
6 Fader Module
Monitor Control Module

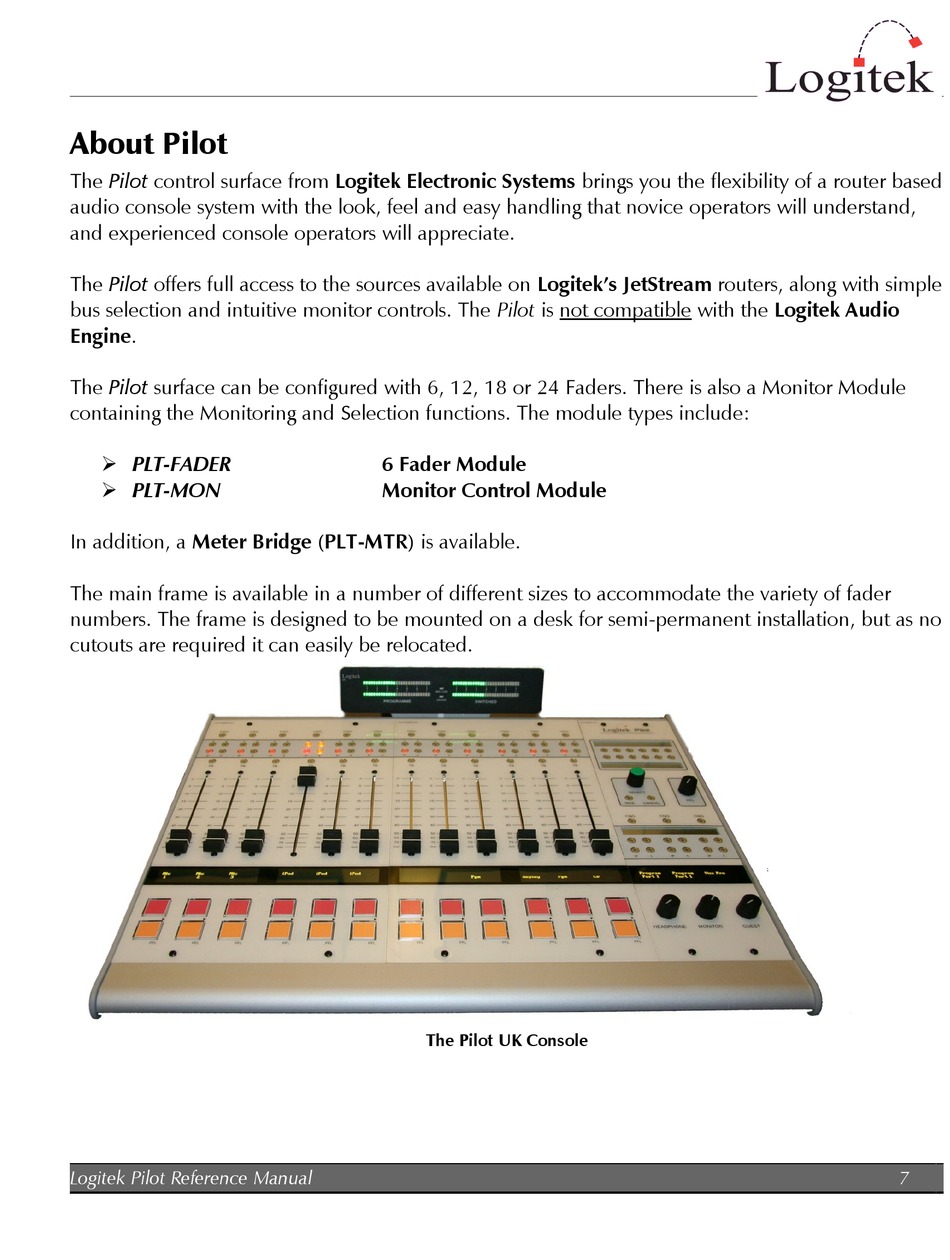

The Pilot UK Console
7
