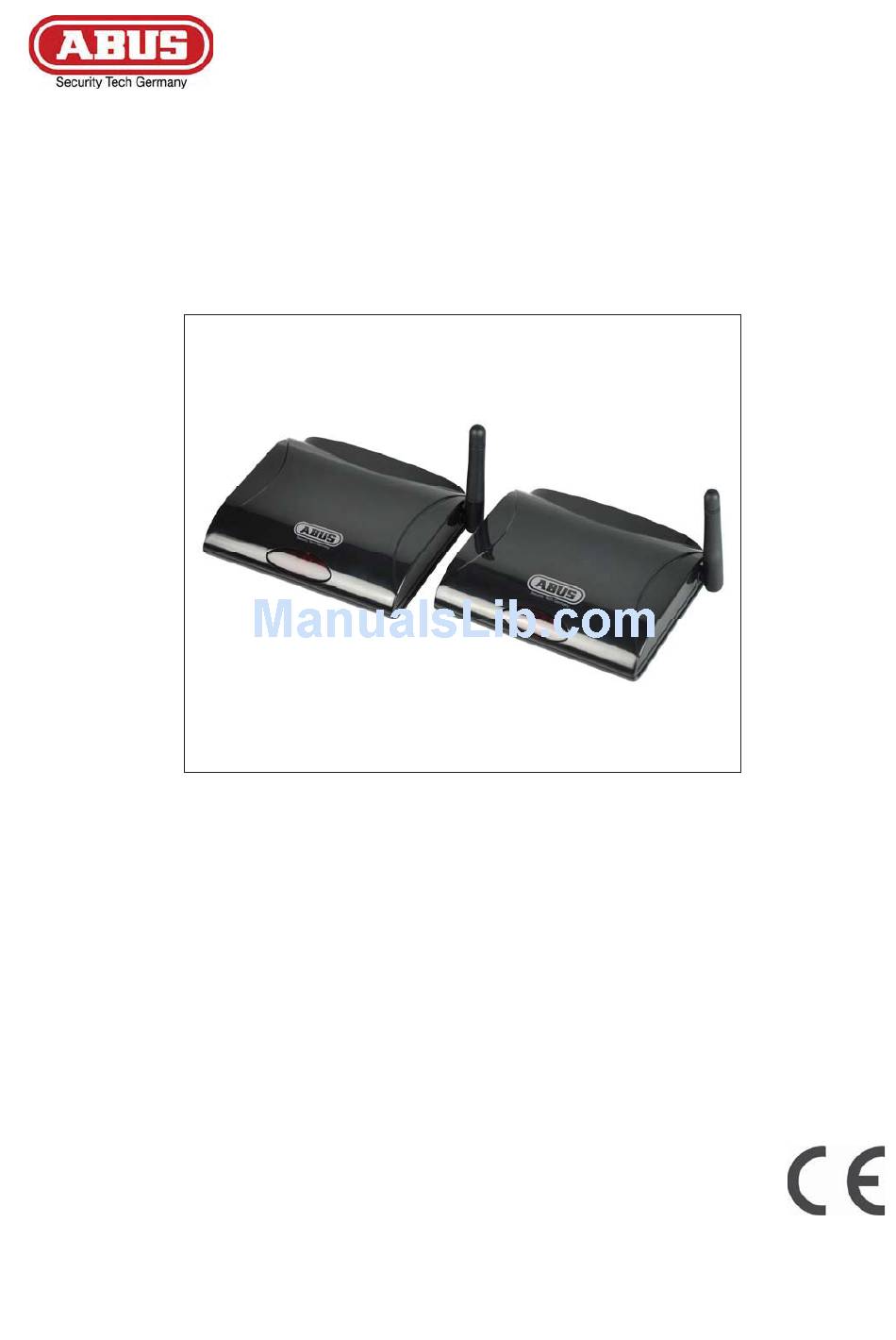

- Page 1 TVAC15100 User manual Version 06/2011 Original English user manual. Keep for future use.
- Page 2 The ABUS Security-Center GmbH assumes no liability for technical and typographical faults and reserves the right to make at any time modifications to the product or user manual without a previous announcement.
- Page 3 The warranty will expire for damage due to non-compliance with these operating instructions. ABUS will not be liable for any consequential loss! ABUS will not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions.
- Page 4 English Warnings Follow all safety and operating advises before starting-up the device! 1. Follow these directions in order to avoid damage of the power cord or plug: Do not modify or process the power cord or plug arbitrarily. Make sure to disconnect the power cord holding the plug. Keep heating appliances as far as possible from the power cord in order to prevent the cover vinyl from melting.
-
Page 5: Table Of Contents
English Table of contents Intended Use ............................16 Scope of delivery ..........................16 Features and functions ........................16 Description of the connections ......................17 4.1 Rear of the transmitter ......................... 17 4.2 Rear of the receiver ........................17 4.3 Cable connections ........................18 4.4 Video/audio signals on the jack plug .................... -
Page 6: Intended Use
English 1. Intended Use Using this 2.4 GHz digital transmission set, you can transmit video and audio signals wireless over medium to long distances without any problems. The video transmission set consists of a wireless transmitter and a wireless receiver. Wireless signal transmission is an advantage in all locations where cables cannot be laid. -
Page 7: Description Of The Connections
English 4. Description of the connections 4.1 Rear of the transmitter AV IN PAIRING DC IN 5 V /1 A Power supply 5 V DC/1 A (DC, 14.5 x 4.8 mm) AV input Input for the transmitted signal, use the AV cable supplied Pairing button Button for pairing the transmitter and receiver Power switch... -
Page 8: Cable Connections
English 4.3 Cable connections Yellow RCA connector (video) Connection for transmitting the video signal Red RCA connector (audio) Connection for transmitting the audio signal White RCA connector (audio) Connection for transmitting the audio signal To connect the video RCA plug to a BNC input or output on a camera, monitor or recorder, attach the BNC-RCA adapter to the yellow RCA plug. -
Page 9: Leds
English 4.5 LEDs Power LED Device status display Transmission/reception of an IR IR LED signal for a remote control Connection status display LINK LED Visual contact Description LED on LED flashing LED off Power LED Device switched on Device switched off LINK LED Connection established Connection being made... -
Page 10: Pairing The Transmitter And Receiver
English Connect a camera to the transmitter to establish wireless transmission of the signal to a recorder or monitor via the receiver. The IR sensor is located in the middle between the LEDs. Using the receiver, you have the possibility of transmitting the signals from a remote control to the transmitter. -
Page 11: Cleaning
7. Disposal Devices with this marking should not be put in the household garbage. Dispose of the product at the end of its lifetime according to the applicable regulations. 8. Technical data TVAC15100 TVAC15100 Model number Transmitter Receiver Frequency 2.4 GHz...
