Summary of Contents for Boss Audio Systems 638BA
-
Page 3: Table Of Contents

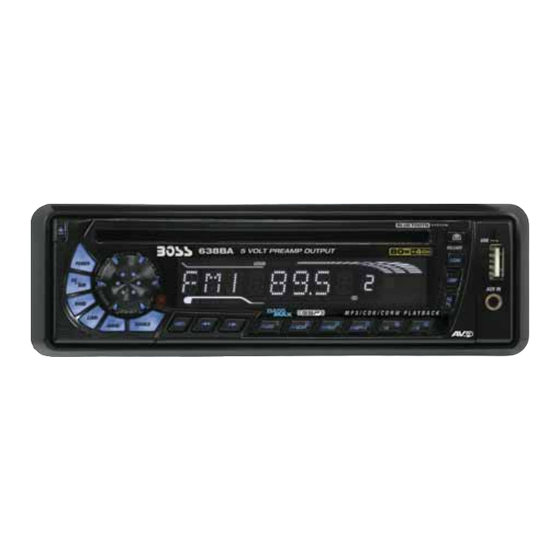

638BA MP3-Compatible AM/FM CD Receiver U S E R ’ S M A N U A L CONTENTS Installation DIN front-mount installation DIN rear-mount installation Removing the head unit Detaching the front panel Replacing the front panel General controls Radio controls... - Page 6 Before removing the bezel, press the RELEASE button to remove the front panel. press RELEASE to release Release Button the front panel...
- Page 7 press RELEASE to release Release Button the front panel...
-
Page 8: General Controls
Front panel controls GENERAL CONTROLS POWER Press any button to turn unit ON. To turn head unit off, press and hold POWER. RELEASE Press to release and remove the front panel. DISP Selects radio frequency or clock display. To set the clock: 1. -
Page 9: Radio Controls
RADIO CONTROLS AS/PS Select six strong stations and store them in current band. 1. Select a band (if needed) 2. Hold A/PS button for more than three seconds. The new stations replace stations already stored in that band. Preset Scan Scan stations stored in current band 1. -
Page 10: Audio Controls
Front panel controls AUDIO CONTROLS EQ Press repeatedly to cycle through five modes: POP M, ROCK M, CLASS, FLAT M or DSP OFF. SUB Press and hold to engage subwoofer output. LOUD Press this button to increase the level of bass output. AUX IN MUTE Press to silence the receiver. -
Page 11: Cd/Mp3 Playback Controls
CD/MP3 PLAYBACK CONTROLS EJECT Press to eject CD AUX IN +10 10 TRACK UP SELECT: TUNE/TRACK BUTTONS Press and release (In case of MP3 files) to advance to next track or to return to the beginning of the current track (track -10 10 TRACK DOWN SELECT: number will be displayed). -
Page 12: Controls Behind Faceplate
Front panel controls How to select MP3 files Searching Track: • Press “AS/PS”, then search track is activated. • Press “AUDIO” button, then the first digit will flash. • Rotary “VOL knob to right or left”, select first digit desired. •... -
Page 13: Usb And Front Side Aux In Operations
USB and front side AUX IN operations USB Port Enhanced control of connected Portable Media such as “iPod**”, Flash Drives and digital MP3 Players, by using function keys on the main unit or the remote control unit. This unit features the latest ID3 Tag support, which allows you to see the song’s name and which folder it’s located in, on the LCD display. - Page 14 Remote controls functions POWER Use to turn the CD receiver ON or OFF SEL Turning the VOL knob Right or Left, you can adjust VOL/BASS/TREB/BAL/FAD. To select other functions, press the SEL button shortly until the desired functions is shown on the display. VOLUME Use to increase or decrease volume level.
-
Page 15: How To Use Bluetooth In Your Car Audio
How to use Bluetooth in your Car Audio You need to connect your mobile phone and car audio by pairing. A. Press (+) button in Bluetooth Remote Box longer than 6 seconds. The LED in Remote Box will blink fast. This mode is Pairing mode stage. Note: To deactivate Pairing, Press (+) again longer than 3 seconds. -
Page 16: Electrical Connections
Electrical connections LINE OUT (FRONT) ISO CONNECTOR L (WHITE) R (RED) LINE OUT ANTENNA (REAR) L (WHITE) R (RED) CONNECTOR LINE IN SUB WOOFER L (WHITE) R (RED) BLUETOOTH POWER ANTENNA MICROPHONE BLUE/WHITE ISO A/B PLUG BLACK AMP TURN BLUE GROUND (–) ON LED YELLOW... - Page 18 Specifications 638BA MP3-Compatible AM/FM CD Receiver CD/MP3 PLAYER Signal to Noise Ratio > 60dB Channel Separation > 45 dB Frequency Response 20Hz - 20 kHz RADIO FM Section: Frequency range 87.5-107.9 MHz Intermediate frequency 10.7 MHz Sensitivity 3 μV Stereo separation...
