Summary of Contents for Boss Audio Systems 628UA
-
Page 2: Table Of Contents
CONTENTS Precautions..............................1 ..........................1 Lithium Battery Cell Warnings Use Caution s ............................1 Installation ..............................2 Installation Procedures .......................... 2 Installation Opening..........................2 Wiring Connections ..........................3 Uninstall the Main Unit ........................... 3 Control Panel Button Locations ........................4 Operation .............................. -
Page 3: Precautions
PRECAUTIONS Lithium Battery Cell Warnings • Cell leakage may cause damage to the remote control. • Do not throw cells into as this may cause an explosion. • Keep battery cells out of reach of children. Use cautions • • Some MP3/WMA files may not be playable. -
Page 4: Installation
INSTALLATION Installation Procedures First complete the electrical connections and then check for correctness. Installation Opening 2.05 inch 7.20 inch MOUNTING SLEEVE This unit can be installed in any dashboard Having an opening as shown above . Insert mounting collar into the dashboard and bend the mounting tabs out with a screwdriver. -
Page 5: Wiring Connections
INSTALLATION(CONT.) - Only use speakers with 4 ohms impedance. - Do not attach the control panel to the chassis before wiring is complete. - The maximum current of the auto antenna is 200mA. Wiring Connections WIRING DIAGRAM Purple + Fuse Rear Right Speaker Power B+ (Yellow) Purple/Black -... -
Page 6: Control Panel Button Locations

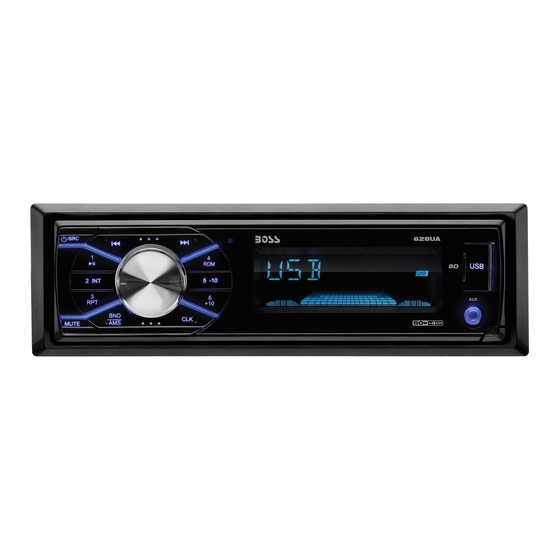

CONTROL PANEL BUTTON LOCATIONS 628UA /SRC 2 INT 5 -10 MUTE REMOVE PANEL RESET OPERATION 1.POWER/SRC to turn off the unit. RADIO,USB&CARD , AUX IN,modes (if there are USB and SD card inside the unit). radio and Aux. When the user... -
Page 7: Adjust Menu Options (Src)
OPERATION 8. CLK Press the CLK button once to display the real time, With time appearing on the display.Press and hold CLK button for more than 2 seconds until the time flashes. You can adjust the HOUR and MINUTE by pressing the button and button respectively and press the CLK button to switch the HOUR and... -
Page 8: 14. Mute
OPERATION 14. MUTE flash on the LCD 15. USB PORT 16. AUX IN JACK 18. RESET To reset all parameters to factory default values. Press the button to flip down the control panel form the head unit and remove the control panel,then use a subject with a sharp point end to thrush the RESET hole. -
Page 9: Remote Control
REMOTE CONTROL Button Names and Locations Power button MUTE button CLK (clock) button LOUD (loudness) button AMS (automatic music search) button PREV (previous) button EQ (equalizer) button SRC (source) button RPT (repeat) or 3 button 10. INT (intro) or 2 button 11. -
Page 10: Troubleshooting
TROUBLESHOOTING A lot of static in broadcast Connect the battery cable to the terminal that is always live. -
Page 11: Specifications
SPECIFICATIONS General Power supply Requirement : DC 12V Maximum power output : 50W X 4CH Speaker impedance : 4 - 8 Ohm Unit Dimensions(WxHxD) : 7.0 X 2.0 X 3.8 inch Weight : 1.54 Lb (0.7 kg) Fuse : 15 A RADIO Frequency Range USA / EUROPE: 87.5 MHz - 107.9 MHz / 87.5 MHz - 108.0MHz...
