  • Page 2: Table Of Contents

    CONTENTS Precautions..............................1 Safe Notes..............................1 Accessories............................1 How To Handle Discs..........................1 Lithium Battery Cell Warnings........................1 Installation..............................2-3 Prepare Radio............................2 Mount Radio............................2 Wiring Connections..........................3 Removal Of The Main Unit........................3 Control Panel Button Locations......................4 Gerneral Operations..........................5 Turn Unit On/Off............................5 Adjust Volume(VOL)..........................5 Adjust Menu Options (SEL)........................5 Change The Source (SRC)........................5 2 Zone Function (Zone A / Zone B)......................5 Setting The Clock (CLK).........................5...

  • Page 3: Precautions

    PRECAUTIONS Safe Notes To avoid the risk of accident and the potential violation of applicable laws, the driver should never view video or operate this DVD player while the vehicle is moving. The DVD video functions will only view or operate when vehicle is in park and the parking brake is engaged.

  • Page 4: Installation

    INSTALLATION Prepare Radio Before you begin, disconnect the battery negative terminal. Remove the transport screws. Remove chassis from the mounting sleeve. BRACKET KEY PLASTIC TRIM OUT BRACKET KEY If you want to remove the chassis from the mounting sleeve, remove the plastic trim out from both sides.

  • Page 5: Wiring Connections

    INSTALLATION (CONT.) INSTALLATION DIAGRAM DASH BOARD HEX NUT METAL MOUNTING STRAP SPRING WASHER CONSOLE PLAIN WASHER TAPPING SCREW MOUNTING SLEEVE HEX BOLT - Only use speakers with 4 ohm impedance. - The maximum current of the Amp Remote trigger is 200mA. Wiring Connections WIRING DIAGRAM CAUTION...

  • Page 6: Control Panel Button Locations

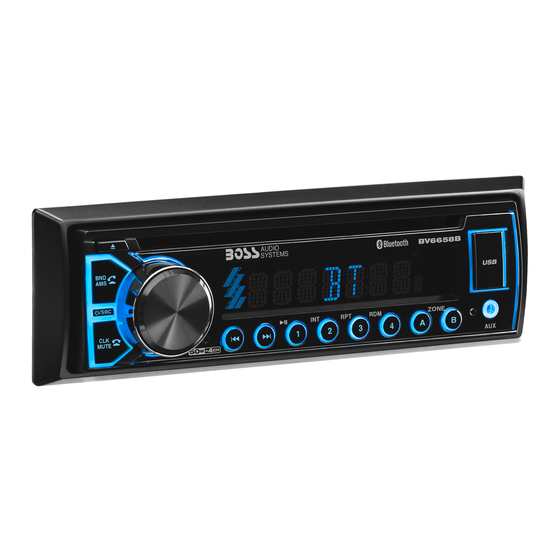

    CONTROL PANEL BUTTON LOCATIONS (power) / SRC (source) button SEL (select/menu) button and VOL (volume) knob BAND/AMS(automatic store station, automatic music search) (answer call) button (pause/play), Preset station 1 button INT (intro), Preset station 2 button RPT (repeat), Preset station 3 button RDM (random), Preset station 4 button -10(previous 10 tracks), previous folder, Zone A (Front Speaker) button 9.

  • Page 7: Gerneral Operations

    GENERAL OPERATION Turn Unit On/Off Press the power ( ) /SRC button to turn on the unit. Press and hold it to turn off the unit. Press the power ( ) button on the remote control to turn the unit on or off. Adjust Volume (VOL) Rotate the VOL knob on the front panel or press the VOL+/- button on the remote control to increase or decrease the volume level.

  • Page 8: Radio Operation

    RADIO OPERATION Switch Between US and EU Frequency In radio mode, press and hold the VOL button to select the AREA EU/US, then rotate it to switch between US (USA) and EU (Europe) frequency. The system will change the frequency setting in about 3 seconds.

  • Page 9: Dvd/Cd/Mp3/Usb Operation

    DVD/CD/MP3/USB OPERATION Insert Disc/USB Label Surface Up • To play on a disc, insert a disc with the label surface up into the disc slot. Playback will begin automatically. • To play on a USB device, open the USB port cover and insert the USB storage device into the USB port.

  • Page 10: Repeat Playback

    DVD/CD/MP3/USB OPERATION Repeat Playback • During DVD playback, press the RPT button to toggle between RPT CHP(repeat chapter), RPT TIT(repeat title), RPT ALL(repeat all) . • During VCD playback, press the RPT button to toggle between RPT ONE(Continuously repeats current track), RPT ALL(repeats all tracks). •...

  • Page 11: Multi-Angle View

    DVD/CD/MP3/USB OPERATION Multi-Angle View In DVD playback, press this button repeatedly to switch the viewing angle if the DVD disc is recorded with multi-angles. Note: The number of angles is different according to the disc. The function only work for discs having scenes recorded at different angles. Multi-Subtitle In DVD playback, press this button repeatedly to switch the language of subtitle if the DVD disc is recorded with multi-subtitles.

  • Page 12: Bluetooth Operation

    To begin pairing, enable BT mode on your mobile phone. 2. When the phone the car audio system, the BOSS BV6658B name will be displayed. 3. Choose the BOSS BV6658B from the device list to pair and connect with the car audio system. Upon the BT logo will stop 4.

  • Page 13: Remote Control

    REMOTE CONTROL Button Names and Locations (Power on/off) button Press once to turn on the unit, press again to switch off the unit. 2. MODE(Source) button Press the button to select different modes: RADIO/DISC/ USB/AUX IN/BT(Bluetooth). 3. Band button, SYS(PAL/NTSC System) In radio mode, press this button to select band.
  • Page 14 REMOTE CONTROL (CONT.) Button Names and Locations In BT mode, press this button to anser a call, make a call or redial the last dialed phone. 14. OSD(On Screen Display), (Reject or End a call) button In DVD/VCD playback, press this button repeatedly to show information such as Title number, Chapter number, Track number, elapsed time, remain time etc.
  • Page 15 REMOTE CONTROL (CONT.) Button Names and Locations 30/34. VOL+(Volume Increase), VOL-(Volume Decrease) Press VOL+ or VOL- button to increase or decrease volume level. 32. SELECT(Audio/Function Settings) button Press this button to choose aud and function items or confirm the your settings. 33.

  • Page 16: Setup Operation

    SETUP OPERATION In DVD/VCD playback, press the SETUP button on the remote control to enter the system setup. for this unit. The system setup page will be visible on the connected monitor. A. SYSTEM SETUP 1. TV SYSTEM TV SYSTEM NTSC This DVD player is compatible with playing discs recorded in either VIDEO...
  • Page 17 SETUP OPERATION C. AUDIO SETUP This is to select key up and down according to your needs. D. VIDEO SETUP This is to let the user set Brightness, Contrast, Hue, Saturation and Sharpness using the cursor keys( ) and ENTER button BRIGHTNESS on the remote control.

  • Page 18: Specifications

    SPECIFICATIONS General Power Supply Requirement ................... DC 12V Current Consumption ....................15A MAX Maximum Power Output ...................50W x 4CH Radio USA/Europe............... 87.5 MHz - 107.9 MHz/87.5 - 108.0 MHz Usable Sensitivity ......................30 dBu I.F. Frequency ......................10.7 MHz USA/Europe..............530 KHz - 1710 KHz/522 - 1620 KHz Usable Sensitivity ......................20 dBu I.F.

  • Page 19: Troubleshooting

    TROUBLESHOOTING Symptom Cause Solution No Power Car ignition not on Switch ignition key to “ACC” Fuse blown Replace fuse Disc cannot be loaded Another disc is already in the Eject disc and insert new player Disc cannot be read Disc was inserted upside Insert disc with label facing down upward...
